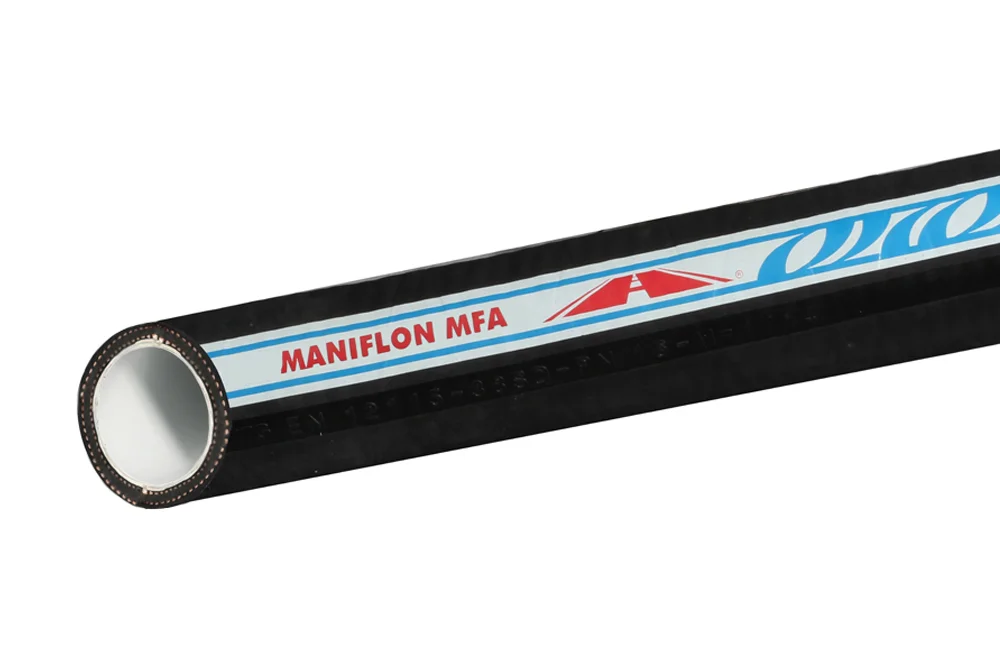

Hose suction-delivery for aggressive substances chemical MANIFLON
The highest quality hose suction-delivery, intended for conveying aggressive substances chemical, solvents and concentrated chemicals, characterized by high strength thermal and mechanical and highest cleanliness layer internal. Layer inner with white polymer perfluoroalkoxy MFA (polymer fluorine o properties close for PTFE), mirror smooth (prevents deposition medium on walls and is easy in maintaining purity), free of odour and taste, meeting high requirements hygienic (FDA, USP, European EU). layer intermediate with rubber synthetic, contain Reinforcement with cord synthetic, spiral with wire steel. outer Layer with rubber EPDM, antistatic (R 6 Ω ), resistant to abrasion, ozone and conditions atmospheric. hose is characterized excellent resistance chemical and cleanliness MFA, impermeability, resistance to temperature, oxidation and stresses mechanical. Widely used in industry chemical Due to total resistance to action greater substances chemical. appropriate for conveying concentrated acids and alkalis (acid sulfuric, hydrochloric, phosphoric, nitric, lye sodium, potassium etc.). resistant to rigorous conditions cleaning method Cleaning-in-Place (CIP). On special order version M according to EN 12115 with built-in two cables copper ensuring discharge charges electric. standards and requirements: hoses chemical: EN 12115:2011 (type Ω). industry food, contact with food: 1935/2004/EC, 2023/2006/EC (GMP); Inner layer: 10/2011/EU, USP CLASS VI, FDA 21 CFR 177.1550 (e-and); ISO 10993. Contains no plasticisers, phthalates or substances of animal origin. assembly: should use fittings with spigot (“tail” for hose) smooth, not having sharp or high barbs, which could po clamping cut or damage layer inner with MFA. The spigot diameter should be precisely matched to the hose diameter to ensure tightness. Assembly with clamping ferrules or shell clamps. Confirmation of resistance and application conditions requires contact with Tubes International. Inner layer: white polymer MFA. Reinforcement: cord synthetic, steel spiral. Outer layer: black EPDM rubber. Working pressure: 16 bar. Operating temperature: od -50°C up to +170°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
The highest quality hose suction-delivery, intended for conveying aggressive substances chemical, solvents and concentrated chemicals, characterized by high strength thermal and mechanical and highest cleanliness layer internal. Layer inner with white polymer perfluoroalkoxy MFA (polymer fluorine o properties close for PTFE), mirror smooth (prevents deposition medium on walls and is easy in maintaining purity), free of odour and taste, meeting high requirements hygienic (FDA, USP, European EU). layer intermediate with rubber synthetic, contain Reinforcement with cord synthetic, spiral with wire steel. outer Layer with rubber EPDM, antistatic (R 6 Ω ), resistant to abrasion, ozone and conditions atmospheric. hose is characterized excellent resistance chemical and cleanliness MFA, impermeability, resistance to temperature, oxidation and stresses mechanical. Widely used in industry chemical Due to total resistance to action greater substances chemical. appropriate for conveying concentrated acids and alkalis (acid sulfuric, hydrochloric, phosphoric, nitric, lye sodium, potassium etc.). resistant to rigorous conditions cleaning method Cleaning-in-Place (CIP). On special order version M according to EN 12115 with built-in two cables copper ensuring discharge charges electric. standards and requirements: hoses chemical: EN 12115:2011 (type Ω). industry food, contact with food: 1935/2004/EC, 2023/2006/EC (GMP); Inner layer: 10/2011/EU, USP CLASS VI, FDA 21 CFR 177.1550 (e-and); ISO 10993. Contains no plasticisers, phthalates or substances of animal origin. assembly: should use fittings with spigot (“tail” for hose) smooth, not having sharp or high barbs, which could po clamping cut or damage layer inner with MFA. The spigot diameter should be precisely matched to the hose diameter to ensure tightness. Assembly with clamping ferrules or shell clamps. Confirmation of resistance and application conditions requires contact with Tubes International. Inner layer: white polymer MFA. Reinforcement: cord synthetic, steel spiral. Outer layer: black EPDM rubber. Working pressure: 16 bar. Operating temperature: od -50°C up to +170°C.
Additional information
| Material | PFA/MFA/FEP – fluoropolymer |
|---|---|
| Maximum operating temperature [°C] | 170 |
| Minimum operating temperature [°C] | -50 |
| Vacuum resistance | yes |
| Standard length [m] | 20, 30 |
| Reinforcement | steel spiral, synthetic cover |
