Is the R45 Side Plug Manifold with Male Thread compatible with both air and vacuum systems up to 12 bar and between -20°C and +60°C?

Yes. The R45 Side Plug Manifold with Male Thread is compatible with both air and vacuum systems, supports a working pressure up to 12 bar, and operates reliably within the temperature range of -20°C to +60°C. It features durable plastic construction, repeated assembly/disassembly without loss of seal integrity, and high-quality NBR sealing for dependable leak protection.

Can the R45 Side Plug Manifold with Male Thread be used with different sealing materials if NBR is unsuitable for certain chemicals or oils?

R45 Side Plug Manifold with Male Thread ships standard with NBR (nitrile) seals, which are excellent for general pneumatic and vacuum applications but have chemical limitations (poor resistance to some oils, fuels, ketones, strong acids/alkalis and certain solvents). If NBR is unsuitable for the specific chemicals or oils in your system, you should not use the manifold without replacing the sealing material. The plastic body and male thread are generally compatible with alternative elastomers, but compatibility depends on the replacement material and operating conditions (temperature, pressure, media). Recommended steps: - Identify the chemicals/oils and their concentrations and operating temperature. - Choose a compatible seal material (e.g., FKM/Viton for many oils and fuels, EPDM for hot water/steam and some chemicals, PTFE for broad chemical resistance) based on chemical compatibility charts. - Confirm seal dimensions and form factor match the R45 manifold’s sealing groove or consult the manufacturer for approved alternatives. - If in doubt, ask the supplier or test the chosen seal in controlled conditions before full deployment. In summary: Yes, the R45 Side Plug Manifold with Male Thread can be used with different seals if NBR is unsuitable, but only after selecting a chemically compatible material and verifying fit and performance.

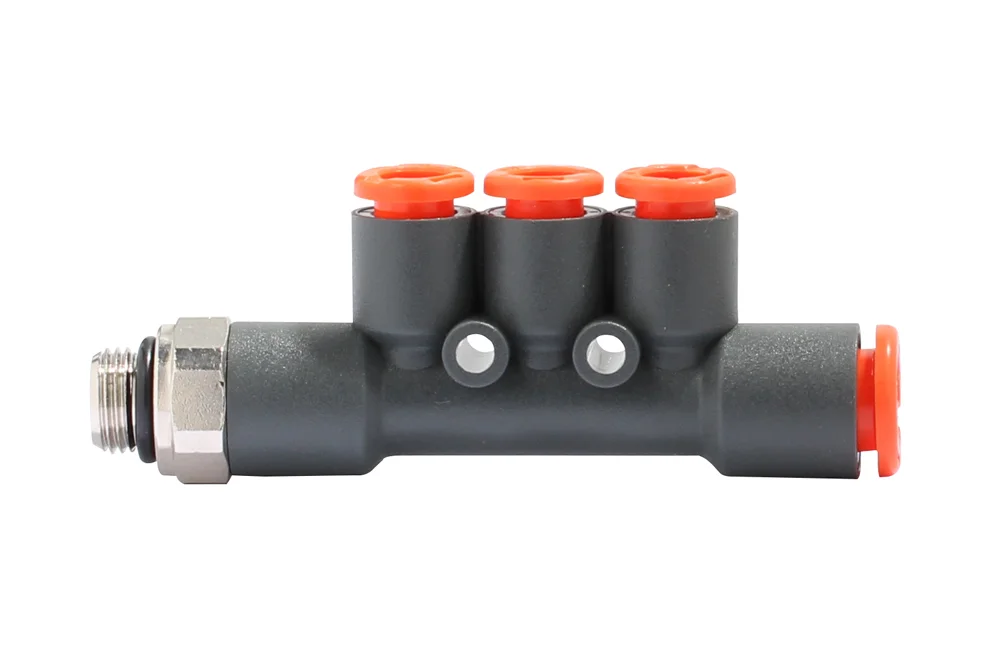

Directional valve plug-in side with thread external, type R45

All products, Push-in fittings/

Additional information

Material	P – material (plastic)

Directional valve plug-in side with thread external, type R45, intended for connections lines and other element in systems pneumatic. easy and fast in use for repeated mounting without loss tightness po side mechanical and pneumatic. Material: plastic plastic. Working pressure: 12 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +60°C. sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2L45001	Fitting rozdz. side adjustable RL45, hose 6 mm / 3 x hose 4 mm / 1/8" BSP male, plastic	-	12	In stock	Enquiry
MW-2L45002	Fitting rozdz. side adjustable RL45, hose 6 mm / 3 x hose 4 mm / 1/4" BSP male, plastic	-	12	In stock	Enquiry
MW-2L45007	Fitting rozdz. side adjustable RL45, hose 8 mm / 3 x hose 6 mm / 1/8" BSP male, plastic	-	12	In stock	Enquiry
MW-2L45008	Fitting rozdz. side adjustable RL45, hose 8 mm / 3 x hose 6 mm / 1/4" BSP male, plastic	-	12	In stock	Enquiry
MW-2L45009	Fitting rozdz. side adjustable RL45, hose 8 mm / 3 x hose 6 mm / 3/8" BSP male, plastic	-	12	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Directional valve plug-in side with thread external, type R45, intended for connections lines and other element in systems pneumatic. easy and fast in use for repeated mounting without loss tightness po side mechanical and pneumatic. Material: plastic plastic. Working pressure: 12 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +60°C. sealing: NBR.
