Can the Measuring Connector with Straight Female Thread and Hose End be supplied in AISI 316 stainless steel, and how does its corrosion resistance compare to the zinc-nickel coated steel version?

Yes. The Measuring Connector with Straight Female Thread and Hose End is available in AISI 316 stainless steel. Compared to the zinc‑nickel coated steel version, AISI 316 offers superior corrosion resistance—especially in aggressive or chloride‑rich environments (marine, saline, chemical exposure). While the zinc‑nickel coating provides durable protection and good performance in many industrial settings, it can eventually degrade under prolonged corrosive attack; AISI 316, being inherently corrosion‑resistant, delivers longer‑term protection and reduced maintenance risk. Both materials retain the connector’s mechanical ratings (up to 500 or 630 bar depending on size) and the −30°C to +100°C operating range, but choose AISI 316 when maximum corrosion resistance and longevity are required.

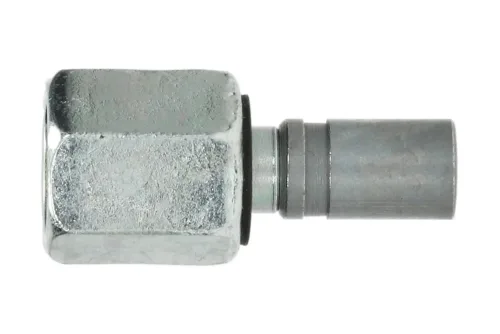

Measuring Connector with Straight Female Thread and Hose End

Additional information

Material	CS – steel (cast iron)

The measurement connection is designed for maximum reliability and flexibility, featuring internal threads M16x2 (ISO 1517-2), M16x1.5 or S12.65×1.5, combined with a secure hose connection for precise measurement applications. Delivered as a complete set with a robust clamping sleeve, it ensures quick installation and dependable performance even under demanding conditions. Manufactured either from high-grade steel with a durable zinc-nickel coating or from corrosion-resistant AISI 316 stainless steel, the component guarantees long-lasting protection against wear and environmental influences. With an impressive working pressure capacity of up to 500 bar or 630 bar, depending on the chosen size, and an operating temperature range from -30°C to +100°C, this solution is ideally suited for high-pressure hydraulic systems, industrial machinery, and mobile equipment. Its premium construction and versatile compatibility make it the perfect choice for professionals seeking accuracy, safety, and efficiency in measurement technology.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
PS-801-10-125-00	Measuring end GW S12.65x1.5, hose 2x5 mm, with sleeve	2	630
PS-801-10-161-00	Measuring end GW M16x1.5, hose 2x5 mm, with sleeve	2	630
PS-801-10-162-00	Measuring end GW M16x2, hose 2x5 mm, with sleeve	2	630
PS-804-10-162-00	Measuring end GW M16x2, hose 4x8 mm, with sleeve	4	500
PS-811-10-162-00	Measuring end GW M16x2, hose 2x5 mm, with sleeve, AISI 316	2	630
PS-814-10-162-00	Measuring end GW M16x2, hose 4x8 mm, with sleeve, AISI 316	4	500

The measurement connection is designed for maximum reliability and flexibility, featuring internal threads M16x2 (ISO 1517-2), M16x1.5 or S12.65×1.5, combined with a secure hose connection for precise measurement applications. Delivered as a complete set with a robust clamping sleeve, it ensures quick installation and dependable performance even under demanding conditions. Manufactured either from high-grade steel with a durable zinc-nickel coating or from corrosion-resistant AISI 316 stainless steel, the component guarantees long-lasting protection against wear and environmental influences. With an impressive working pressure capacity of up to 500 bar or 630 bar, depending on the chosen size, and an operating temperature range from -30°C to +100°C, this solution is ideally suited for high-pressure hydraulic systems, industrial machinery, and mobile equipment. Its premium construction and versatile compatibility make it the perfect choice for professionals seeking accuracy, safety, and efficiency in measurement technology.
