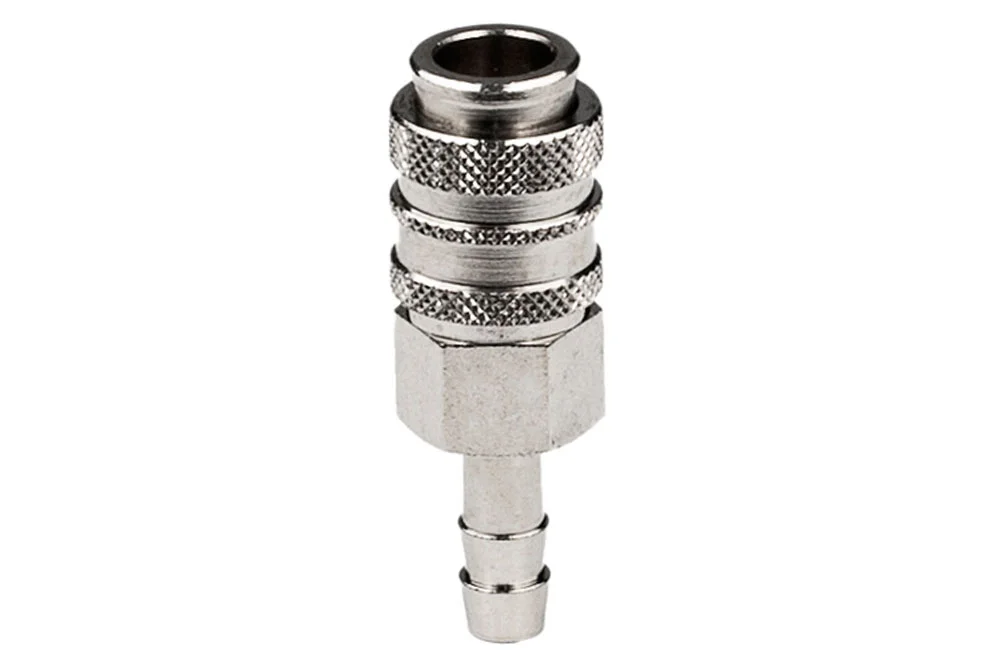

Socket quick coupling for air MINI DN5, with fitting for hose, brass nickel-plated, 16 bar

Additional information

Material

B – brass (bronze)

Socket quick coupling Eurostandard MINI DN 5, with valve, with fitting for hose, Widely used in industry (for air, nitrogen and other non-flammable gases), where required are small dimensions and large flow capacity flow at small a drop pressure. can be easily operated one hand at pressure up to 8 bar. interchangeable with RECTUS 21 and quick coupling o profile EURO DN 5 other manufacturers. Working pressure: 16 bar. Flow rate: 540 l/min, Pe = 6 bar, Δp = 1 bar. Operating temperature: od -10°C up to +90°C. Material: brass nickel-plated. sealing: NBR.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
TP-ES5-GK-04Quick coupling socket MINI DN5, for 4 mm hose, brass nickel-plated416In stock0 €
Enquiry
TP-ES5-GK-06Quick coupling socket MINI DN5, for 6 mm hose, brass nickel-plated616In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Socket quick coupling Eurostandard MINI DN 5, with valve, with fitting for hose, Widely used in industry (for air, nitrogen and other non-flammable gases), where required are small dimensions and large flow capacity flow at small a drop pressure. can be easily operated one hand at pressure up to 8 bar. interchangeable with RECTUS 21 and quick coupling o profile EURO DN 5 other manufacturers. Working pressure: 16 bar. Flow rate: 540 l/min, Pe = 6 bar, Δp = 1 bar. Operating temperature: od -10°C up to +90°C. Material: brass nickel-plated. sealing: NBR.

Additional information

Material

B – brass (bronze)
