Is the Mini DN5 Quick-Connect Air Plug, Threaded Nickel-Plated Brass, 16 bar compatible with RECTUS 21 and other EURO DN 5 profile couplings?

Yes. The Mini DN5 Quick-Connect Air Plug, Threaded Nickel-Plated Brass, 16 bar is fully compatible with RECTUS 21 and other EURO DN 5 profile couplings. It’s designed to be interchangeable with those standards, offers durable nickel-plated brass construction, works up to 16 bar, is suitable for air/nitrogen/non-flammable gases, and is available with internal or external BSP threads for installation flexibility.

Can the Mini DN5 Quick-Connect Air Plug, Threaded Nickel-Plated Brass, 16 bar be used safely with nitrogen and other non-flammable gases at varying ambient temperatures?

Yes. The Mini DN5 Quick-Connect Air Plug, Threaded Nickel-Plated Brass, 16 bar is rated and specified for use with air, nitrogen, and other non-flammable gases at working pressures up to 16 bar. Its nickel-plated brass construction and precise engineering provide reliable operation and good wear resistance. The specified operating temperature range of -10°C to +90°C means it can be used safely across typical ambient conditions within that range. It is offered with both external and internal BSP threads and is compatible with RECTUS 21 and other EURO DN 5 profile couplings, ensuring proper fit and interchangeability. Always ensure: system pressure does not exceed 16 bar, the gas is non-flammable, installation and maintenance follow manufacturer guidelines, seals and mating couplings are compatible with the gas and temperature, and regular inspections are performed for wear or damage.

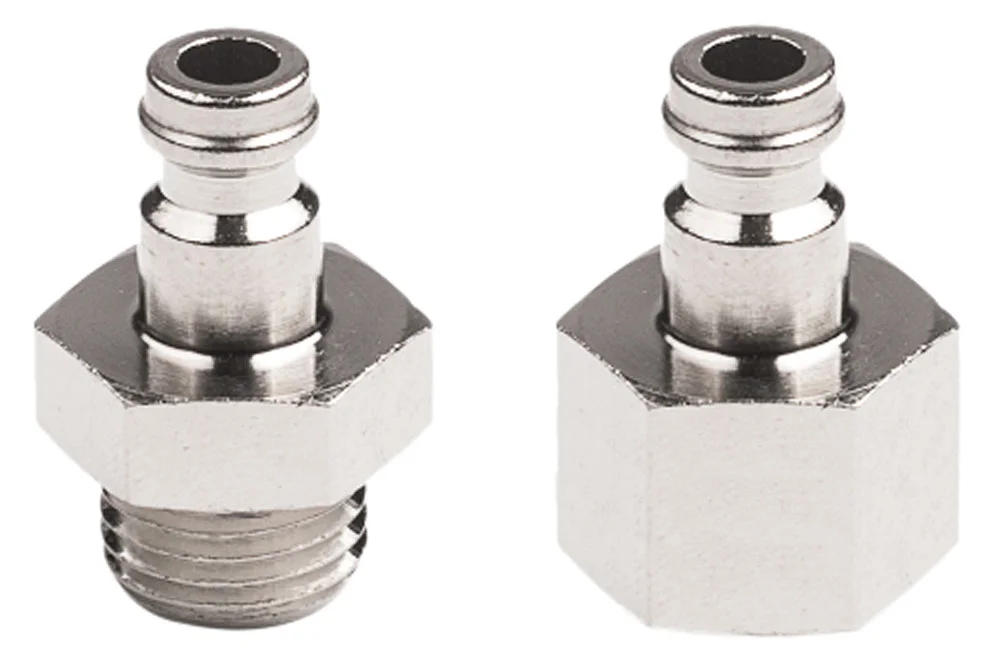

Mini DN5 Quick-Connect Air Plug, Threaded Nickel-Plated Brass, 16 bar

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

The Eurostandard MINI DN 5 quick coupling plug is a compact and highly efficient solution designed for demanding industrial applications. Made of durable nickel-plated brass, it ensures long-lasting performance and resistance to wear, while its precise construction guarantees reliable operation under working pressures up to 16 bar. Suitable for air, nitrogen, and other non-flammable gases, this plug is ideal wherever small dimensions must be combined with excellent flow capacity and minimal pressure loss. With an operating temperature range from -10°C to +90°C, it delivers consistent performance in diverse environments. Available with both external and internal BSP threads, it offers maximum installation flexibility and is fully interchangeable with RECTUS 21 and other EURO DN 5 profile couplings, making it a versatile choice for modern industry.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TP-ES5-WW-02	MINI DN5 quick coupling plug, 1/8" BSP female thread, nickel-plated brass	-	16	In stock	Enquiry
TP-ES5-WW-04	MINI DN5 quick coupling plug, 1/4" BSP male thread, nickel-plated brass	-	16	In stock	Enquiry
TP-ES5-WZ-02	MINI DN5 quick coupling plug, GZ 1/8" BSP, nickel-plated brass	-	16	In stock	Enquiry
TP-ES5-WZ-04	MINI DN5 quick coupling plug, GZ 1/4" BSP, nickel-plated brass	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The Eurostandard MINI DN 5 quick coupling plug is a compact and highly efficient solution designed for demanding industrial applications. Made of durable nickel-plated brass, it ensures long-lasting performance and resistance to wear, while its precise construction guarantees reliable operation under working pressures up to 16 bar. Suitable for air, nitrogen, and other non-flammable gases, this plug is ideal wherever small dimensions must be combined with excellent flow capacity and minimal pressure loss. With an operating temperature range from -10°C to +90°C, it delivers consistent performance in diverse environments. Available with both external and internal BSP threads, it offers maximum installation flexibility and is fully interchangeable with RECTUS 21 and other EURO DN 5 profile couplings, making it a versatile choice for modern industry.
