Does the Mini SDR Compressed Air Regulator with BSP Female Thread, G Series support inlet pressures up to 10 bar and maintain stable outlet pressure under fluctuating inlet conditions?

Yes. The Mini SDR Compressed Air Regulator with BSP Female Thread, G Series supports inlet pressures up to 10 bar and is designed to maintain a stable outlet pressure even when inlet pressure fluctuates. It features manual adjustment, internal BSP female thread, and a pressure gauge for monitoring. Available in two sizes (100 and 200) with flow rates of 150 l/min and 500 l/min (at 6 bar inlet, Δp = 1 bar), it also withstands operating temperatures up to +70°C and offers BSP female connections from M5 to 1/4".

Can the Mini SDR Compressed Air Regulator with BSP Female Thread, G Series be mounted using the included bracket for compact installations while still allowing easy access to the manual adjustment and gauge?

Yes. The Mini SDR Compressed Air Regulator with BSP Female Thread, G Series can be mounted using the included bracket for compact installations while still allowing easy access to the manual adjustment and gauge. The product description specifies that a practical mounting bracket and a pressure gauge are included, and the regulator is designed for compact dimensions and user-friendly control. When mounted with the bracket, the manual adjustment and gauge remain accessible for quick setup and visual monitoring, making it suitable for tight spaces without sacrificing operability.

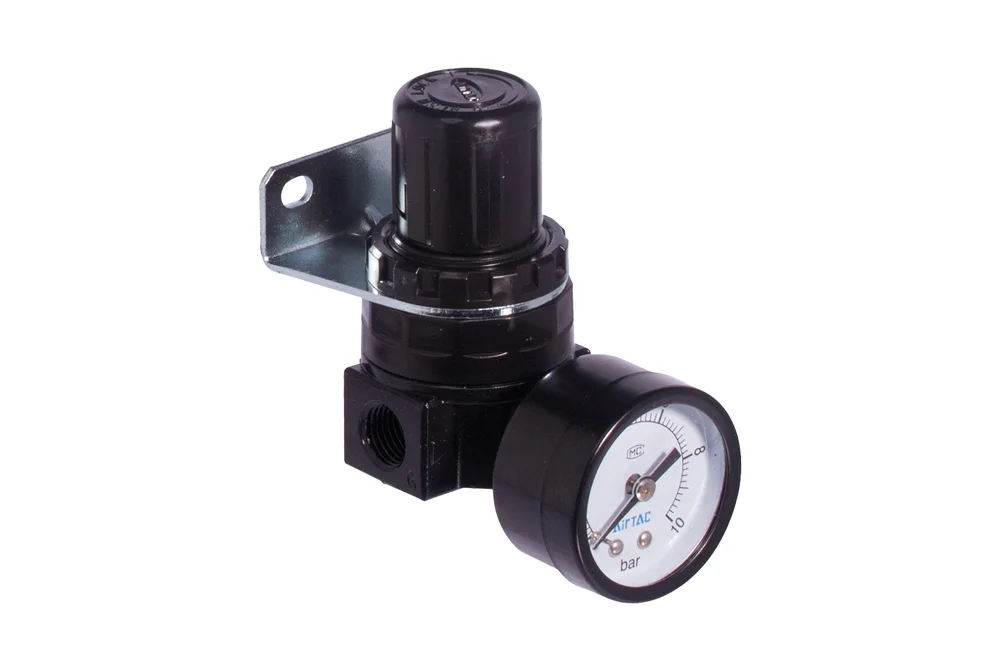

Mini reducer compressed air SDR with thread internal BSP, series G

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	70

Mini reducer SDR series G with thread internal BSP, set manually, stays constant value pressure at the outlet, independently od fluctuations pressure against valve. W set found A handle assembly and pressure gauge. Size: 100, 200. Supply pressure: up to 10 bar. Operating temperature: up to +70°C. Connection: M5 BSP female ÷ 1/4″. Flow rate: 150 l/min – size 100, 500 l/min – size 200 (at an inlet pressure of 6 bar Δp = 1 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AT-SDR100-06	Mini Reducing valve SDR100 1/8 09	-	-	In stock	Enquiry
AT-SDR100-M5	Mini Reducing valve SDR100 M5 09	-	-	In stock	Enquiry
AT-SDR200-06	Mini Reducing valve SDR200 1/8 09	-	-	In stock	Enquiry
AT-SDR200-08	Mini Reducing valve SDR200 1/4 09	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Mini reducer SDR series G with thread internal BSP, set manually, stays constant value pressure at the outlet, independently od fluctuations pressure against valve. W set found A handle assembly and pressure gauge. Size: 100, 200. Supply pressure: up to 10 bar. Operating temperature: up to +70°C. Connection: M5 BSP female ÷ 1/4″. Flow rate: 150 l/min – size 100, 500 l/min – size 200 (at an inlet pressure of 6 bar Δp = 1 bar).
