Is the Mini air hose coupling socket with valve DN2.7, threaded nickel-plated brass, 16 bar compatible with RECTUS 20 plugs and other DN 2.7 plug profiles?

Yes. The Mini air hose coupling socket with valve DN2.7, threaded nickel-plated brass, 16 bar is fully compatible with RECTUS 20 plugs and other DN 2.7 plug profiles that share the same plug profile. The description explicitly states it is fully interchangeable with RECTUS 20 and other DN 2.7 quick-connects, so you can use RECTUS 20 plugs or other matching DN 2.7 plugs without issues.

Can the Mini air hose coupling socket with valve DN2.7, threaded nickel-plated brass, 16 bar be used with breathable gases like oxygen or only with air and nitrogen?

Mini air hose coupling socket with valve DN2.7, threaded nickel-plated brass, 16 bar is specified for pneumatic applications with air, nitrogen, and other non-flammable gases. The description highlights NBR seals, nickel‑plated brass body, stainless steel pins and spring, operating range −20°C to +100°C, and maximum pressure 16 bar, but does not state compatibility with breathable medical gases such as oxygen. Because oxygen is a highly reactive (oxidizing) gas that can interact with certain materials and increase fire risk, components must be qualified for oxygen service (materials, cleaning, lubrication and certification). NBR, brass and typical lubricants used in pneumatic couplings often are not approved for oxygen use. Therefore, unless the manufacturer explicitly certifies the Mini air hose coupling socket with valve DN2.7, threaded nickel-plated brass, 16 bar for oxygen/breathable gas service and provides appropriate oxygen-cleaning and material compatibility documentation, it should be used only with air, nitrogen and other non‑flammable gases — not oxygen or breathable medical gases.

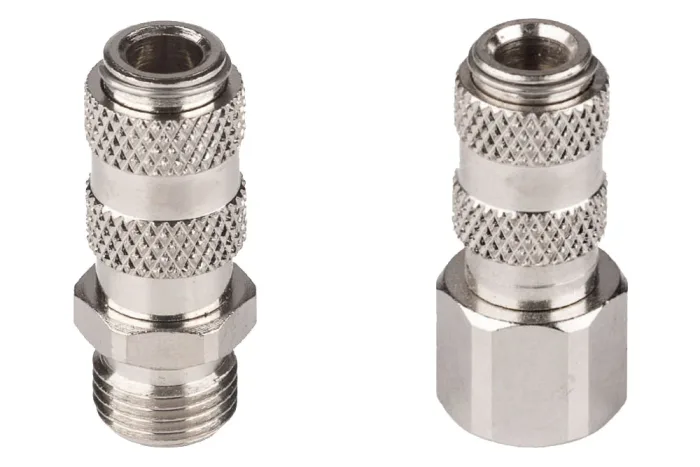

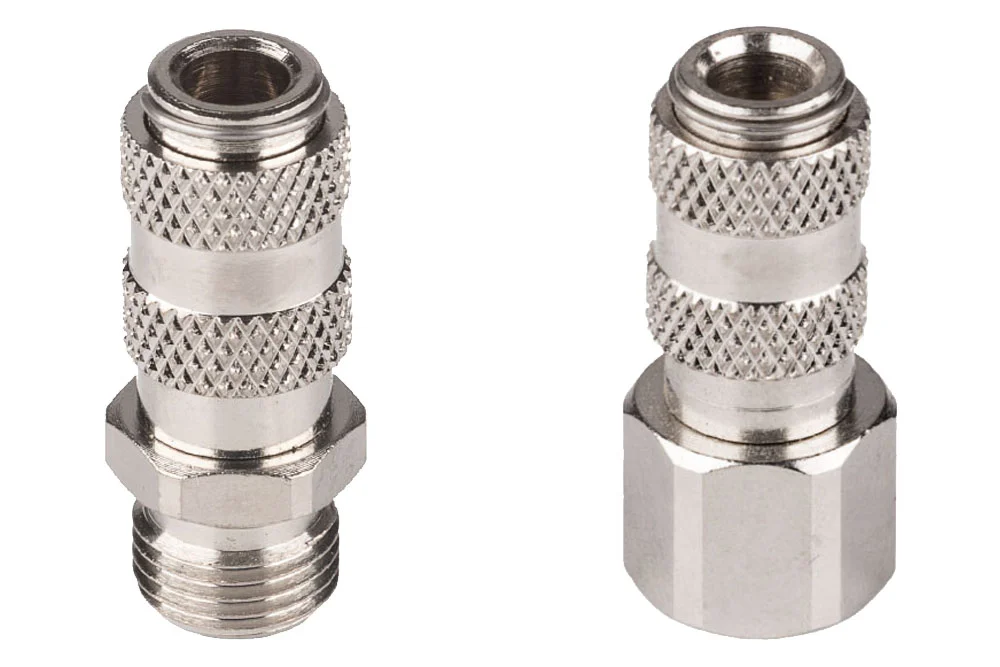

Mini air hose coupling socket with valve DN2.7, threaded nickel-plated brass, 16 bar

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

The miniature quick-connect socket DN 2.7 with integrated valve is designed for applications where compact dimensions and reliable performance are essential, such as in medical devices, laboratory systems, and precision measurement technology. Available with either external or internal thread in metric or BSP versions, it ensures versatile integration into various setups. Engineered for convenient one-handed operation, it supports working pressures up to 16 bar and delivers an impressive flow rate of 228 l/min (Pe = 6 bar, Δp = 1 bar, air). Fully interchangeable with RECTUS 20 and other DN 2.7 quick-connects featuring the same plug profile, it guarantees compatibility and flexibility across systems. The robust construction combines nickel-plated brass with stainless steel pins and spring, ensuring durability and resistance to wear, while the NBR sealing provides reliable tightness even under demanding conditions. With an operating temperature range from -20°C to +100°C, this connector is ideal for pneumatic applications with air, nitrogen, and other non-flammable gases, offering a dependable solution wherever precision, safety, and compact design are required.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
EW-MIKRO-GW-02	Quick coupling socket MICRO DN2.7, 1/8" BSP thread, nickel-plated brass	-	16
EW-MIKRO-GW-M5	Quick coupling socket MICRO DN2.7, G1/8 M5, nickel-plated brass	-	16
EW-MIKRO-GZ-02	Quick coupling socket MICRO DN2.7, GZ 1/8" BSP, nickel-plated brass	-	16
EW-MIKRO-GZ-M5	Quick coupling socket MICRO DN2.7, GZ M5, nickel-plated brass	-	16

The miniature quick-connect socket DN 2.7 with integrated valve is designed for applications where compact dimensions and reliable performance are essential, such as in medical devices, laboratory systems, and precision measurement technology. Available with either external or internal thread in metric or BSP versions, it ensures versatile integration into various setups. Engineered for convenient one-handed operation, it supports working pressures up to 16 bar and delivers an impressive flow rate of 228 l/min (Pe = 6 bar, Δp = 1 bar, air). Fully interchangeable with RECTUS 20 and other DN 2.7 quick-connects featuring the same plug profile, it guarantees compatibility and flexibility across systems. The robust construction combines nickel-plated brass with stainless steel pins and spring, ensuring durability and resistance to wear, while the NBR sealing provides reliable tightness even under demanding conditions. With an operating temperature range from -20°C to +100°C, this connector is ideal for pneumatic applications with air, nitrogen, and other non-flammable gases, offering a dependable solution wherever precision, safety, and compact design are required.
