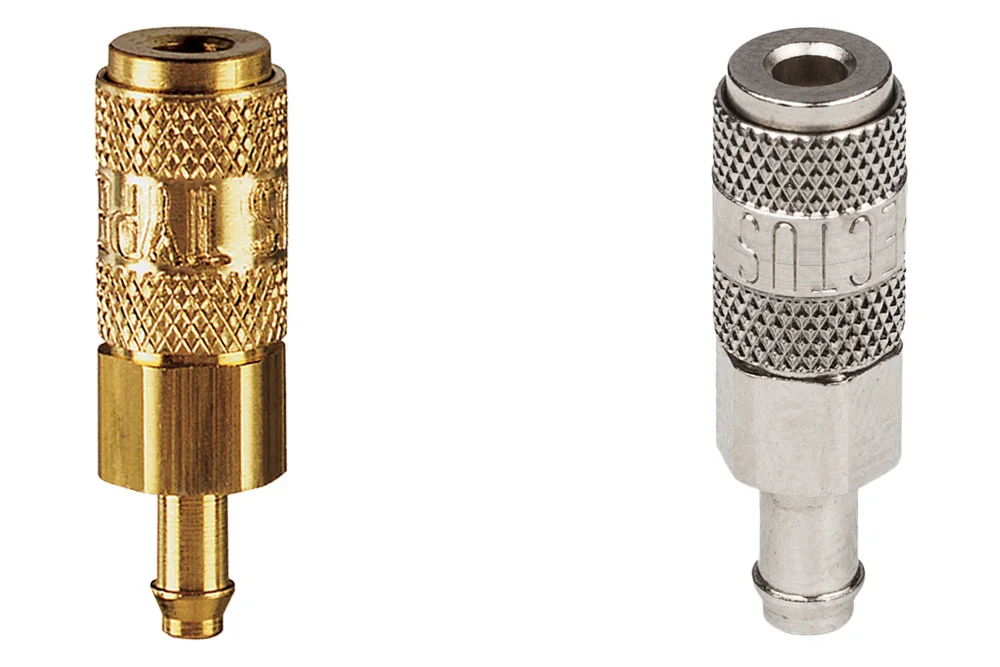

Socket quick coupling DN1.5 Miniature universal, with fitting for hose, brass, series 02KA
Miniature socket quick coupling DN1.5, with valve, with fitting for hose, for air, inert gases and liquids, where required are small dimensions. Available in two variants: with brass without coating and with brass coated nickel. Working pressure: 35 bar. flow capacity: 40 l/min, Pe=6 bar, Δp=0.5 bar (air), Kv=0.048, 0.8 l/min at Δp=1 bar (water). Operating temperature: od -20°C up to +100°C. Material: brass or brass nickel-plated, steel AISI 301 (spring and ring), steel AISI 420 (balls locking). sealing: NBR.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Miniature socket quick coupling DN1.5, with valve, with fitting for hose, for air, inert gases and liquids, where required are small dimensions. Available in two variants: with brass without coating and with brass coated nickel. Working pressure: 35 bar. flow capacity: 40 l/min, Pe=6 bar, Δp=0.5 bar (air), Kv=0.048, 0.8 l/min at Δp=1 bar (water). Operating temperature: od -20°C up to +100°C. Material: brass or brass nickel-plated, steel AISI 301 (spring and ring), steel AISI 420 (balls locking). sealing: NBR.
Additional information
| Material | B – brass (bronze) |
|---|
