Is the Clamping Foot Mount for ISO 6432 Mini Cylinder, Model A compatible with Ø8–Ø25 cylinders and suitable for outdoor corrosive environments?

Clamping Foot Mount for ISO 6432 Mini Cylinder, Model A is compatible with Ø8–Ø25 cylinders (specifically Ø8, Ø10, Ø12, Ø16, Ø20 and Ø25) and provides secure, stable installation for those sizes. It is made of high-quality carbon steel with a galvanized coating, which gives good resistance to wear, corrosion, and mechanical stress; this makes it suitable for many demanding industrial environments. However, for prolonged exposure to highly corrosive outdoor environments (sea air, chemical atmospheres, frequent wet/dry cycles), galvanized carbon steel may eventually degrade faster than stainless steel or specially coated materials. If your application involves severe or continuous corrosive conditions, consider verifying required corrosion-resistance standards or choosing a stainless-steel or specialized corrosion-resistant version.

What mounting hardware is recommended for the Clamping Foot Mount for ISO 6432 Mini Cylinder, Model A to ensure vibration-free operation in high-speed pneumatic systems?

For vibration-free operation in high-speed pneumatic systems using the Clamping Foot Mount for ISO 6432 Mini Cylinder, Model A, use the following mounting hardware and practices: - High-strength M4 or M5 socket-head cap screws (grade 10.9 or ASTM A574) sized to the bracket and cylinder thread engagement to prevent loosening under dynamic loads. - Hardened flat washers and spring (lock) washers or, preferably, nylon-insert lock nuts to maintain clamping preload and resist vibrational loosening. - Threadlocker (medium-strength, e.g., Loctite 243) applied on threads where disassembly is occasional; use removable-grade to avoid bolt seizure. - Anti-vibration rubber or elastomeric pad between the bracket and machine frame where minor damping is needed; choose Shore A 60–80 for a balance of damping and stiffness. - Torque fasteners to manufacturer-recommended values for the selected screw grade to ensure correct clamp force and avoid fatigue. - For extreme high-speed or high-vibration installations, add a secondary safety fastener (safety wire or lock tab) and consider using dowel pins for shear load location to preserve precise alignment. These choices, combined with the Model A’s galvanized carbon-steel construction and precise fit, will maximize stability, minimize vibration, and extend service life in demanding pneumatic applications.

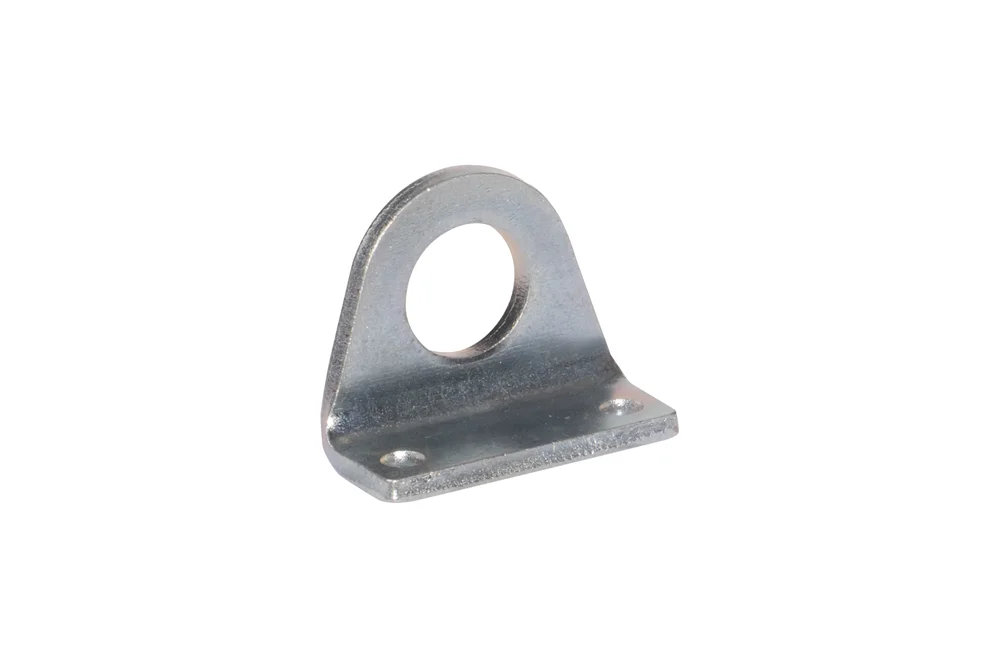

Clamping Foot Mount for ISO 6432 Mini Cylinder, Model A

All products, Pneumatic actuators/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

The Mounting Bracket Model A is a reliable and durable solution designed specifically for mini cylinders in compliance with ISO 6432 standards. Suitable for cylinder sizes Ø8, Ø10, Ø12, Ø16, Ø20, and Ø25, it ensures secure and stable installation across a wide range of applications. Manufactured from high-quality carbon steel and finished with a galvanized coating, the bracket offers excellent resistance to wear, corrosion, and mechanical stress, guaranteeing long-lasting performance even in demanding industrial environments. Its precise construction allows for easy assembly and consistent alignment, helping to optimize the efficiency and safety of pneumatic systems. This versatile mounting accessory is an ideal choice for engineers and maintenance teams seeking a robust, cost-effective, and professional-grade solution to enhance the reliability of their automation setups.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-W0950080001	Clamping jaw MOD. A-8/10	-	-	In stock	Enquiry
MW-W0950120001	Clamping jaw MOD. A-012/016	-	-	In stock	Enquiry
MW-W0950200001	A-D20/25 clamping jaw	-	-	In stock	Enquiry
