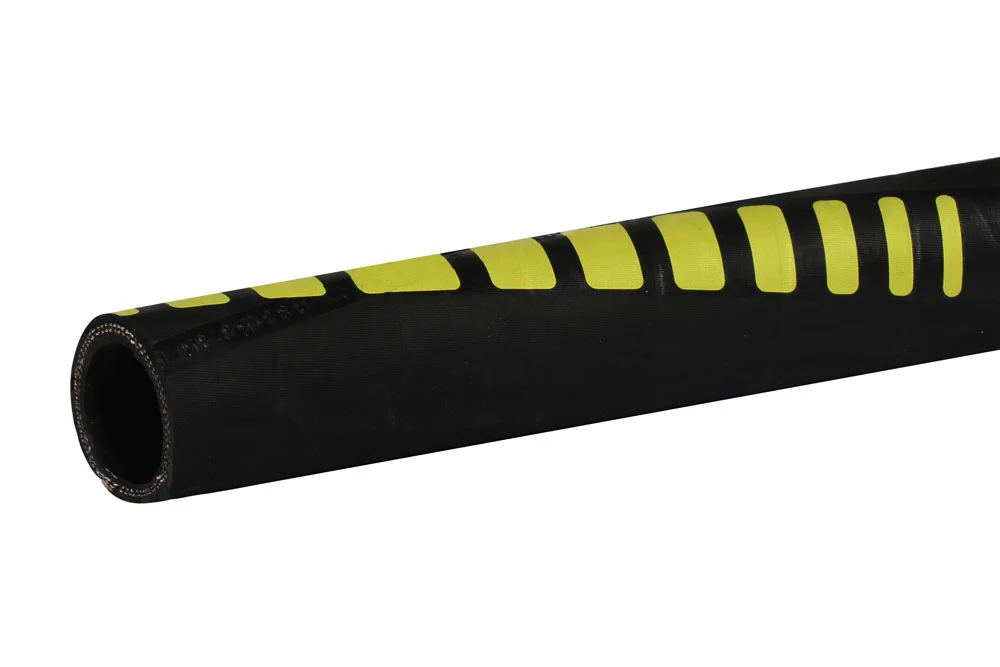

AVIO GLOBAL “Non-Metallic” Aircraft Refueling Hose F – Suction & Discharge

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-25

Vacuum resistance

yes

Standard length [m]

60

Reinforcement

PET spiral, synthetic cover

This highly durable suction and discharge hose is designed specifically for aviation fuel handling, ensuring maximum safety and efficiency during aircraft tank refueling and emptying, as well as loading and unloading airport tankers and fuel dispensers. Free from metal components, it allows direct use with aircraft tanks and can be conveniently wound on reels for easy storage and transport. Engineered for compatibility with turbine engine fuels such as aviation kerosene (Jet A1), aviation gasoline, and fuels containing up to 50% aromatic hydrocarbons, it guarantees reliable performance in demanding conditions. The smooth inner layer of black NBR rubber ensures optimal fuel flow, while multiple layers of high-strength synthetic cord combined with a PET spiral provide exceptional reinforcement and flexibility. Its robust, antistatic outer layer made of synthetic rubber offers superior resistance to abrasion, oils, and harsh weather, while maintaining low electrical resistance in compliance with ISO 8031. Certified according to international standards including API 1529:05, AS 2683, VG 95955, and NFPA 407, this hose delivers proven safety and quality for aviation operations. With a working pressure of 20 bar and an operating temperature range from -25°C to +70°C, it is built to perform under extreme conditions. On request, additional diameters and versions with fluorescent markings for enhanced night visibility are available, making it a versatile and future-ready solution for modern aviation fueling needs.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IV-AVIO-F-050AVIO GLOBAL F hose 50x69 mm5020In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This highly durable suction and discharge hose is designed specifically for aviation fuel handling, ensuring maximum safety and efficiency during aircraft tank refueling and emptying, as well as loading and unloading airport tankers and fuel dispensers. Free from metal components, it allows direct use with aircraft tanks and can be conveniently wound on reels for easy storage and transport. Engineered for compatibility with turbine engine fuels such as aviation kerosene (Jet A1), aviation gasoline, and fuels containing up to 50% aromatic hydrocarbons, it guarantees reliable performance in demanding conditions. The smooth inner layer of black NBR rubber ensures optimal fuel flow, while multiple layers of high-strength synthetic cord combined with a PET spiral provide exceptional reinforcement and flexibility. Its robust, antistatic outer layer made of synthetic rubber offers superior resistance to abrasion, oils, and harsh weather, while maintaining low electrical resistance in compliance with ISO 8031. Certified according to international standards including API 1529:05, AS 2683, VG 95955, and NFPA 407, this hose delivers proven safety and quality for aviation operations. With a working pressure of 20 bar and an operating temperature range from -25°C to +70°C, it is built to perform under extreme conditions. On request, additional diameters and versions with fluorescent markings for enhanced night visibility are available, making it a versatile and future-ready solution for modern aviation fueling needs.

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-25

Vacuum resistance

yes

Standard length [m]

60

Reinforcement

PET spiral, synthetic cover
