Can the NON SKIVE DKO 90° End, Carbon Steel Fitting, Type NOW210 be used with TI-N crimping sleeves on 4SP, 4SH, R13, and R15 hoses without hose skiving?

Yes. The NON SKIVE DKO 90° End, Carbon Steel Fitting, Type NOW210 is specifically designed for crimping with 4SP, 4SH, R13, and R15 hoses and is intended to be used with the TI-N crimping sleeve. Its NON SKIVE technology eliminates the need to remove the hose rubber layer, enabling faster, safer and more consistent assembly without hose skiving. Manufactured from carbon steel with a galvanized coating, it offers durable, corrosion-resistant performance and reliable 90° routing for confined spaces when paired with the TI-N sleeve.

Is the NON SKIVE DKO 90° End, Carbon Steel Fitting, Type NOW210 compatible with other crimping sleeves besides TI-N for 4SP, 4SH, R13, and R15 hoses without skiving?

The NON SKIVE DKO 90° End, Carbon Steel Fitting, Type NOW210 is specifically engineered for use with the TI-N crimping sleeve for 4SP, 4SH, R13, and R15 hoses. Its NON SKIVE technology and internal flat-sealing UNF thread assume installation without removing the hose cover and are validated for reliable performance when crimped with the TI-N sleeve. Using other crimping sleeves is not recommended unless the alternative sleeve is explicitly certified by the manufacturer for NON SKIVE DKO fittings and for the same hose types and crimp dimensions. Non‑approved sleeves can compromise the non‑skive sealing interface, crimp geometry and pressure rating, risking leaks or failure. For safe and compliant assembly, follow the manufacturer’s specification and use the TI‑N sleeve or obtain written confirmation of compatibility from the fitting supplier.

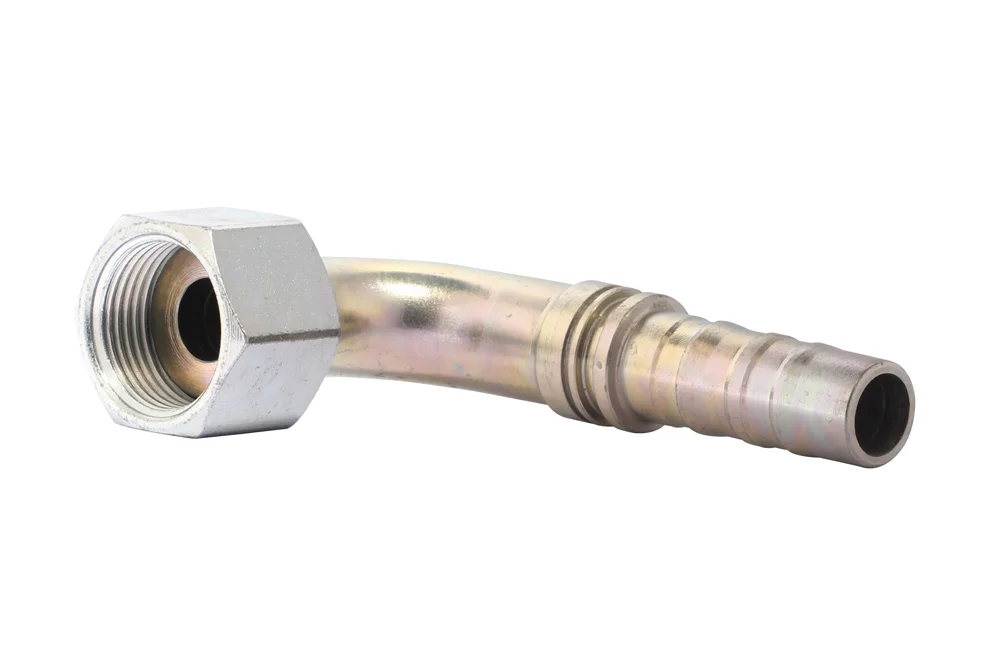

NON SKIVE DKO 90° End, Carbon Steel Fitting, Type NOW210

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10, 3

The 90° NON SKIVE fitting with internal UNF thread and flat sealing (DKO 90) is a reliable solution engineered for demanding hydraulic applications. Designed specifically for crimping with hoses of types 4SP, 4SH, R13, and R15, it ensures secure and durable connections when used together with the TI-N crimping sleeve. Thanks to the NON SKIVE technology, installation is simplified and faster, as there is no need to remove the rubber layer of the hose, which not only saves time but also enhances safety and consistency of assembly. Manufactured from high-quality carbon steel and protected with a galvanized coating, the fitting offers excellent resistance to corrosion and mechanical stress, guaranteeing long-lasting performance even under high pressure and in harsh working environments. Its precise 90° angle design allows for optimal routing in confined spaces, improving system efficiency and reducing wear on hoses. This fitting is the perfect choice for industries requiring reliability, durability, and ease of installation in their hydraulic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NOW210-19-12	End. ORFS 90° NON SKIVE G1/4", hose 3/4"	20	420	In stock	Enquiry
TI-NOW210-23-16	End. ORFS 90° NON SKIVE G1.7/16", hose 1"	25	415	In stock	Enquiry
TI-NOW210-27-20	End. ORFS 90° NON SKIVE G1 1/16", hose 1 1/4"	32	345	In stock	Enquiry
TI-NOW210-32-24	End. ORFS 90° NON SKIVE G1/2", hose 1.1/2"	38	290	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 90° NON SKIVE fitting with internal UNF thread and flat sealing (DKO 90) is a reliable solution engineered for demanding hydraulic applications. Designed specifically for crimping with hoses of types 4SP, 4SH, R13, and R15, it ensures secure and durable connections when used together with the TI-N crimping sleeve. Thanks to the NON SKIVE technology, installation is simplified and faster, as there is no need to remove the rubber layer of the hose, which not only saves time but also enhances safety and consistency of assembly. Manufactured from high-quality carbon steel and protected with a galvanized coating, the fitting offers excellent resistance to corrosion and mechanical stress, guaranteeing long-lasting performance even under high pressure and in harsh working environments. Its precise 90° angle design allows for optimal routing in confined spaces, improving system efficiency and reducing wear on hoses. This fitting is the perfect choice for industries requiring reliability, durability, and ease of installation in their hydraulic systems.
