How does the CF1 Oil Filter Unit improve equipment lifespan and reduce downtime through its filtration and flow capabilities?

The CF1 Oil Filter Unit improves equipment lifespan and reduces downtime by delivering fast, high-quality oil handling and contamination control. Its 0.55 kW motor and 400V supply produce a strong 39 L/min flow, enabling quick filling and suction of tanks, machines, and hydraulic systems so service tasks finish sooner and systems return to operation faster. The integrated filtration suite removes wear-causing particulates before they circulate: a standard 25 µm main filter (selectable down to 20 µm or 10 µm for finer protection) alongside a 125 µm suction strainer that protects the pump and downstream components from large debris. This combination reduces abrasive wear, prevents clogging and component failure, and keeps hydraulic and lubrication circuits running at designed efficiency. Rugged construction and mobility support regular, effective maintenance cycles—improving oil quality, minimizing unplanned stoppages, extending component life, and lowering overall lifecycle costs.

What maintenance schedule is recommended for the CF1 Oil Filter Unit’s 25 µm and optional 10 µm/20 µm filters to ensure optimal performance and longevity?

CF1 Oil Filter Unit — Recommended maintenance schedule: - Daily/Before each use: - Visually inspect unit, hoses and fittings for leaks or damage. - Check suction strainer (125 µm) for gross contamination; clean or replace if clogged. - Weekly: - Monitor flow rate and pressure; note any drops that may indicate filter loading. - Wipe external surfaces and ensure ventilation to motor is clear. - Monthly: - Inspect the standard 25 µm filter element for contamination level; clean (if reusable) or replace when visibly dirty or when flow drops by ~10–15% from baseline. - Check seals, clamps and electrical connections; tighten or service as needed. - Every 3 months (or more often in heavy-duty/dirty applications): - Replace the 25 µm filter element as preventative maintenance if not already changed. - If equipped with optional 10 µm or 20 µm elements, replace these more frequently — typically every 1–3 months depending on contamination load (start monthly and extend interval based on observed pressure/flow and oil cleanliness checks). - After major contamination events: - Immediately inspect and replace both suction (125 µm) and main (25/10/20 µm) filters. - General best practices: - Track operating hours, flow/pressure trends and oil cleanliness (particle counts or ISO code) to tailor replacement intervals. - Use only manufacturer-recommended filter elements and follow safe disposal procedures for used filters. - Periodically service motor (0.55 kW, 400 V) and pump according to hours of operation or local maintenance standards. Adjust intervals for severity of duty; harsher environments and higher contamination require more frequent filter changes to ensure optimal performance and longevity.

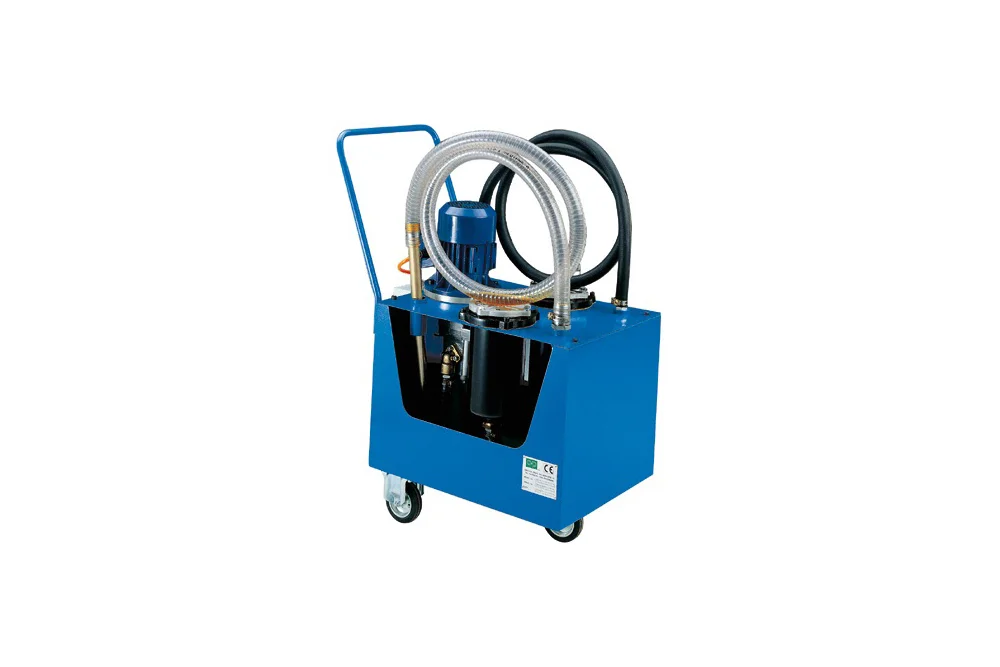

CF1 Oil Filter Unit

All products, Other devices/

Additional information

This advanced oil service unit is designed for efficient filling, suction, and filtration of oil from press tanks, industrial machines, and hydraulic systems, ensuring reliable operation and extended equipment life. Powered by a robust 0.55 kW electric motor with a 400V supply, it delivers a high-performance flow rate of 39 liters per minute, making it ideal for demanding industrial environments. The integrated filtration system guarantees superior oil purity, featuring a standard 25 µm filter with optional 10 µm or 20 µm elements for even finer protection, complemented by a 125 µm suction filter that safeguards the pump and system components. With a solid construction and a weight of 60 kg, the device combines durability with mobility, offering a dependable solution for maintenance operations. Its optimized design not only improves oil quality but also reduces downtime, enhances system efficiency, and supports sustainable machine performance, making it an indispensable tool for modern production facilities.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
OP-CF1	Oil filtering device CF1	-	-	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

This advanced oil service unit is designed for efficient filling, suction, and filtration of oil from press tanks, industrial machines, and hydraulic systems, ensuring reliable operation and extended equipment life. Powered by a robust 0.55 kW electric motor with a 400V supply, it delivers a high-performance flow rate of 39 liters per minute, making it ideal for demanding industrial environments. The integrated filtration system guarantees superior oil purity, featuring a standard 25 µm filter with optional 10 µm or 20 µm elements for even finer protection, complemented by a 125 µm suction filter that safeguards the pump and system components. With a solid construction and a weight of 60 kg, the device combines durability with mobility, offering a dependable solution for maintenance operations. Its optimized design not only improves oil quality but also reduces downtime, enhances system efficiency, and supports sustainable machine performance, making it an indispensable tool for modern production facilities.
