Is the Thermoplastic Hose with Dual Aramid Reinforcement OL8 Marine suitable for saltwater hydraulic systems and marine fuel transfer?

Yes. Thermoplastic Hose with Dual Aramid Reinforcement OL8 Marine is suitable for saltwater hydraulic systems and marine fuel transfer. It’s engineered for hydraulic oil systems and safe transfer of fuels, and specifically built to perform reliably in high humidity and saline air. Compliance with SAE 100R8 and ISO 3949-R8, double aramid braid reinforcement, polyester inner layer, and micro‑perforated polyurethane outer layer deliver corrosion and wear resistance required in marine environments. Working pressures (165–350 bar depending on diameter) and temperature range (−40°C to +100°C; up to +70°C for water and air) cover typical marine hydraulic and fuel transfer conditions. Ensure you select the correct diameter/pressure rating and verify compatibility with specific fuel types and any regulatory or classification society requirements for your vessel.

Can the Thermoplastic Hose with Dual Aramid Reinforcement OL8 Marine be used for high-pressure pneumatic systems and compressed air lines in corrosive marine environments?

Yes. Thermoplastic Hose with Dual Aramid Reinforcement OL8 Marine is suitable for high-pressure pneumatic systems and compressed air lines in corrosive marine environments, with the following supporting points: - Rated working pressures from 165 bar to 350 bar (depending on diameter) cover typical high-pressure pneumatic and compressed air requirements. - Construction: a polyester inner layer and double aramid braid provide exceptional strength and pressure resistance for safe gas/air transfer. - Marine suitability: engineered to perform reliably in high humidity and saline air; meets SAE 100R8 and ISO 3949-R8 standards. - Environmental protection: micro‑perforated polyurethane outer layer resists wear and environmental factors common in marine settings. - Temperature limits: operational range −40°C to +100°C, with a +70°C limit for water and air—ensure your system’s maximum air temperature does not exceed +70°C. Recommendation: verify required diameter/pressure rating for your specific system and ensure air temperature remains ≤ +70°C.

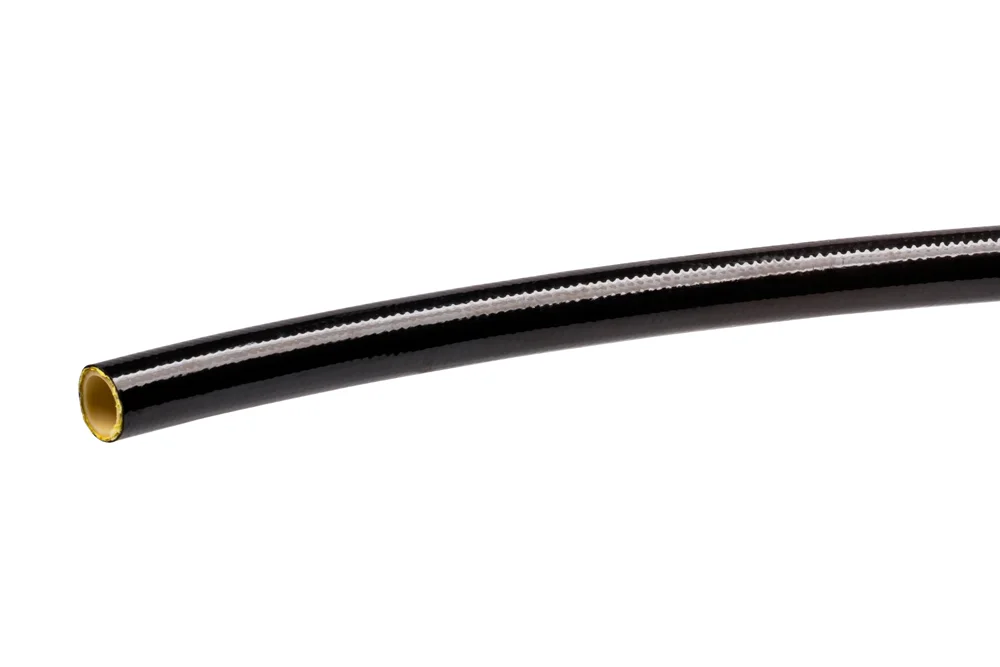

Hose thermoplastic with a double aramid braid OL8 MARINE

All products, Thermoplastic hoses/

Additional information

Material	PEE – polyester
Maximum operating temperature [°C]	100
Minimum operating temperature [°C]	-40
Vacuum resistance	check
Standard length [m]	15

Light, flexible hose intended for oil installation hydraulic, gases, air, fuels, liquids based on water. is suitable for use in environment high humidity and salty air. standards: SAE 100R8, ISO 3949-R8. Inner layer: polyester. Reinforcement: a double aramid braid. Outer layer: micro-perforated polyurethane. Working pressure: from 165 bar to 350 bar, depending on the diameter hose. Operating temperature: od -40°C up to +100°C (for water and air up to +70°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
ZC-OL8MARINE-05	Hose thermoplastic OL8 MARINE 3/16"	5	350	In stock	Enquiry
ZC-OL8MARINE-06	Hose thermoplastic OL8 MARINE 1/4"	6	350	In stock	Enquiry
ZC-OL8MARINE-08	Hose thermoplastic OL8 MARINE 5/16"	8	325	In stock	Enquiry
ZC-OL8MARINE-10	Hose thermoplastic OL8 MARINE 3/8"	10	280	In stock	Enquiry
ZC-OL8MARINE-13	Hose thermoplastic OL8 MARINE 1/2"	12	245	In stock	Enquiry
ZC-OL8MARINE-16	Hose thermoplastic OL8 MARINE 5/8"	16	195	In stock	Enquiry
ZC-OL8MARINE-19	Hose thermoplastic OL8 MARINE 3/4"	20	165	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Light, flexible hose intended for oil installation hydraulic, gases, air, fuels, liquids based on water. is suitable for use in environment high humidity and salty air. standards: SAE 100R8, ISO 3949-R8. Inner layer: polyester. Reinforcement: a double aramid braid. Outer layer: micro-perforated polyurethane. Working pressure: from 165 bar to 350 bar, depending on the diameter hose. Operating temperature: od -40°C up to +100°C (for water and air up to +70°C).
