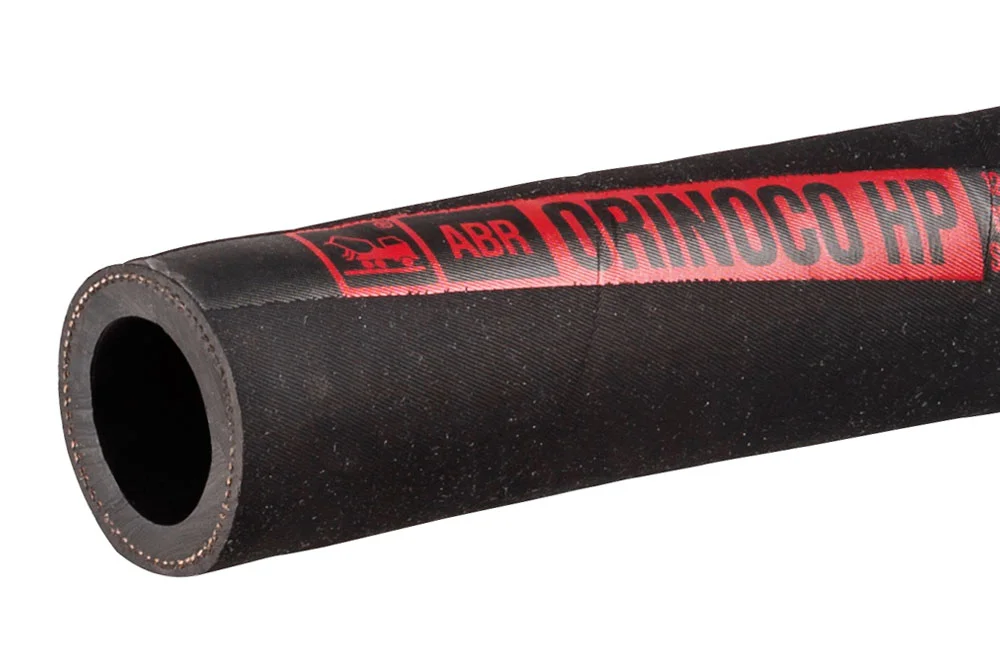

Ultra-Durable ORINOCO HP® Sandblasting Hose – Maximum Abrasion Resistance

Additional information

Material

SBR/NR – a mixture of SBR and NR rubber

Maximum operating temperature [°C]

80

Minimum operating temperature [°C]

-40

Vacuum resistance

no

Standard length [m]

40, 60 / 120

Reinforcement

synthetic braid

The pressure hose for sandblasting is designed for maximum durability and efficiency in the most demanding industrial conditions. Its thick inner layer, made of high‑quality NR/SBR rubber, offers outstanding abrasion resistance of 40±5 mm³ (ISO 4649 / DIN 53516), significantly exceeding the requirements of ISO 3861:2008. Both the inner and outer layers are antistatic, ensuring safe operation by preventing electrostatic charge build‑up. Reinforced with a strong synthetic cord and protected by a robust outer layer of synthetic rubber, the hose guarantees reliability and long service life. It is perfectly suited for transporting highly abrasive materials such as quartz sand, steel shot, corundum, or glass, making it ideal for abrasive blasting of steel structures, castings, and concrete surfaces. Equipped with dedicated sandblasting nozzles, it ensures precise and efficient performance. Available in standard lengths of 60 m or 40 m for a 16 mm diameter, with the option of 120 m upon request, it provides flexibility for various applications. With a working pressure of 12 bar and an impressive operating temperature range from -40°C to +80°C, this hose delivers consistent performance and safety in every environment.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IV-ORINOCOHP-13ORINOCO HP hose 13x27 mm1212In stock
Enquiry
IV-ORINOCOHP-16ORINOCO HP hose 16x30 mm1612In stock
Enquiry
IV-ORINOCOHP-19ORINOCO HP hose 19x33 mm2012In stock
Enquiry
IV-ORINOCOHP-25ORINOCO HP hose 25x39 mm2512In stock
Enquiry
IV-ORINOCOHP-32ORINOCO HP hose 32x48 mm3212In stock
Enquiry
IV-ORINOCOHP-38ORINOCO HP hose 38x54 mm3812In stock
Enquiry
IV-ORINOCOHP-42ORINOCO HP hose 42x60.5 mm4012In stock
Enquiry
IV-ORINOCOHP-50ORINOCO HP hose 50x70 mm5012In stock
Enquiry
IV-ORINOCOHP-60ORINOCO HP hose 60x80 mm6012In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

The pressure hose for sandblasting is designed for maximum durability and efficiency in the most demanding industrial conditions. Its thick inner layer, made of high‑quality NR/SBR rubber, offers outstanding abrasion resistance of 40±5 mm³ (ISO 4649 / DIN 53516), significantly exceeding the requirements of ISO 3861:2008. Both the inner and outer layers are antistatic, ensuring safe operation by preventing electrostatic charge build‑up. Reinforced with a strong synthetic cord and protected by a robust outer layer of synthetic rubber, the hose guarantees reliability and long service life. It is perfectly suited for transporting highly abrasive materials such as quartz sand, steel shot, corundum, or glass, making it ideal for abrasive blasting of steel structures, castings, and concrete surfaces. Equipped with dedicated sandblasting nozzles, it ensures precise and efficient performance. Available in standard lengths of 60 m or 40 m for a 16 mm diameter, with the option of 120 m upon request, it provides flexibility for various applications. With a working pressure of 12 bar and an impressive operating temperature range from -40°C to +80°C, this hose delivers consistent performance and safety in every environment.

Additional information

Material

SBR/NR – a mixture of SBR and NR rubber

Maximum operating temperature [°C]

80

Minimum operating temperature [°C]

-40

Vacuum resistance

no

Standard length [m]

40, 60 / 120

Reinforcement

synthetic braid
