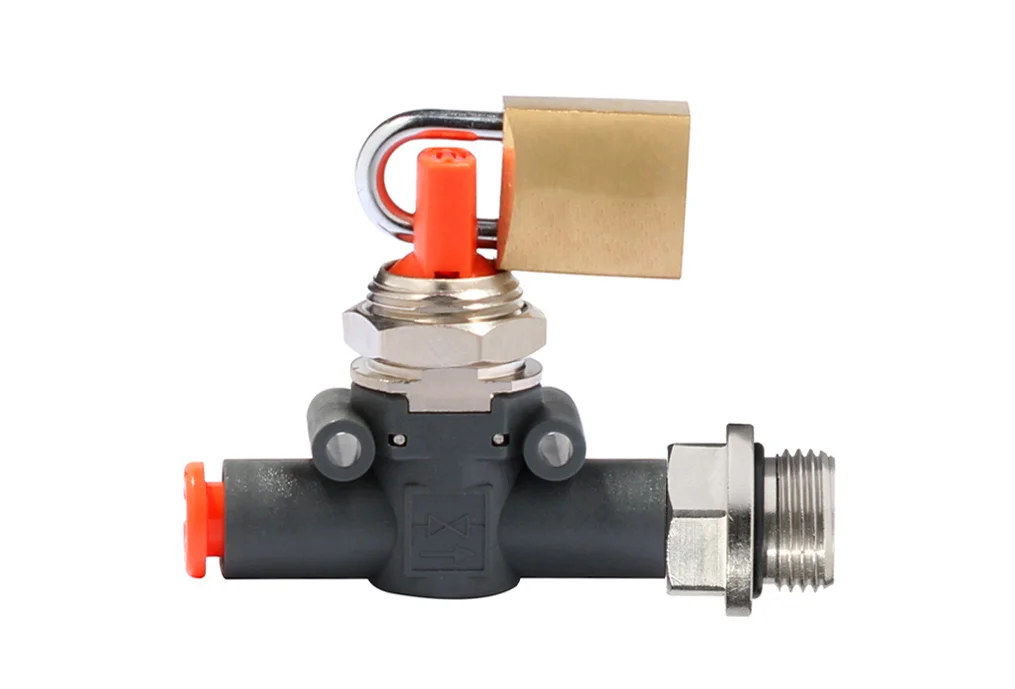

Valve shut-off pneumatic with venting V3V L with padlock (line – thread)

Additional information

Material

P – material (plastic)

Valve shut-off type V3V L two-position three-way, with venting the system pneumatic, in version of coupling push-in on one side and with connection threaded with an O-ring on the other side (line – thread). version closed on a padlock, secures against opening through unauthorised persons. supplied in set with padlock and two wrenches. Working pressure: 10 bar. Operating temperature: od -20°C up to +60°C. medium: filtered compressed air, oiled or not oiled.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
MW-9066309Shut-off valve with venting V3V L, hose 6 mm - 1/4" BSP male (outlet), with padlock-10In stock0 €
Enquiry
MW-9066310Shut-off valve with venting V3V L, hose 8 mm - 1/8" BSP male (outlet), with padlock-10In stock0 €
Enquiry
MW-9066311Shut-off valve with venting V3V L, hose 8 mm - 1/4" BSP male (outlet), with padlock-10In stock0 €
Enquiry
MW-9066312Shut-off valve with venting V3V L, hose 8 mm - 3/8" BSP male (outlet), with padlock-10In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Valve shut-off type V3V L two-position three-way, with venting the system pneumatic, in version of coupling push-in on one side and with connection threaded with an O-ring on the other side (line – thread). version closed on a padlock, secures against opening through unauthorised persons. supplied in set with padlock and two wrenches. Working pressure: 10 bar. Operating temperature: od -20°C up to +60°C. medium: filtered compressed air, oiled or not oiled.

Additional information

Material

P – material (plastic)

Do you need a larger quantity of products or a bespoke quote?
