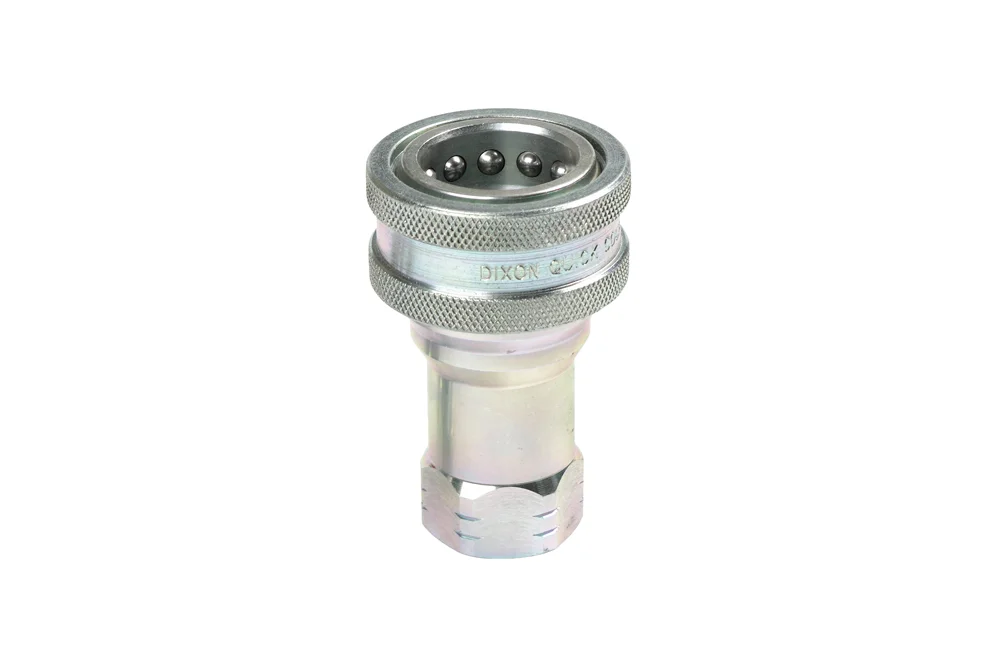

Socket quick coupling with female thread (3/16″ ÷ 1″), with valve, steel galvanized, PERFECTING

Additional information

Material

CS – steel (cast iron)

Standard length [m]

10, 2

Socket quick coupling with thread internal BSP or NPT (3/16″ ÷ 1″), with valve. ideal is suitable sie for media gas, because has two o-rings and ring thrust, with success can use also in hydraulics power for oil hydraulic, as and in industry for water, steam, fuels, oils czy chemicals. interchangeable with quick coupling ISO-B other manufacturers. Working pressure: up to 345 bar (depending on size quick coupling), (Safety factor 4:1). Material: steel carbon, galvanized. sealing: NBR. Operating temperature: od -40°C up to +121°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
PC-1HF1Socket with 1/8" NPT female, with a valve, galvanized steel-275In stock0 €
Enquiry
PC-2HBF2Socket with 1/4" BSP female, with a valve, galvanized steel-345In stock0 €
Enquiry
PC-2HF2Socket with 1/4" NPT female, with a valve, galvanized steel-345In stock0 €
Enquiry
PC-3HBF3Socket with 3/8" BSP female, with a valve, galvanized steel-275In stock0 €
Enquiry
PC-3HF3Socket with 3/8" NPT female, with a valve, galvanized steel-275In stock0 €
Enquiry
PC-4HBF4Socket with 1/2" BSP female, with a valve, galvanized steel-275In stock0 €
Enquiry
PC-4HF4Socket with 1/2" NPT female, with a valve, galvanized steel-275In stock0 €
Enquiry
PC-6HBF6Socket with 3/4" BSP female, with a valve, galvanized steel-275In stock0 €
Enquiry
PC-6HF6Socket with 3/4" NPT female, with a valve, galvanized steel-275In stock0 €
Enquiry
PC-8HBF8Socket with 1" BSP female, with a valve, galvanized steel-275In stock0 €
Enquiry
PC-8HF8Socket with 1" NPT female, with a valve, galvanized steel-275In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Socket quick coupling with thread internal BSP or NPT (3/16″ ÷ 1″), with valve. ideal is suitable sie for media gas, because has two o-rings and ring thrust, with success can use also in hydraulics power for oil hydraulic, as and in industry for water, steam, fuels, oils czy chemicals. interchangeable with quick coupling ISO-B other manufacturers. Working pressure: up to 345 bar (depending on size quick coupling), (Safety factor 4:1). Material: steel carbon, galvanized. sealing: NBR. Operating temperature: od -40°C up to +121°C.

Additional information

Material

CS – steel (cast iron)

Standard length [m]

10, 2
