Is the SPEEDFIT Plastic Elbow Connector suitable for both plastic and metal (copper, brass, aluminum) compressed air pipes?

Yes. The SPEEDFIT Plastic Elbow Connector is suitable for use with both plastic and metal (copper, brass, aluminum) compressed air pipes. Made from high-quality plastic and using push-fit technology, it provides secure, leak-free connections with a variety of pipe materials. It is rated to 10 bar at +23°C (7 bar at +70°C) and operates between -20°C and +70°C, making it appropriate for many industrial and workshop applications while enabling quick, tool-free installation.

Can the SPEEDFIT Plastic Elbow Connector withstand continuous duty cycles in industrial compressed air systems without performance degradation?

Yes — the SPEEDFIT Plastic Elbow Connector can withstand continuous duty cycles in industrial compressed air systems without performance degradation, provided system conditions remain within its specified limits. Key points: - Material & build: Made from high-quality plastic designed for durable, demanding environments, offering resistance to fatigue and routine mechanical stress. - Pressure ratings: Rated to 10 bar at +23°C (7 bar at +70°C). Continuous operation should remain at or below these pressures to avoid accelerated wear or failure. - Temperature range: Operates from −20°C to +70°C. Continuous duty at temperatures near the upper limit reduces pressure capacity (7 bar at +70°C), so maintain operating temperature and pressure within the combined ratings. - Compatibility & sealing: Push-fit design yields reliable, leak-free connections with plastic and metal pipes (copper, brass, aluminum), supporting long-term stability under repeated cycles. - Practical guidance: For true industrial continuous-duty assurance, keep system pressure and temperature within specified ranges, avoid pressure spikes above rated values, and follow routine inspection practices. When used within these specifications, the SPEEDFIT Plastic Elbow Connector provides stable, long-lasting performance in continuous-duty industrial compressed air applications.

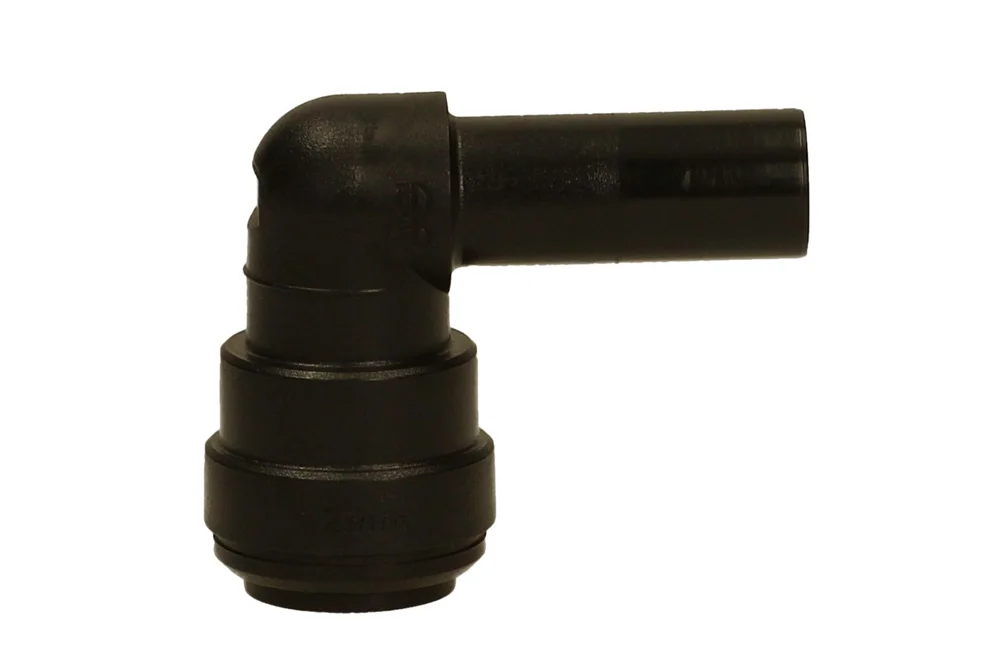

SPEEDFIT Plastic Elbow Connector

All products, Pneumatic piping systems/

Additional information

Material	P – material (plastic)

The elbow push-fit connector designed for the SPEEDFIT system is a reliable and efficient solution for creating durable compressed air installations. Manufactured from high-quality plastic, it ensures long-lasting performance and resistance to demanding working conditions. Its versatile design allows seamless connection with both plastic and metal pipes, including copper, brass, and aluminum, making it an excellent choice for a wide range of applications. With a working pressure of up to 10 bar at +23°C and 7 bar at +70°C, this connector guarantees safe and stable operation even under variable loads. The wide operating temperature range from -20°C to +70°C provides flexibility for use in diverse environments, from industrial facilities to workshops. Thanks to the push-fit technology, installation is quick, clean, and tool-free, significantly reducing assembly time while ensuring a secure and leak-free connection. This makes the connector not only practical but also highly cost-effective, offering professionals a dependable component that enhances efficiency and reliability in every compressed air system.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
JG-PM221212E	Plug-in elbow connector 12 mm x 12 mm	-	10
JG-PM221515E	Plug-in elbow connector 15 mm x 15 mm	-	10
JG-PM221818E	Plug-in elbow connector 18 mm x 18 mm	-	10
JG-PM222222E	Plug-in elbow connector 22 mm x 22 mm	-	10

The elbow push-fit connector designed for the SPEEDFIT system is a reliable and efficient solution for creating durable compressed air installations. Manufactured from high-quality plastic, it ensures long-lasting performance and resistance to demanding working conditions. Its versatile design allows seamless connection with both plastic and metal pipes, including copper, brass, and aluminum, making it an excellent choice for a wide range of applications. With a working pressure of up to 10 bar at +23°C and 7 bar at +70°C, this connector guarantees safe and stable operation even under variable loads. The wide operating temperature range from -20°C to +70°C provides flexibility for use in diverse environments, from industrial facilities to workshops. Thanks to the push-fit technology, installation is quick, clean, and tool-free, significantly reducing assembly time while ensuring a secure and leak-free connection. This makes the connector not only practical but also highly cost-effective, offering professionals a dependable component that enhances efficiency and reliability in every compressed air system.
