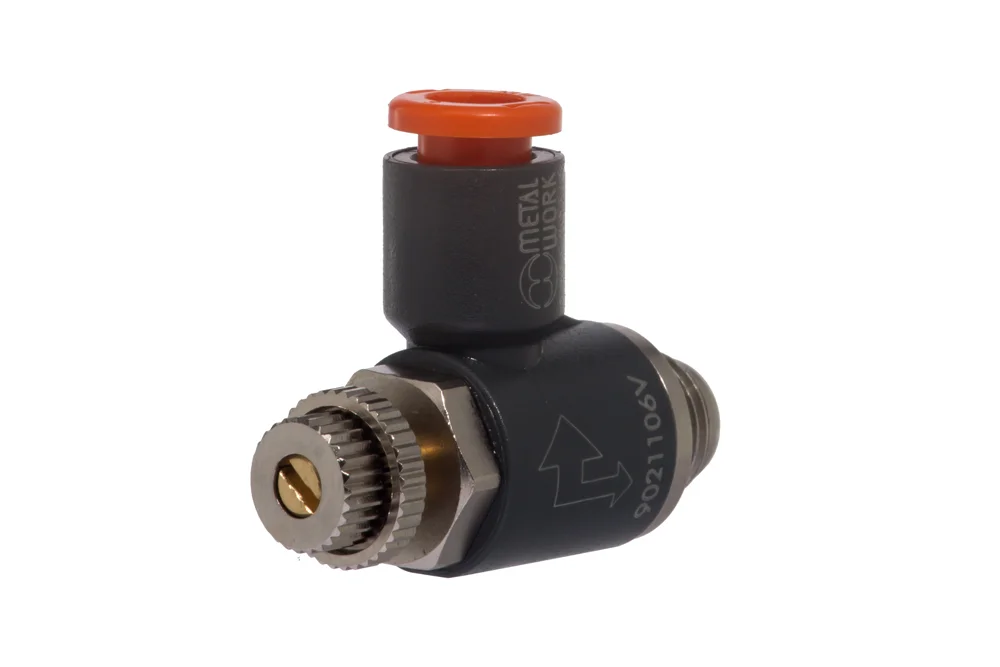

Plastic Pneumatic Throttle Valve MRF NTV for Diverter, COMPACT N Series

Q: How do I correctly set and lock the flow adjustment on the Plastic Pneumatic Throttle Valve MRF NTV for Diverter, COMPACT N Series to prevent accidental changes during operation?

To set and lock the flow adjustment on the Plastic Pneumatic Throttle Valve MRF NTV for Diverter, COMPACT N Series: 1. Mount the valve and connect the pneumatic hoses using the plug-in coupling. Ensure system pressure is within the 0–10 bar range and system is depressurized before adjustment if possible. 2. Adjust flow: Turn the control knob (or use a screwdriver on the adjustment slot) slowly until the desired flow rate or actuator speed is reached. 3. Lock the setting: While holding the knob in the chosen position, tighten the locking nut against the valve body to secure the adjustment and prevent accidental rotation. 4. Verify: Re-pressurize the system and run the actuator through several cycles to confirm the flow is correct and the setting remains fixed. 5. Maintenance tip: Periodically check the locking nut for tightness, especially after heavy vibration or frequent cycling. Keep operation within -10°C to +50°C and use correct size valve (M5–1/2") for best results.

All products, Pneumatic valves/

Additional information

Material	P – material (plastic)

The MRF NTV COMPACT “N” throttle-reverse valve is a versatile solution designed for integration with distribution valves in pneumatic systems, ensuring precise control of compressed air flow and direction. Its compact construction and plug-in coupling enable quick installation and effortless disassembly of pneumatic hoses, significantly reducing downtime during maintenance. The valve allows smooth adjustment of flow parameters through a convenient control knob or screwdriver, with the option to secure the chosen setting using a locking nut for reliable operation. Available in sizes M5, 1/8″, 1/4″, 3/8″, and 1/2″, it operates efficiently under pressures up to 10 bar and within a temperature range of -10°C to +50°C. Manufactured from durable plastic, it combines lightweight design with robust performance, making it an ideal choice for modern pneumatic applications where precision, flexibility, and ease of use are essential.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9021102V	Throttle check valve for MRF NTV valve, 4 mm hose, GZ BSP 1/8"	-	10	In stock	Enquiry
MW-9021106V	Throttle check valve for MRF NTV valve, 6 mm hose, GZ BSP 1/8"	-	10	In stock	Enquiry
MW-9021109V	Throttle check valve for MRF NTV valve, 8 mm hose, GZ BSP 1/4"	-	10	In stock	Enquiry
MW-9021111V	Throttle check valve for MRF NTV valve, 10 mm hose, GZ BSP 1/4"	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The MRF NTV COMPACT “N” throttle-reverse valve is a versatile solution designed for integration with distribution valves in pneumatic systems, ensuring precise control of compressed air flow and direction. Its compact construction and plug-in coupling enable quick installation and effortless disassembly of pneumatic hoses, significantly reducing downtime during maintenance. The valve allows smooth adjustment of flow parameters through a convenient control knob or screwdriver, with the option to secure the chosen setting using a locking nut for reliable operation. Available in sizes M5, 1/8″, 1/4″, 3/8″, and 1/2″, it operates efficiently under pressures up to 10 bar and within a temperature range of -10°C to +50°C. Manufactured from durable plastic, it combines lightweight design with robust performance, making it an ideal choice for modern pneumatic applications where precision, flexibility, and ease of use are essential.
