How does the Plastic T-Piece with SPEEDFIT Water Separator install in a 22 mm compressed air line and what maintenance is required to ensure optimal moisture separation?

Installation of the Plastic T-Piece with SPEEDFIT Water Separator in a 22 mm compressed air line: - Cut and deburr the 22 mm tube squarely. Ensure the pipe is clean and free of oils or debris. - Push the tube firmly into the SPEEDFIT connector until it seats against the stop. The push‑in SPEEDFIT design creates an immediate, pressure‑resistant seal without tools or thread sealing. - Orient the T‑Piece so the integrated water separator's drain port is vertically downward or easily accessible for discharge and maintenance. - Confirm system pressure does not exceed 10 bar at 23°C (or 7 bar at 70°C) and that ambient/line temperatures remain within −20°C to +70°C. Maintenance to ensure optimal moisture separation: - Regularly drain collected water from the separator—frequency depends on duty cycle and humidity (daily to weekly in humid/high‑use systems). - Inspect the fitting and tube connection periodically for leaks or wear; reseat or replace the tube if fitting retention weakens. - Check operating temperature and pressure remain within specified limits to preserve separator performance. - Clean or replace the separator element if applicable (follow manufacturer guidance); if the separator is non‑serviceable, replace the entire T‑Piece when performance drops. - Schedule preventive checks as part of routine compressed air system maintenance to prevent moisture carryover and protect downstream equipment.

Can the Plastic T-Piece with SPEEDFIT Water Separator be used with other 22 mm pipe materials (e.g., copper, PE) and are adapters needed for reliable sealing and performance?

Yes — the Plastic T-Piece with SPEEDFIT Water Separator is designed for 22 mm outer-diameter pipe systems and can be used with other 22 mm materials such as copper or PE, provided the correct connection method is used. SPEEDFIT-style fittings rely on a secure push-fit/sealing mechanism for reliable performance; compatibility depends on your pipe outer diameter and surface condition. Recommendations for reliable sealing and performance: - Use pipes with a true 22 mm outer diameter and smooth, deburred ends. Irregular or undersized/oversized pipe can compromise the seal. - For copper: ensure ends are clean, free of burrs and corrosion; cut squarely. Most push-fit SPEEDFIT connections accept standard 22 mm copper without additional adapters. - For PE and some plastic pipes: check wall thickness and outer diameter tolerance. Some PE variants may require an insert or liner to prevent bore collapse and to ensure a tight seal—use a manufacturer-recommended stiffening insert if specified. - If your pipe OD or wall profile differs from standard 22 mm (e.g., metric tolerances or non-standard multilayer composites), use an appropriate adapter or transition fitting rated for compressed air to guarantee pressure and temperature performance. - Always verify compatibility with the fitting manufacturer’s guidance and observe operating limits (up to 10 bar at +23°C, temperature range -20°C to +70°C). In short: compatible with standard 22 mm copper and many PE pipes without adapters; use inserts or adapters when pipe dimensions or materials deviate from standard to ensure reliable sealing and performance.

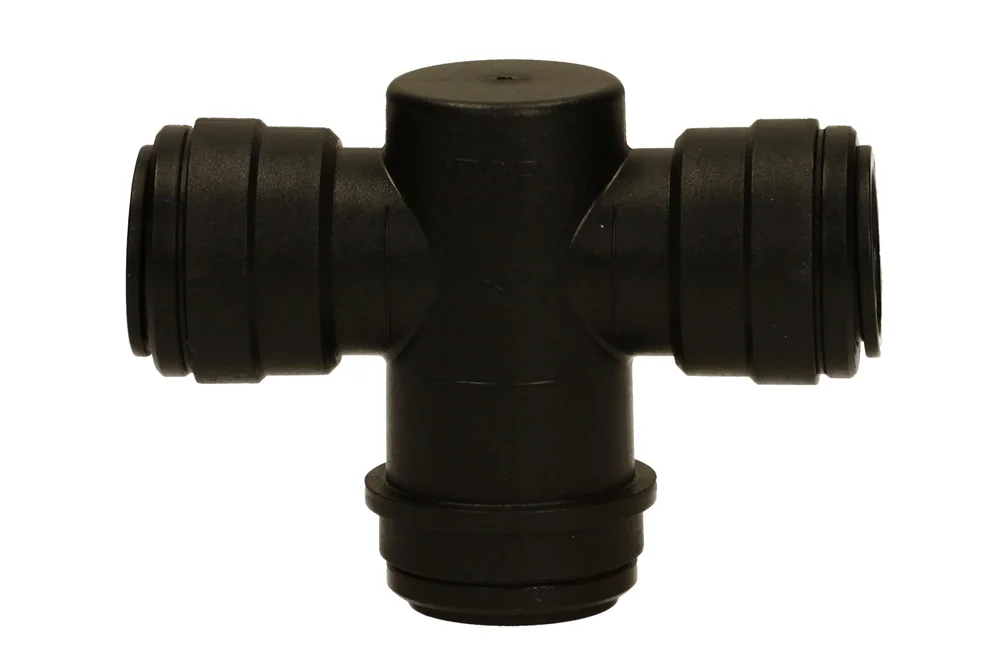

Plastic T-Piece with SPEEDFIT Water Separator

All products, Pneumatic piping systems/

Additional information

Material	P – material (plastic)

The SPEEDFIT tee with integrated water separator is a practical and reliable solution designed for compressed air installations, ensuring optimal performance and system protection. Engineered for pipes with an outer diameter of 22 mm, this high‑quality plastic fitting effectively removes moisture from the airflow, helping to extend the life of your equipment and maintain consistent efficiency. With a working pressure of up to 10 bar at +23°C and 7 bar at +70°C, it guarantees dependable operation even under demanding conditions. The wide operating temperature range from -20°C to +70°C makes it suitable for diverse environments, from cold storage facilities to high‑temperature industrial settings. Easy to install and maintain, this tee with water separator is an excellent choice for professionals seeking durability, safety, and long‑lasting performance in their compressed air systems.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]	Enquiry	Catalogue
JG-PMTT22E	Water separator 22 mm	-	10

The SPEEDFIT tee with integrated water separator is a practical and reliable solution designed for compressed air installations, ensuring optimal performance and system protection. Engineered for pipes with an outer diameter of 22 mm, this high‑quality plastic fitting effectively removes moisture from the airflow, helping to extend the life of your equipment and maintain consistent efficiency. With a working pressure of up to 10 bar at +23°C and 7 bar at +70°C, it guarantees dependable operation even under demanding conditions. The wide operating temperature range from -20°C to +70°C makes it suitable for diverse environments, from cold storage facilities to high‑temperature industrial settings. Easy to install and maintain, this tee with water separator is an excellent choice for professionals seeking durability, safety, and long‑lasting performance in their compressed air systems.
