Is the Pneumatic Emergency Shut-Off Valve, HoseGuard® compatible with my system’s pressure (4–18 bar) and connection types (GZ/GW BSP)?

Yes. The Pneumatic Emergency Shut-Off Valve, HoseGuard® is compatible with your system’s pressure range and connection types. It has a minimum operating pressure of 4 bar and a maximum working pressure of 18 bar, matching your 4–18 bar requirement. Connection options include GZ (male) BSP or GW (female) BSP inlet with a GW BSP outlet—select the appropriate inlet type to match your fittings. Also confirm flow rate, hose length/diameter and internal installation dimensions to ensure correct selection; Tubes International offers expert support if needed.

Can the Pneumatic Emergency Shut-Off Valve, HoseGuard® protect against hose bursts in installations with long hose runs or large bore diameters?

Yes — the Pneumatic Emergency Shut-Off Valve, HoseGuard® can protect against hose bursts in installations with long hose runs or large-bore diameters, provided it is properly selected and sized for the specific application. The device is certified to relevant safety standards (EN 983, EN 4414, ATEX Group II, TÜV) and is built for robust performance (aluminum body, POM or aluminum piston, stainless-steel spring, NBR seals) with operating parameters of 4–18 bar and −20°C to +80°C. Key considerations: - Selection must account for required flow rate, hose length and internal diameter, and overall installation geometry to ensure rapid and complete shut-off. - Connection options (GZ BSP or GW BSP inlet, GW BSP outlet) and internal dimensions affect performance in long runs or large bores. - For installations pushing the limits (very long lengths, very large diameters, or atypical internal layouts), expert sizing and confirmation are recommended. Tubes International offers professional support to size and recommend the optimal Pneumatic Emergency Shut-Off Valve, HoseGuard® for your specific system.

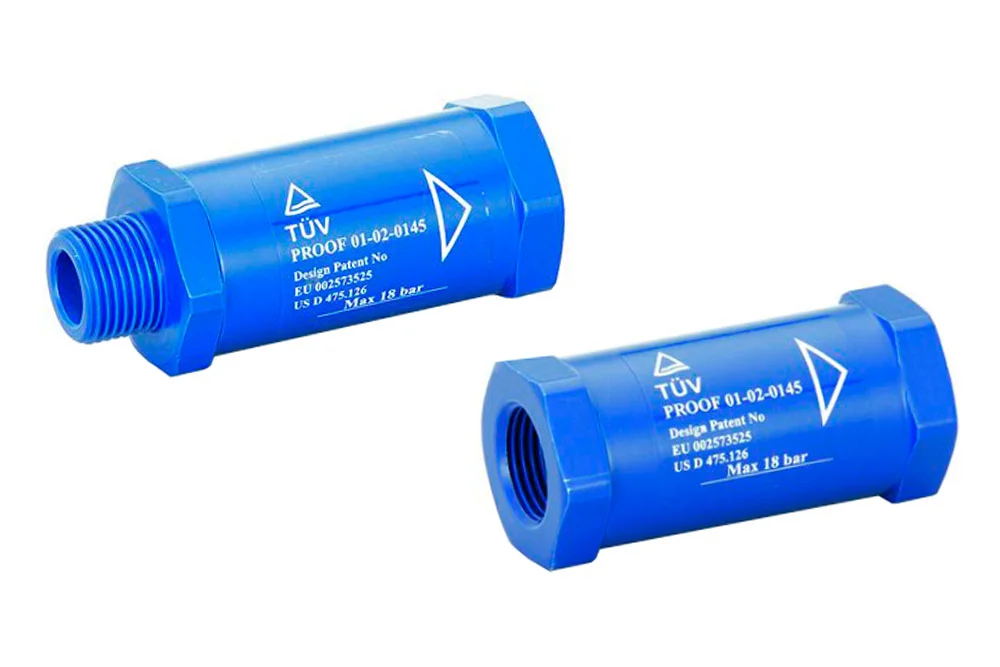

Valve closing emergency, pneumatic HoseGuard&reg

All products, Pneumatic accessories/

Additional information

Material	AL – aluminum

Effective valve closing compatible of all installations pneumatic o standard wear compressed air, which task is protection the operator and installation pneumatic in case jej damage (e.g. rupture tubes or bursting hose). Meets the requirements of: EN 983 § 5.3.4.3.2, EN 4414 §5.4.5.11.1, ATEX Group II Category II, TÜV 01-02-0145, TÜV AZ 77318 2. valve should select taking into account: value flow, length and diameter hose, a also diameter internal element installation. W case questions or doubts please o contact with Tubes International. Connection: BSP male or BSP female (inlet) / BSP female (outlet). Material body: aluminum. Material piston: POM (1/4″ ÷ 1/2″), aluminum (3/4″). Material spring: steel stainless. sealing: NBR. minimal pressure: 4 bar. Working pressure: 18 bar. Operating temperature: od -20°C up to +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EW-396-022	Valve closing awaryjny female/1/4" female	-	18	In stock	Enquiry
EW-396-023	Valve closing awaryjny female/3/8" female	-	18	In stock	Enquiry
EW-396-024	Valve closing awaryjny female/1/2" female	-	18	In stock	Enquiry
EW-396-025	Valve closing awaryjny female/3/4" female	-	18	In stock	Enquiry
EW-396-032	Valve closing awaryjny male/female 1/4"	-	18	In stock	Enquiry
EW-396-033	Valve closing awaryjny male/female 3/8"	-	18	In stock	Enquiry
EW-396-034	Valve closing awaryjny male/female 1/2"	-	18	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Effective valve closing compatible of all installations pneumatic o standard wear compressed air, which task is protection the operator and installation pneumatic in case jej damage (e.g. rupture tubes or bursting hose). Meets the requirements of: EN 983 § 5.3.4.3.2, EN 4414 §5.4.5.11.1, ATEX Group II Category II, TÜV 01-02-0145, TÜV AZ 77318 2. valve should select taking into account: value flow, length and diameter hose, a also diameter internal element installation. W case questions or doubts please o contact with Tubes International. Connection: BSP male or BSP female (inlet) / BSP female (outlet). Material body: aluminum. Material piston: POM (1/4″ ÷ 1/2″), aluminum (3/4″). Material spring: steel stainless. sealing: NBR. minimal pressure: 4 bar. Working pressure: 18 bar. Operating temperature: od -20°C up to +80°C.
