Is the Polypropylene Quick-Connect Bulkhead Hose Socket with Valve, PLC Series DN 6.3 compatible with deionized water and chemical cleaning agents?

Yes. The Polypropylene Quick-Connect Bulkhead Hose Socket with Valve, PLC Series DN 6.3 is compatible with deionized water and many chemical cleaning agents. Its polypropylene construction provides good chemical resistance, and the EPDM o‑ring is suitable for a wide range of cleaners and aqueous solutions. The product is explicitly described for use in deionized water filtration systems and washing installations, confirming suitability for such applications. Operating limits: up to 8.3 bar and 0°C to +71°C—ensure your cleaning agents and process temperatures/pressures fall within these ranges. For aggressive solvents, strong acids/alkalis outside EPDM compatibility, or elevated temperatures above 71°C, verify chemical compatibility with polypropylene and EPDM or consult the manufacturer.

Can the Polypropylene Quick-Connect Bulkhead Hose Socket with Valve, PLC Series DN 6.3 be used continuously at 8.3 bar and what are recommended pressure safety margins?

Yes — the Polypropylene Quick-Connect Bulkhead Hose Socket with Valve, PLC Series DN 6.3 is rated for a working pressure up to 8.3 bar and an operating temperature range 0°C to +71°C, so it can be used continuously at 8.3 bar provided operating conditions stay within those limits (temperature, chemical compatibility, and installation stresses). Recommended safety margins: - For continuous service, derate working pressure by 20–30% for long life and to accommodate pressure spikes (practical continuous limit ~5.8–6.6 bar). - Allow an additional transient margin for pressure surges; avoid repeated shocks above the rated 8.3 bar. - If system temperature approaches the upper limit or aggressive chemicals are present, increase the margin further (consider 40% derating). - Where safety-critical or per applicable codes, include a pressure relief device set below the maximum rated pressure (e.g., ≤8.3 bar) and design for ≥1.5× safety factor for worst-case failure scenarios. In summary: technically usable at 8.3 bar, but for reliable continuous operation and longevity use a reduced working pressure (≈6 bar recommended) and protect the line from surges and elevated temperatures.

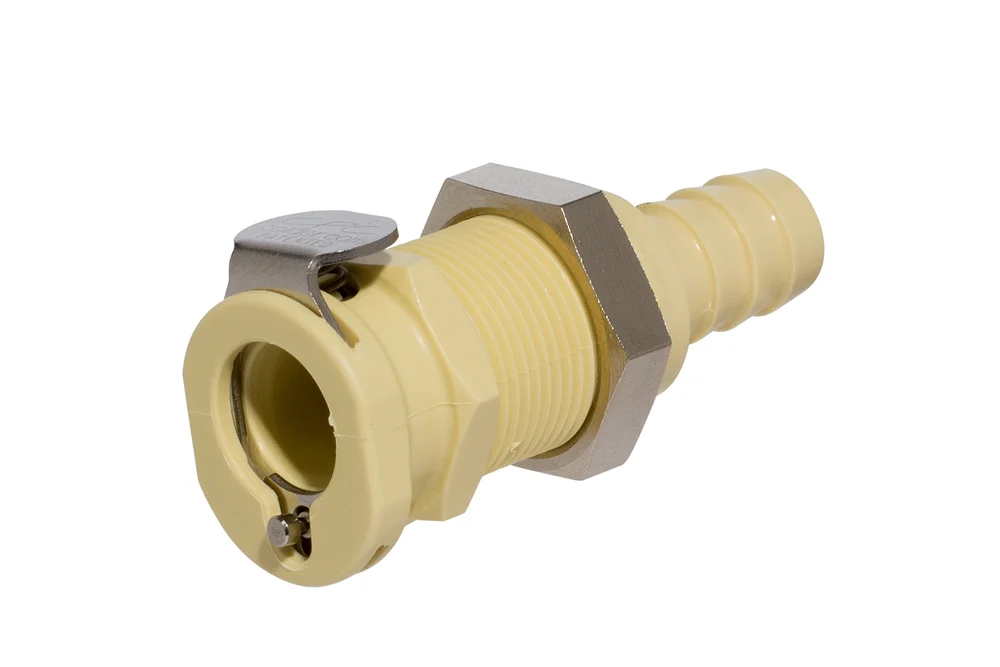

Polypropylene Quick-Connect Bulkhead Hose Socket with Valve, PLC Series DN 6.3

All products, Industrial plastic quick couplings/

Additional information

Material	P – material (plastic)

This medium-sized quick-connect socket with hose end is an advanced solution designed for versatile applications such as washing installations, deionized water filtration systems, industrial machinery, and leak detection setups. Its innovative construction, free from traditional balls and securing sleeves, ensures a smooth, reliable connection and effortless one-handed operation, making daily use faster and more convenient. The secure fit is confirmed by a distinct audible click, providing users with confidence and precision in every connection. Manufactured from durable polypropylene and equipped with a high-quality EPDM o-ring, the socket guarantees excellent resistance to wear, chemicals, and demanding working environments. With a working pressure capacity of up to 8.3 bar and an operating temperature range from 0°C to +71°C, it delivers outstanding performance and long-lasting reliability. This connector is the ideal choice for professionals seeking efficiency, safety, and durability in fluid handling systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
CC-PLV-07-PP	PLC socket DN6.4 for 1/4" hose with nut, with valve, partitioned, polypropylene	-	8.3	In stock	0 €		Enquiry
CC-PLV-09-PP	PLC socket DN6.4 for 3/8" hose with nut, with valve, grooved, polypropylene	-	8.3	In stock	0 €		Enquiry
