Is the Polypropylene Hose Quick Connect Plug with Nut & Valve, PMC Series DN 3.2 compatible with common gas detection and medical device fittings?

Yes. The Polypropylene Hose Quick Connect Plug with Nut & Valve, PMC Series DN 3.2 is explicitly designed for demanding applications including gas detection systems and medical equipment, so it is compatible with common fittings used in those fields when the mating components match its DN 3.2 size and connection type. Key compatibility factors from the description: - Material and sealing: Polypropylene body with an EPDM O‑ring provides chemical resistance and reliable sealing appropriate for many gas detection and medical device environments. - Integrated valve and audible click: The built‑in valve and positive “click” retention ensure fast, secure, leak‑resistant connections common in these industries. - Pressure and temperature range: Rated to 8.3 bar and 0°C to +71°C, suitable for typical low‑pressure gas detection and many medical fluid/gas applications. - Form factor: Compact length and robust construction support integration into space‑constrained systems and repeated connect/disconnect cycles. Caveat: Confirm compatibility with your specific system by checking that the mating connector type, exact DN 3.2 dimensions, required certification (e.g., medical or gas safety approvals), and any specific chemical or sterilization demands are met.

Can the Polypropylene Hose Quick Connect Plug with Nut & Valve, PMC Series DN 3.2 be autoclaved or sterilized without degrading the EPDM O-ring or polypropylene body?

Polypropylene Hose Quick Connect Plug with Nut & Valve, PMC Series DN 3.2 cannot be reliably autoclaved without risk of degradation. The body is polypropylene and the seal is EPDM — both materials have limited heat tolerance compared with standard autoclave conditions (typically 121°C–134°C). The product’s specified operating temperature range is 0°C to +71°C, well below autoclave temperatures, and exposure to steam sterilization will likely deform the polypropylene and accelerate EPDM aging, causing loss of seal integrity and mechanical performance. For sterilization, use low-temperature methods compatible with polypropylene and EPDM (for example, certain chemical sterilants or validated gas plasma/EVO sterilization) only after confirming compatibility with your sterilization protocol and validating seal performance post-process. Always consult the manufacturer for validated sterilization recommendations before autoclaving or applying alternative sterilization methods.

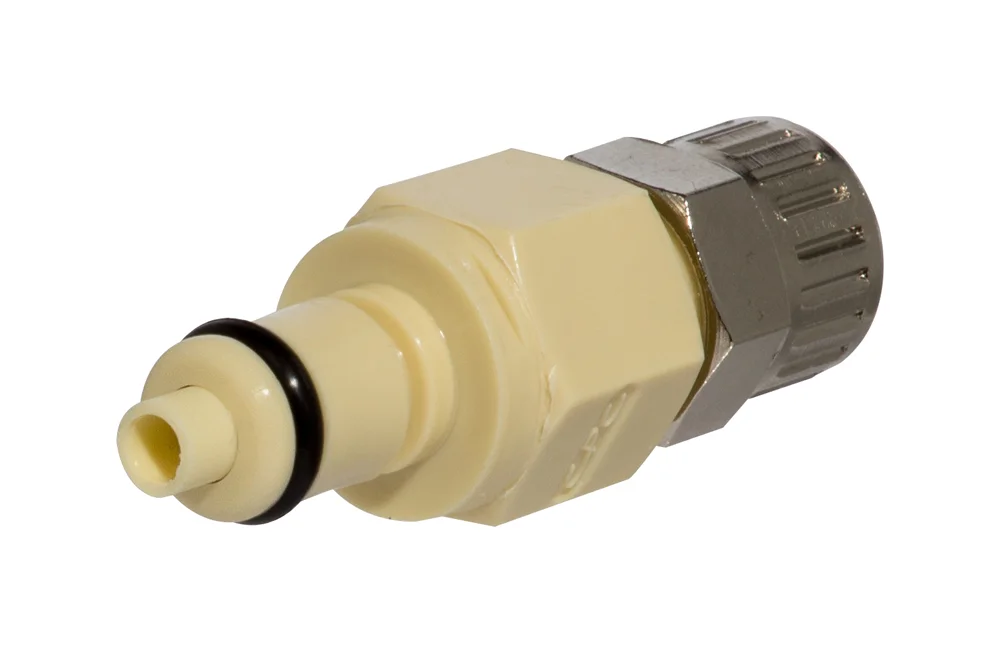

Polypropylene Hose Quick Connect Plug with Nut & Valve, PMC Series DN 3.2

All products, Industrial plastic quick couplings/

Additional information

Material	P – material (plastic)

The quick-connect plug with nut and integrated valve is a reliable solution designed for demanding applications such as gas detection systems, medical equipment, chemical analyzers, inkjet printing devices, and precision optical instruments. Its user-friendly construction ensures fast and secure attachment, with a distinct audible click confirming a proper seal every time. Manufactured from durable polypropylene and equipped with an EPDM O-ring, the connector guarantees excellent resistance to wear, chemicals, and temperature fluctuations. With a working pressure capacity of up to 8.3 bar and an operating range from 0°C to +71°C, it delivers consistent performance even in challenging environments. The compact total length (L [mm]) allows for easy integration into various systems, while the robust design ensures long-lasting reliability. This plug is the ideal choice for professionals seeking efficiency, safety, and precision in fluid and gas handling applications.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
CC-PMV-29-PP	PMC DN3.2 plug for hose 6.4x4.3 with nut, with valve, polypropylene	4	8.3	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The quick-connect plug with nut and integrated valve is a reliable solution designed for demanding applications such as gas detection systems, medical equipment, chemical analyzers, inkjet printing devices, and precision optical instruments. Its user-friendly construction ensures fast and secure attachment, with a distinct audible click confirming a proper seal every time. Manufactured from durable polypropylene and equipped with an EPDM O-ring, the connector guarantees excellent resistance to wear, chemicals, and temperature fluctuations. With a working pressure capacity of up to 8.3 bar and an operating range from 0°C to +71°C, it delivers consistent performance even in challenging environments. The compact total length (L [mm]) allows for easy integration into various systems, while the robust design ensures long-lasting reliability. This plug is the ideal choice for professionals seeking efficiency, safety, and precision in fluid and gas handling applications.
