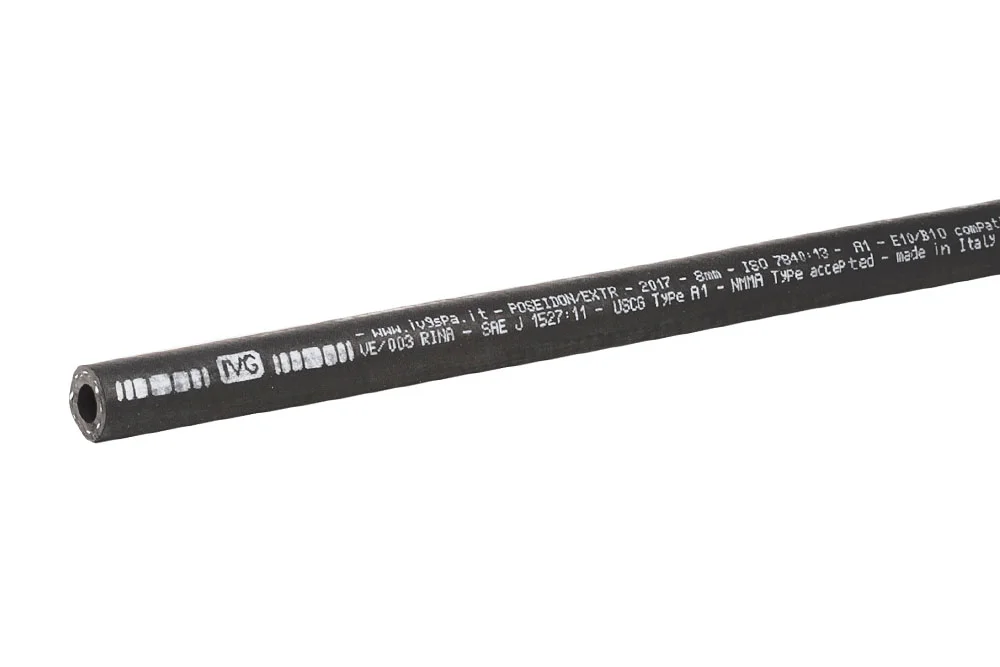

Hose delivery for installation fuel on ships, boats POSEIDON EX

Additional information

Material

synthetic rubber

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-20

Vacuum resistance

no

Standard length [m]

40, 50, 60

Reinforcement

synthetic braid

Soft, flexible, extruded hose delivery for conveying gasoline and oil drive at low pressure, fire-resistant, for small vessels – recreational boats up to 24 m long. intended for installation fuel engines stationary on ships, boats motor, yachts etc. Suitable for unleaded petrol, petrol with up to 10% ethanol added (E10 petrol), diesel oil and diesel oil with 10% FAME esters added (B10 – biodiesel). compliant with ISO 7840 type A1 (fireproof, permeability vapours fuels smaller or equal 100 g/m 2 /24 h), compliant with the directive 94/25/EC, certified RINA, compliant with SAE 1527, USCG type A1. Layer inner with black, seamless rubber synthetic, resistant to oils and fuels up to 50% content hydrocarbons aromatic. Reinforcement synthetic a braid textile. Layer outer with black, resistant to fire, seamless rubber synthetic, resistant to aging, greases, conditions atmospheric and temperature (resistance to fire: ISO 7840 Annex A: hose filled fuel should withstand flame through 2.5 min). Inner layer: black synthetic rubber. Reinforcement: a synthetic braid. Outer layer: black synthetic rubber. Working pressure: from 2.5 bar to 3.4 bar – depending on the diameter hose. Operating temperature: od -20°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IV-POSEIDON-EX-06Hose POSEIDON/EX 6x14 mm63.4In stock0 €
Enquiry
IV-POSEIDON-EX-08Hose POSEIDON/EX 8x16 mm83.4In stock0 €
Enquiry
IV-POSEIDON-EX-10Hose POSEIDON/EX 10x19 mm103.4In stock0 €
Enquiry
IV-POSEIDON-EX-13Hose POSEIDON/EX 13x22 mm122.5In stock0 €
Enquiry
IV-POSEIDON-EX-16Hose POSEIDON/EX 16x25 mm162.5In stock0 €
Enquiry
IV-POSEIDON-EX-19Hose POSEIDON/EX 19x28 mm202.5In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Soft, flexible, extruded hose delivery for conveying gasoline and oil drive at low pressure, fire-resistant, for small vessels – recreational boats up to 24 m long. intended for installation fuel engines stationary on ships, boats motor, yachts etc. Suitable for unleaded petrol, petrol with up to 10% ethanol added (E10 petrol), diesel oil and diesel oil with 10% FAME esters added (B10 – biodiesel). compliant with ISO 7840 type A1 (fireproof, permeability vapours fuels smaller or equal 100 g/m 2 /24 h), compliant with the directive 94/25/EC, certified RINA, compliant with SAE 1527, USCG type A1. Layer inner with black, seamless rubber synthetic, resistant to oils and fuels up to 50% content hydrocarbons aromatic. Reinforcement synthetic a braid textile. Layer outer with black, resistant to fire, seamless rubber synthetic, resistant to aging, greases, conditions atmospheric and temperature (resistance to fire: ISO 7840 Annex A: hose filled fuel should withstand flame through 2.5 min). Inner layer: black synthetic rubber. Reinforcement: a synthetic braid. Outer layer: black synthetic rubber. Working pressure: from 2.5 bar to 3.4 bar – depending on the diameter hose. Operating temperature: od -20°C up to +100°C.

Additional information

Material

synthetic rubber

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-20

Vacuum resistance

no

Standard length [m]

40, 50, 60

Reinforcement

synthetic braid

Do you need a larger quantity of products or a bespoke quote?
