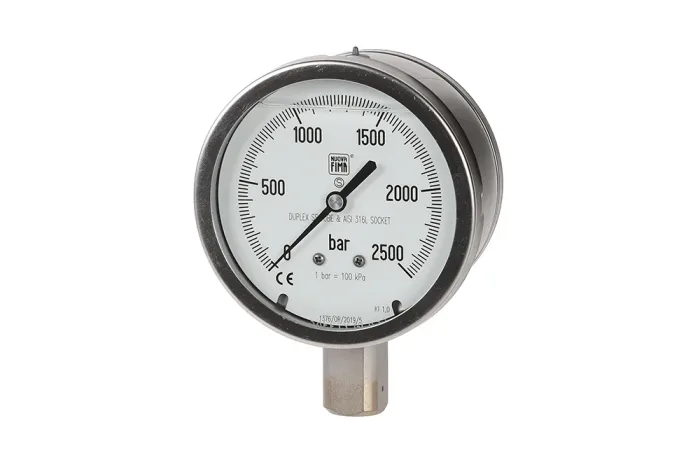

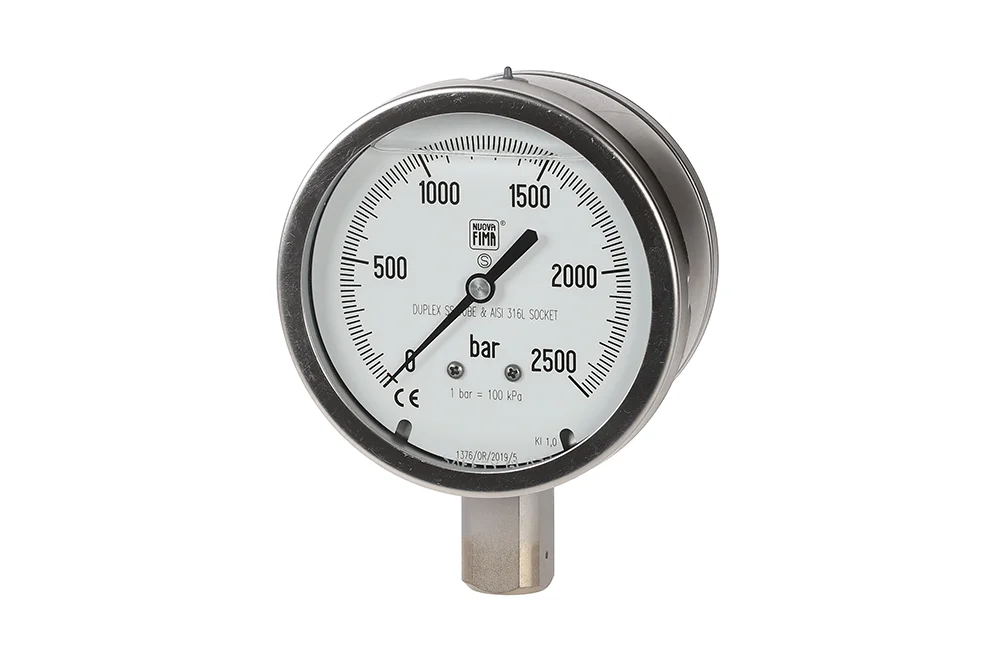

Pressure gauge 2500 ÷ 4000 bar 1.0 safe (S3) with connection process HP, MGS 22 (100, 150 mm)
Pressure gauge series MGS22, filled oil silicone, for applications high-pressure, for measuring pressure gases and liquids o low viscosity and non-crystallising, in made safe S3 (EN 837-2), of special connections HP. meets latest standard concerning pressure gauge ultra-high-pressure DIN 16001. has front partition protecting („solid front”, „baffle wall”) and rear element securing („blow out back”), protecting the operator in case depressurisation element pressure (tubes Bourdon). Connection process is welded (TIG) for housing, co reinforces pressure gauge and ensures better tightness housing. used mainly in technology cutting or cleaning various materials with use stream water under high pressure, e.g. in machines for cutting water, in pumps and turbines water. filling pressure gauge oil silicone promotes: reduction fluctuations indicator, reduction wear parts moving mechanism at occurring pulsations pressure and vibration. also prevents condensation and formation atmosphere corrosion inside pressure gauge, which could damage parts internal. On request available pressure gauge MGS22 for 5000 and 6000 bar (150 mm), Class accuracy 1.6 compliant with the standard DIN 16001. Connection: bottom. Diameter disc: 100 mm, 150 mm. range pressures: 0÷2500 bar, 0÷3000 bar, 0÷4000 bar. Class accuracy: 1.0. temperature ambient: od -40°C up to +65°C. temperature medium: maximum up to +65°C. Material housing: steel stainless. sight glass: glass safe laminated. Material Connections: steel stainless AISI 316L. tube Bourdon: steel stainless duplex. mechanism: steel stainless. filling: oil silicone. Class safety: S3. Protection degree: IP 67 (IEC 529).
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Pressure gauge series MGS22, filled oil silicone, for applications high-pressure, for measuring pressure gases and liquids o low viscosity and non-crystallising, in made safe S3 (EN 837-2), of special connections HP. meets latest standard concerning pressure gauge ultra-high-pressure DIN 16001. has front partition protecting („solid front”, „baffle wall”) and rear element securing („blow out back”), protecting the operator in case depressurisation element pressure (tubes Bourdon). Connection process is welded (TIG) for housing, co reinforces pressure gauge and ensures better tightness housing. used mainly in technology cutting or cleaning various materials with use stream water under high pressure, e.g. in machines for cutting water, in pumps and turbines water. filling pressure gauge oil silicone promotes: reduction fluctuations indicator, reduction wear parts moving mechanism at occurring pulsations pressure and vibration. also prevents condensation and formation atmosphere corrosion inside pressure gauge, which could damage parts internal. On request available pressure gauge MGS22 for 5000 and 6000 bar (150 mm), Class accuracy 1.6 compliant with the standard DIN 16001. Connection: bottom. Diameter disc: 100 mm, 150 mm. range pressures: 0÷2500 bar, 0÷3000 bar, 0÷4000 bar. Class accuracy: 1.0. temperature ambient: od -40°C up to +65°C. temperature medium: maximum up to +65°C. Material housing: steel stainless. sight glass: glass safe laminated. Material Connections: steel stainless AISI 316L. tube Bourdon: steel stainless duplex. mechanism: steel stainless. filling: oil silicone. Class safety: S3. Protection degree: IP 67 (IEC 529).
Additional information
| Maximum operating temperature [°C] | 65 |
|---|---|
| Minimum operating temperature [°C] | -40 |
