Is the Stainless Steel Pressure Sleeve, FM Type compatible with standard metric compression fittings and nuts?

Yes. The Stainless Steel Pressure Sleeve, FM Type is designed specifically to sit inside the nut of metric compression fittings and to compress the metric pipe against the fitting body. Manufactured from AISI 316 stainless steel, it provides precise alignment, reliable sealing under high pressure, corrosion resistance, and long service life—making it fully compatible with standard metric compression fittings and nuts used in industrial, marine, chemical, and food-processing systems.

Can the Stainless Steel Pressure Sleeve, FM Type withstand prolonged exposure to corrosive chemicals and saltwater without performance loss?

Can the Stainless Steel Pressure Sleeve, FM Type withstand prolonged exposure to corrosive chemicals and saltwater without performance loss? Yes. The Stainless Steel Pressure Sleeve, FM Type is manufactured from premium AISI 316 stainless steel, a material specifically chosen for its exceptional corrosion resistance. AISI 316 contains molybdenum, which significantly improves resistance to pitting and crevice corrosion in chloride-rich environments such as seawater, and it performs well against many common corrosive chemicals found in industrial processes. The sleeve’s robust construction and precision engineering ensure it maintains a tight, durable seal and consistent alignment under high pressure, reducing the risk of degradation-related leaks or performance loss. Caveats: While AISI 316 is highly resistant, very aggressive chemicals (strong acids, chlorides at elevated temperatures, or specialized industrial solvents) and extreme operating conditions can still cause corrosion over time. For continuous exposure to highly aggressive media or unusually severe environments, verify chemical compatibility for specific fluids, temperatures, and concentrations, or consider higher-alloy materials (e.g., duplex stainless steels, Hastelloy) or protective coatings. Proper installation, regular inspection, and maintenance will also help preserve long-term performance.

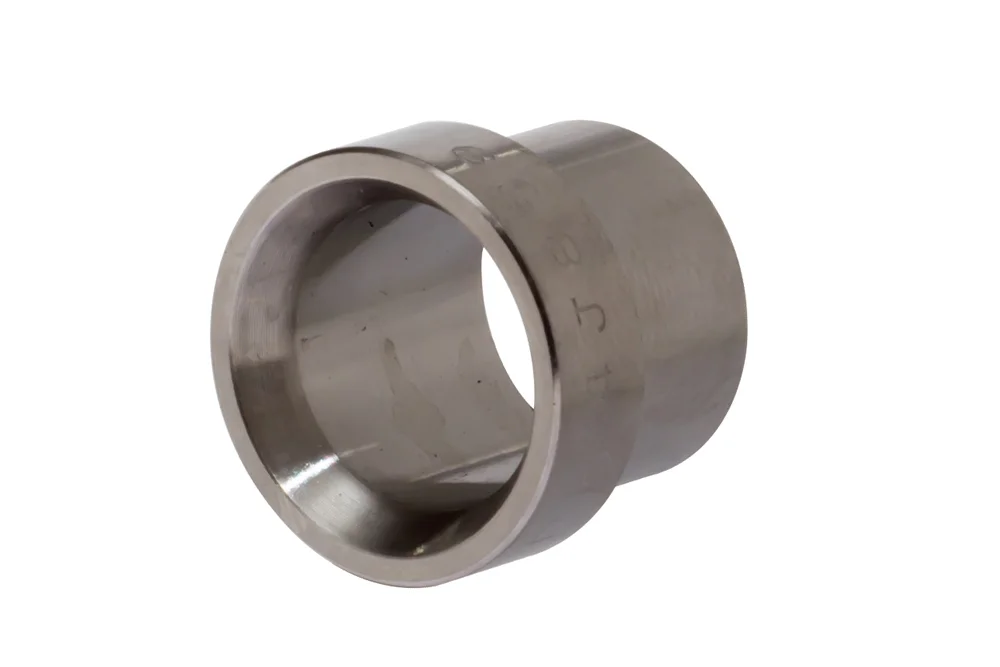

Stainless Steel Pressure Sleeve, FM Type

Additional information

Material	SS – stainless steel

The FM-type pressure sleeve is a precision-engineered component designed to ensure secure and reliable connections in demanding piping systems. Placed directly inside the nut, it enables optimal compression of the metric pipe against the fitting, guaranteeing a tight and durable seal even under high pressure. Manufactured from premium AISI 316 stainless steel, the sleeve offers outstanding resistance to corrosion, making it ideal for use in harsh industrial environments, including chemical processing, marine applications, and food production. Its robust construction not only enhances the safety and efficiency of installations but also extends the service life of the entire system. By ensuring precise alignment and consistent performance, the FM-type pressure sleeve provides a cost-effective and maintenance-friendly solution for professionals who value reliability, durability, and uncompromising quality in every connection.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-FM-06-SS	6 mm bushing, AISI 316	6	-	In stock	Enquiry
HJ-FM-08-SS	8 mm bushing, AISI 316	8	-	In stock	Enquiry
HJ-FM-10-SS	10 mm bushing, AISI 316	10	-	In stock	Enquiry
HJ-FM-12-SS	12 mm bushing, AISI 316	12	-	In stock	Enquiry
HJ-FM-14-SS	14 mm bushing, AISI 316	14	-	In stock	Enquiry
HJ-FM-15-SS	15 mm bushing, AISI 316	16	-	In stock	Enquiry
HJ-FM-16-SS	16 mm bushing, AISI 316	16	-	In stock	Enquiry
HJ-FM-18-SS	18 mm bushing, AISI 316	18	-	In stock	Enquiry
HJ-FM-20-SS	20 mm bushing, AISI 316	20	-	In stock	Enquiry
HJ-FM-25-SS	25 mm sleeve, AISI 316	25	-	In stock	Enquiry
HJ-FM-30-SS	30 mm sleeve, AISI 316	30	-	In stock	Enquiry
HJ-FM-32-SS	32 mm bushing, AISI 316	32	-	In stock	Enquiry
HJ-FM-38-SS	38 mm sleeve, AISI 316	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The FM-type pressure sleeve is a precision-engineered component designed to ensure secure and reliable connections in demanding piping systems. Placed directly inside the nut, it enables optimal compression of the metric pipe against the fitting, guaranteeing a tight and durable seal even under high pressure. Manufactured from premium AISI 316 stainless steel, the sleeve offers outstanding resistance to corrosion, making it ideal for use in harsh industrial environments, including chemical processing, marine applications, and food production. Its robust construction not only enhances the safety and efficiency of installations but also extends the service life of the entire system. By ensuring precise alignment and consistent performance, the FM-type pressure sleeve provides a cost-effective and maintenance-friendly solution for professionals who value reliability, durability, and uncompromising quality in every connection.
