Spiral Hose Cover – Durable Protector for Hoses

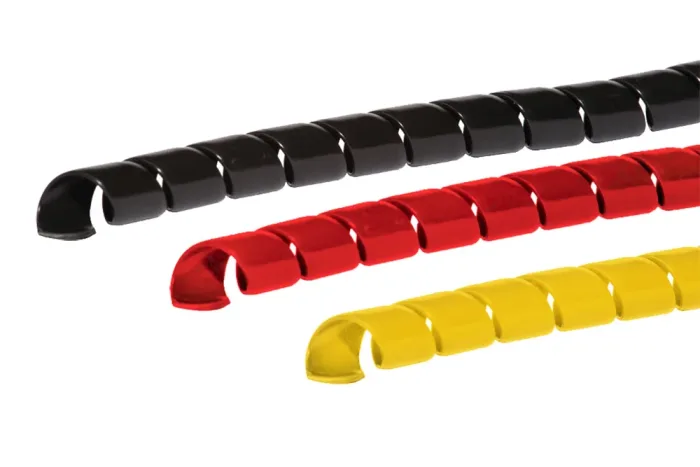

The PROTECTOR spiral cover is a durable and highly effective solution for safeguarding hoses against abrasion, impacts, and crushing, while also keeping multiple hoses neatly bundled together. Designed from high-quality polyethylene (HDPE), it ensures long-lasting resistance to acids, oils, solvents, and harmful UV radiation, making it ideal for demanding industrial environments. Its bright color options—black, yellow, and red—enhance visibility and safety in the workplace, while the wide operating temperature range from -50°C to +100°C guarantees reliable performance in extreme conditions. For hose diameters between 75 mm and 140 mm, the cover features a practical opening that allows easy extension into longer sections, ensuring flexibility and convenience during installation. Simple to mount both before and after hose assembly, the PROTECTOR spiral cover combines robust protection with user-friendly application, offering a professional and efficient way to extend the service life of hoses and improve operational safety.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| SF-PROTECTOR-012BK | HDPE spiral cover 12/9.6 mm, black | - | - | |
| SF-PROTECTOR-012R | HDPE spiral cover 12/9.6 mm, red | - | - | |
| SF-PROTECTOR-012Y | HDPE spiral cover 12/9.6 mm, yellow | - | - | |
| SF-PROTECTOR-016BK | HDPE spiral cover 16/13.4 mm, black | - | - | |
| SF-PROTECTOR-016R | HDPE spiral cover 16/13.4 mm, red | - | - | |
| SF-PROTECTOR-016Y | HDPE spiral cover 16/13.4 mm, yellow | - | - | |
| SF-PROTECTOR-020BK | HDPE spiral cover 20/16 mm, black | - | - | |
| SF-PROTECTOR-020R | HDPE spiral cover 20/16 mm, red | - | - | |
| SF-PROTECTOR-020Y | HDPE spiral cover 20/16 mm, yellow | - | - | |
| SF-PROTECTOR-025BK | HDPE spiral cover 25/20.6 mm, black | - | - | |
| SF-PROTECTOR-025R | HDPE spiral cover 25/20.6 mm, red | - | - | |
| SF-PROTECTOR-025Y | HDPE spiral cover 25/20.6 mm, yellow | - | - | |
| SF-PROTECTOR-032BK | HDPE spiral cover 32/27 mm, black | - | - | |
| SF-PROTECTOR-032R | HDPE spiral cover 32/27 mm, red | - | - | |
| SF-PROTECTOR-032Y | HDPE spiral cover 32/27 mm, yellow | - | - | |
| SF-PROTECTOR-040BK | HDPE spiral cover 40/34.6 mm, black | - | - | |
| SF-PROTECTOR-040R | HDPE spiral cover 40/34.6 mm, red | - | - | |
| SF-PROTECTOR-040Y | HDPE spiral cover 40/34.6 mm, yellow | - | - | |
| SF-PROTECTOR-050BK | HDPE spiral cover 50/43.2 mm, black | - | - | |
| SF-PROTECTOR-050R | HDPE spiral cover 50/43.2 mm, red | - | - | |
| SF-PROTECTOR-050Y | HDPE spiral cover 50/43.2 mm, yellow | - | - | |
| SF-PROTECTOR-063BK | HDPE spiral cover 63/55.6 mm, black | - | - | |
| SF-PROTECTOR-063R | HDPE spiral cover 63/55.6 mm, red | - | - | |
| SF-PROTECTOR-063Y | HDPE spiral cover 63/55.6 mm, yellow | - | - | |
| SF-PROTECTOR-075BK | HDPE spiral cover 75/66.2 mm, black | - | - | |
| SF-PROTECTOR-075R | HDPE spiral cover 75/66.2 mm, red | - | - | |
| SF-PROTECTOR-075Y | HDPE spiral cover 75/66.2 mm, yellow | - | - | |
| SF-PROTECTOR-090BK | HDPE spiral cover 90/80.2 mm, black | - | - | |
| SF-PROTECTOR-090R | HDPE spiral cover 90/80.2 mm, red | - | - | |
| SF-PROTECTOR-090Y | HDPE spiral cover 90/80.2 mm, yellow | - | - | |
| SF-PROTECTOR-110BK | HDPE spiral cover 110/99 mm, black | - | - | |
| SF-PROTECTOR-110R | HDPE spiral cover 110/99 mm, red | - | - | |
| SF-PROTECTOR-110Y | HDPE spiral cover 110/99 mm, yellow | - | - | |
| SF-PROTECTOR-140BK | HDPE spiral cover 140/127 mm, black | - | - | |
| SF-PROTECTOR-140R | HDPE spiral cover 140/127 mm, red | - | - | |
| SF-PROTECTOR-140Y | HDPE spiral cover 140/127 mm, yellow | - | - |
The PROTECTOR spiral cover is a durable and highly effective solution for safeguarding hoses against abrasion, impacts, and crushing, while also keeping multiple hoses neatly bundled together. Designed from high-quality polyethylene (HDPE), it ensures long-lasting resistance to acids, oils, solvents, and harmful UV radiation, making it ideal for demanding industrial environments. Its bright color options—black, yellow, and red—enhance visibility and safety in the workplace, while the wide operating temperature range from -50°C to +100°C guarantees reliable performance in extreme conditions. For hose diameters between 75 mm and 140 mm, the cover features a practical opening that allows easy extension into longer sections, ensuring flexibility and convenience during installation. Simple to mount both before and after hose assembly, the PROTECTOR spiral cover combines robust protection with user-friendly application, offering a professional and efficient way to extend the service life of hoses and improve operational safety.
Additional information
| Maximum operating temperature [°C] | 100 |
|---|---|
| Minimum operating temperature [°C] | -50 |
| Standard length [m] | 10, 100, 120, 15, 152.4, 20, 25, 6 |
