Is the IBC Flat PTFE Gasket for PN Flange suitable for use with aggressive chemicals at temperatures down to -200°C and pressures up to 300 bar?

Yes. The IBC Flat PTFE Gasket for PN Flange Format is suitable for use with aggressive chemicals at temperatures down to −200°C and pressures up to 300 bar. Manufactured from high‑quality PTFE and compliant with PN‑EN 1514‑1, it offers excellent resistance to aggressive media and extreme conditions, with an operating range of −200°C to +220°C and a working pressure up to 300 bar. Correct selection must consider the specific medium and exact operating temperature, so consultation with TUBES INTERNATIONAL® is recommended to ensure optimal performance and proper flange OD matching.

Can the IBC Flat PTFE Gasket for PN Flange be used across different flange classes (PN10/PN16/PN25/PN40) while ensuring correct outer diameter and sealing performance?

Yes — the IBC Flat PTFE Gasket for PN Flange can be used across different flange classes (PN10/PN16/PN25/PN40) provided the correct outer diameter is selected and installation/operating conditions are respected. Manufactured to PN‑EN 1514‑1 from high‑quality PTFE, it offers excellent chemical resistance and a broad temperature range (–200 °C to +220 °C) with a working pressure capability up to 300 bar, making it suitable for demanding applications. Key points: - Outer diameter must match the flange class requirements; correct OD selection is essential for proper fit and sealing. - Mechanically, a gasket specified for a higher PN class (e.g., DN10 PN40) is compatible with lower classes (PN25, PN16, PN10) if the OD and bore align. - Final gasket choice should consider the process medium and operating temperature to ensure material compatibility and performance. - Consultation with TUBES INTERNATIONAL® is recommended to confirm the optimal gasket size and specification for your flange class and service conditions.

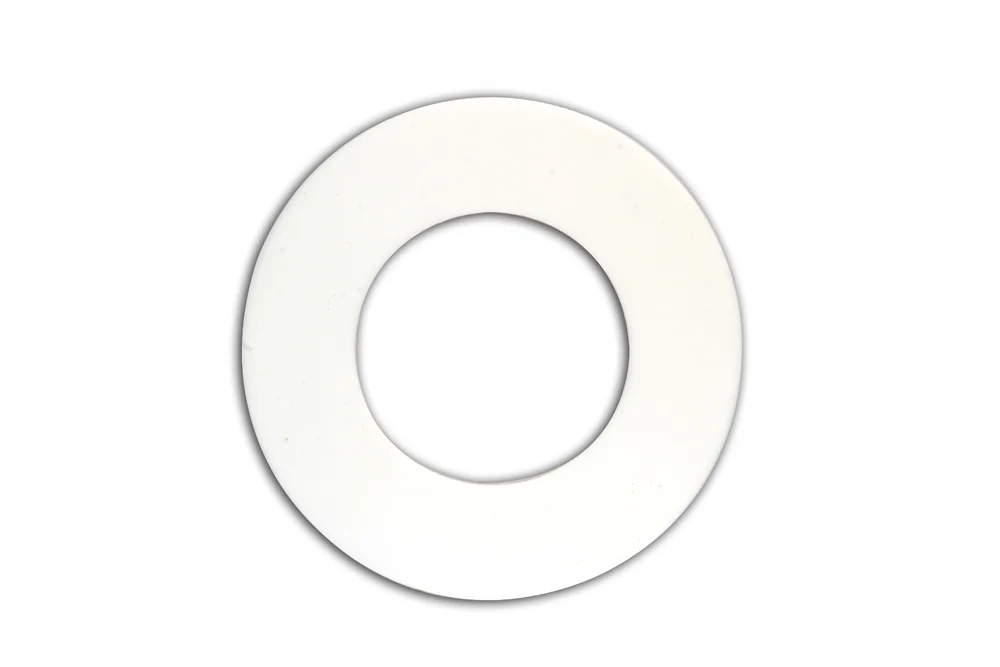

A flat IBC gasket for a flange PN, PTFE

All products, Flange couplings/

Additional information

Maximum operating temperature [°C]	220
Minimum operating temperature [°C]	-200

A flat IBC gasket for a flange PN made acc. to standards PN-EN 1514-1. The permissible pressure working, at which can be used a given gasket depends od temperatures and kinds medium (selection should agree with TUBES INTERNATIONAL®). at selecting the gasket should pay attention on dimension diameter outer, appropriate for class flange. For example: a gasket DN 10 PN40 is suitable for class PN10, PN16 and PN25. Material: PTFE. Working pressure: up to 300 bar. Operating temperature: od -200°C up to +220°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions	Catalogue
TK-UK-IBC-PN16-100-T-2	Seal IBC for flange PN16 DN100, group 2, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN16-100-T-3	Seal IBC for flange PN16 DN100, group 3, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN16-125-T-2	Seal IBC for flange PN16 DN125, group 2, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN16-125-T-3	Seal IBC for flange PN16 DN125, group 3, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN16-150-T-2	Seal IBC for flange PN16 DN150, group 2, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN16-150-T-3	Seal IBC for flange PN16 DN150, group 3, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN16-200-T-2	Seal IBC for flange PN16 DN200, group 2, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-015-T-2	Seal IBC for flange PN40 DN15, thickness 2, PTFE	-	-	In stock	Enquiry	-
TK-UK-IBC-PN40-015-T-3	Seal IBC for flange PN40 DN15, thickness 3, PTFE	-	-	In stock	Enquiry	-
TK-UK-IBC-PN40-020-T-2	Seal IBC for flange PN40 DN20, group 2, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-020-T-3	Seal IBC for flange PN40 DN20, group 3, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-025-T-2	Seal IBC for flange PN40 DN25, group 2, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-025-T-3	Seal IBC for flange PN40 DN25, group 3, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-032-T-2	Seal IBC for flange PN40 DN32, group 2, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-032-T-3	Seal IBC for flange PN40 DN32, group 3, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-040-T-2	Seal IBC for flange PN40 DN40, group 2, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-040-T-3	Seal IBC for flange PN40 DN40, group 3, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-050-T-2	Seal IBC for flange PN40 DN50, group 2, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-050-T-3	Seal IBC for flange PN40 DN50, group 3, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-065-T-2	Seal IBC for flange PN40 DN65, group 2, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-065-T-3	Seal IBC for flange PN40 DN65, group 3, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-080-T-2	Seal IBC for flange PN40 DN80, group 2, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-080-T-3	Seal IBC for flange PN40 DN80, group 3, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-100-T-2	Seal IBC for flange PN40 DN100, group 2, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-100-T-3	Seal IBC for flange PN40 DN100, group 3, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-125-T-2	Seal IBC for flange PN40 DN125, group 2, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-125-T-3	Seal IBC for flange PN40 DN125, group 3, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-150-T-2	Seal IBC for flange PN40 DN150, group 2, PTFE	-	-	In stock	Enquiry
TK-UK-IBC-PN40-150-T-3	Seal IBC for flange PN40 DN150, group 3, PTFE	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A flat IBC gasket for a flange PN made acc. to standards PN-EN 1514-1. The permissible pressure working, at which can be used a given gasket depends od temperatures and kinds medium (selection should agree with TUBES INTERNATIONAL®). at selecting the gasket should pay attention on dimension diameter outer, appropriate for class flange. For example: a gasket DN 10 PN40 is suitable for class PN10, PN16 and PN25. Material: PTFE. Working pressure: up to 300 bar. Operating temperature: od -200°C up to +220°C.
