Is the Self-Clamping Thermoplastic PUSH-ON Hose LABS-free and safe for paint applications?

Yes. The Self-Clamping Thermoplastic PUSH-ON Hose is completely LABS-free and explicitly designed to be safe for paint applications without risk of reaction. Its thermoplastic polyurethane construction, compatibility with self-clamping PUSH-ON fittings, and robust chemical compatibility make it suitable for use in painting environments, while maintaining a 4:1 safety factor, partial vacuum resistance, and a wide operating temperature range (-40°C to +80°C) for reliable performance.

Can the NON CONDUCTIVE version of the Self-Clamping Thermoplastic PUSH-ON Hose be used safely near sensitive electronics and high-voltage equipment?

Yes. The NON CONDUCTIVE version of the Self-Clamping Thermoplastic PUSH-ON Hose (TO-107…) is designed for safe use near sensitive electronics and high-voltage equipment. It provides additional protective properties specifically for electrical environments, with leakage current below 50 μA when exposed to 246 kV/m for 5 minutes. This makes it suitable for cooling systems and areas with sensitive electronic components. The hose retains the same robust construction, 4:1 safety factor, 20 bar working pressure, and -40°C to +80°C temperature range, and its orange outer coating clearly identifies the non-conductive variant for safety-conscious installations.

Thermoplastic self-clamping hose PUSH-ON

All products, General purpose hoses/

Additional information

Material	PU – polyurethane
Maximum operating temperature [°C]	80
Minimum operating temperature [°C]	-40
Vacuum resistance	no
Standard length [m]	152.4

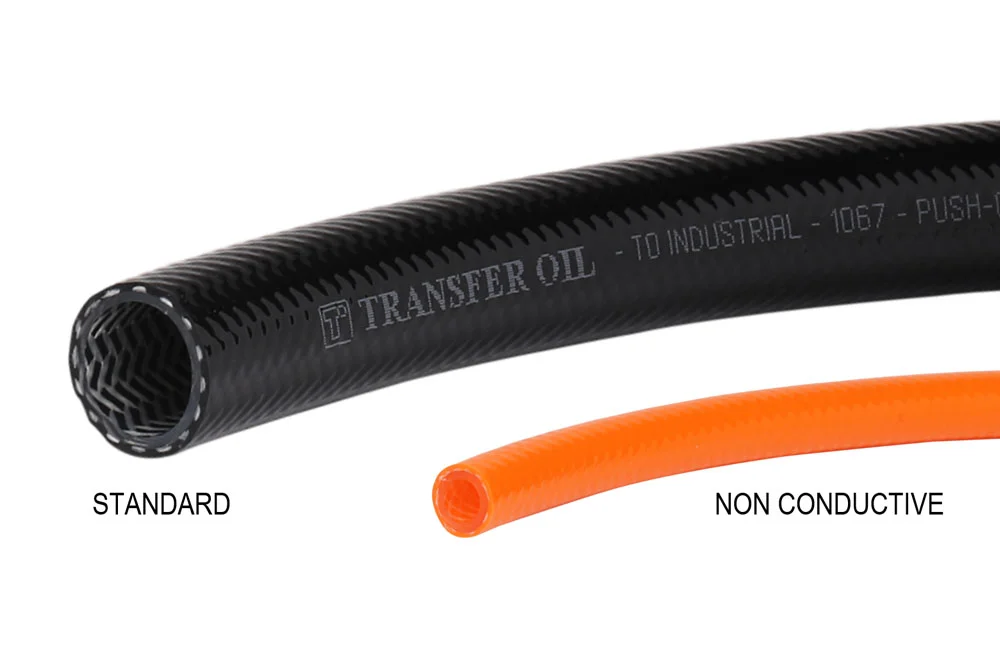

Very light and flexible hose with thermoplastic polyurethane intended for low-pressure installation hydraulic, pneumatic and water. used in automation industrial and industry automotive. free od LABS (linear alkylbenzene sulfonates), thanks to which not enters in reactions with paints. Safety factor 4:1. has a certain resistance to vacuum. The hose is designed to work with self-clamping PUSH-ON type ends. version NON CONDUCTIVE (TO-107…) not conductive electrically (leakage in conditions testing according to standards smaller od 50 μA for voltage 246 kV/m through 5 min), used at equipment electric, e.g. in systems cooling. Inner layer: polyurethane. Reinforcement: a synthetic braid. Outer layer: black polyurethane (standard), orange polyurethane (NON CONDUCTIVE). Working pressure: 20 bar. Operating temperature: od -40°C up to +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TO-1062-06	Hose thermoplastic type 106 PUSH-ON 1/4"	6	20	In stock	Enquiry
TO-1064-10	Hose thermoplastic type 106 PUSH-ON 3/8"	10	20	In stock	Enquiry
TO-1065-13	Hose thermoplastic type 106 PUSH-ON 1/2"	12	20	In stock	Enquiry
TO-1066-16	Hose thermoplastic type 106 PUSH-ON 5/8"	16	20	In stock	Enquiry
TO-1067-19	Hose thermoplastic type 106 PUSH-ON 3/4"	20	20	In stock	Enquiry
TO-1072-06	Hose thermoplastic type 107 PUSH-ON 1/4", NON CONDUCTIVE	6	20	In stock	Enquiry
TO-1074-10	Hose thermoplastic type 107 PUSH-ON 3/8", NON CONDUCTIVE	10	20	In stock	Enquiry
TO-1075-13	Hose thermoplastic type 107 PUSH-ON 1/2", NON CONDUCTIVE	12	20	In stock	Enquiry
TO-1076-16	Hose thermoplastic type 107 PUSH-ON 5/8", NON CONDUCTIVE	16	20	In stock	Enquiry
TO-1077-19	Hose thermoplastic type 107 PUSH-ON 3/4", NON CONDUCTIVE	20	20	In stock	Enquiry
