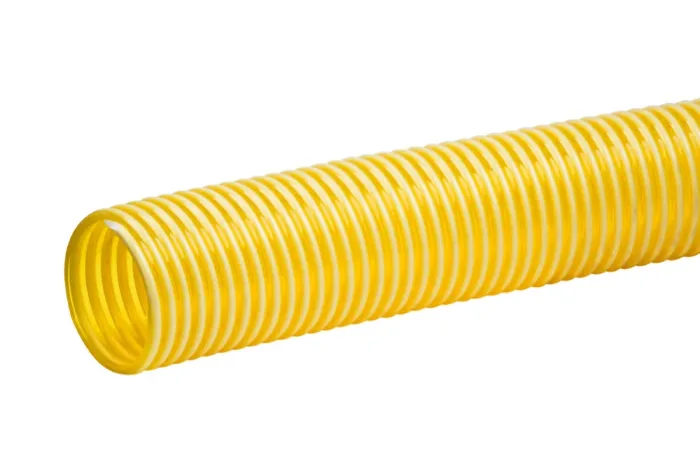

PVC Food-Grade Hose Reinforced with LUISIANA Rigid PVC Spiral

Additional information

Material

PVC – polyvinyl chloride

Maximum operating temperature [°C]

60

Minimum operating temperature [°C]

-5

Vacuum resistance

yes

Standard length [m]

10, 25, 50, 60

Reinforcement

PVC spiral

This lightweight and highly flexible suction and discharge hose is designed for safe transfer of water, juices, soft drinks, beer, wine, alcohols up to 20%, and a wide range of other food products, while its transparent yellowish PVC wall allows continuous visual flow control. Reinforced with a durable hard PVC spiral, it offers excellent resistance to impacts, vacuum, and hose collapse, ensuring reliability in demanding conditions. The smooth inner surface minimizes flow losses and facilitates easy cleaning, while the slightly corrugated exterior enhances flexibility and handling. Certified for food contact in accordance with European regulations 1935/2004/EC, 10/2011/EU, and 2023/2006/EC (GMP), it guarantees safety and compliance in food industry applications. Beyond food use, it is also suitable for industrial, construction, and agricultural environments, where it can handle light chemicals, water, sludges, sewage, air, dust, powders, granules, and other non-fatty bulk materials. For operations where electrostatic discharge may pose a risk, the special antistatic version LUISIANA AS, equipped with an embedded copper wire for grounding, provides additional protection and reliability. With working pressures ranging from 2 to 8 bar depending on diameter and an operating temperature range of -5°C to +60°C, this hose combines versatility, safety, and durability, making it an excellent choice for both food-grade and technical applications.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]EnquiryCatalogue
ME-LUISIANA-020LUISIANA hose 20 mm208
ME-LUISIANA-025LUISIANA hose 25 mm258
ME-LUISIANA-030LUISIANA hose 30 mm307
ME-LUISIANA-032LUISIANA hose 32 mm327
ME-LUISIANA-035LUISIANA hose 35 mm357
ME-LUISIANA-038LUISIANA hose 38 mm386.5
ME-LUISIANA-040LUISIANA hose 40 mm406.5
ME-LUISIANA-045LUISIANA hose 45 mm456.5
ME-LUISIANA-050LUISIANA hose 50 mm506
ME-LUISIANA-060LUISIANA hose 60 mm605
ME-LUISIANA-063LUISIANA hose 63 mm655
ME-LUISIANA-070LUISIANA hose 70 mm704
ME-LUISIANA-075LUISIANA hose 75 mm754
ME-LUISIANA-080LUISIANA hose 80 mm804
ME-LUISIANA-090LUISIANA hose 90 mm904
ME-LUISIANA-100HOSE LOUISIANA 100 mm1004
ME-LUISIANA-102LUISIANA hose 102 mm1004
ME-LUISIANA-110LUISIANA hose 110 mm1104
ME-LUISIANA-120LUISIANA hose 120 mm1203
ME-LUISIANA-125LUISIANA hose 125 mm1253
ME-LUISIANA-150LUISIANA hose 150 mm1503
ME-LUISIANA-200HOSE LOUISIANA 200 mm2002
ME-LUISIANA-AS-032LUISIANA hose 32 mm, antistatic327
ME-LUISIANA-AS-050LUISIANA hose 50 mm, antistatic506
ME-LUISIANA-AS-060LUISIANA hose 60 mm, antistatic605
ME-LUISIANA-AS-063LUISIANA hose 63 mm, antistatic655

This lightweight and highly flexible suction and discharge hose is designed for safe transfer of water, juices, soft drinks, beer, wine, alcohols up to 20%, and a wide range of other food products, while its transparent yellowish PVC wall allows continuous visual flow control. Reinforced with a durable hard PVC spiral, it offers excellent resistance to impacts, vacuum, and hose collapse, ensuring reliability in demanding conditions. The smooth inner surface minimizes flow losses and facilitates easy cleaning, while the slightly corrugated exterior enhances flexibility and handling. Certified for food contact in accordance with European regulations 1935/2004/EC, 10/2011/EU, and 2023/2006/EC (GMP), it guarantees safety and compliance in food industry applications. Beyond food use, it is also suitable for industrial, construction, and agricultural environments, where it can handle light chemicals, water, sludges, sewage, air, dust, powders, granules, and other non-fatty bulk materials. For operations where electrostatic discharge may pose a risk, the special antistatic version LUISIANA AS, equipped with an embedded copper wire for grounding, provides additional protection and reliability. With working pressures ranging from 2 to 8 bar depending on diameter and an operating temperature range of -5°C to +60°C, this hose combines versatility, safety, and durability, making it an excellent choice for both food-grade and technical applications.

Additional information

Material

PVC – polyvinyl chloride

Maximum operating temperature [°C]

60

Minimum operating temperature [°C]

-5

Vacuum resistance

yes

Standard length [m]

10, 25, 50, 60

Reinforcement

PVC spiral
