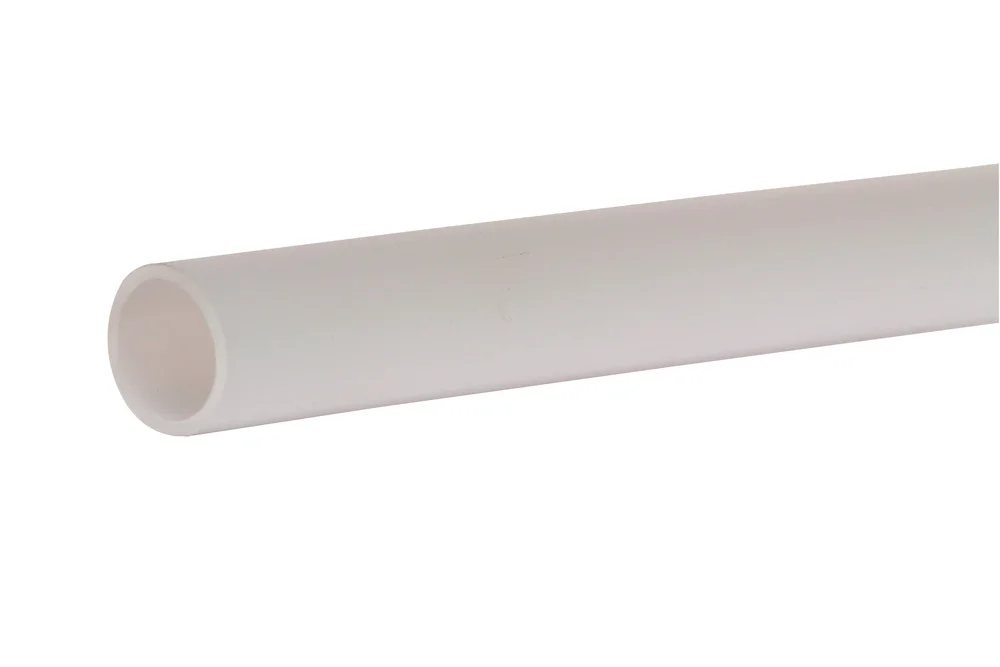

PVDF Pneumatic Hose with Superior Chemical Resistance

Additional information

Material

PVDF – polyvinylidene fluoride

Maximum operating temperature [°C]

150

Minimum operating temperature [°C]

-40

Vacuum resistance

check

Standard length [m]

100, 50

The hose made of high-performance polyvinylidene fluoride (PVDF) is designed for demanding applications where durability, safety, and reliability are essential. Its unique non-flammable polymer structure ensures outstanding resistance to extreme temperatures, ranging from -50°C to +140°C, while maintaining strength under working pressures from 16 bar up to 80 bar, depending on the diameter. The precisely calibrated outer diameter guarantees seamless compatibility with plugs and fittings from leading global manufacturers, offering secure and efficient connections. Thanks to its excellent dimensional stability, the hose delivers consistent compressive strength even in larger sizes, expanding its usability across diverse industries. The material’s resistance to UV radiation and aging ensures long-lasting performance, while its smooth surface with superior sliding properties minimizes wear and extends service life. In addition, the hose is impermeable to gases and highly resistant to concentrated bases, inorganic and organic acids, alcohols, and solvents, even at elevated temperatures, making it a versatile solution for chemical, industrial, and laboratory environments. Its electro-insulating properties further enhance safety in sensitive applications, while the combination of strength, precision, and chemical resistance positions this hose as a premium choice for professionals seeking reliability and efficiency in critical operations.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]EnquiryCatalogue
NP-PVDF-04X02PVDF hose 4x2 mm2126
NP-PVDF-08X06PVDF hose 8x6 mm648
NP-PVDF-12X10PVDF hose 12x10 mm1031
ZC-PVDF-04X02PVDF hose 4x2 mm280
ZC-PVDF-06X04PVDF hose 6x4 mm440
ZC-PVDF-08X06PVDF hose 8x6 mm626
ZC-PVDF-10X08PVDF hose 10x8 mm820
ZC-PVDF-12X10PVDF hose 12x10 mm1016

The hose made of high-performance polyvinylidene fluoride (PVDF) is designed for demanding applications where durability, safety, and reliability are essential. Its unique non-flammable polymer structure ensures outstanding resistance to extreme temperatures, ranging from -50°C to +140°C, while maintaining strength under working pressures from 16 bar up to 80 bar, depending on the diameter. The precisely calibrated outer diameter guarantees seamless compatibility with plugs and fittings from leading global manufacturers, offering secure and efficient connections. Thanks to its excellent dimensional stability, the hose delivers consistent compressive strength even in larger sizes, expanding its usability across diverse industries. The material’s resistance to UV radiation and aging ensures long-lasting performance, while its smooth surface with superior sliding properties minimizes wear and extends service life. In addition, the hose is impermeable to gases and highly resistant to concentrated bases, inorganic and organic acids, alcohols, and solvents, even at elevated temperatures, making it a versatile solution for chemical, industrial, and laboratory environments. Its electro-insulating properties further enhance safety in sensitive applications, while the combination of strength, precision, and chemical resistance positions this hose as a premium choice for professionals seeking reliability and efficiency in critical operations.

Additional information

Material

PVDF – polyvinylidene fluoride

Maximum operating temperature [°C]

150

Minimum operating temperature [°C]

-40

Vacuum resistance

check

Standard length [m]

100, 50
