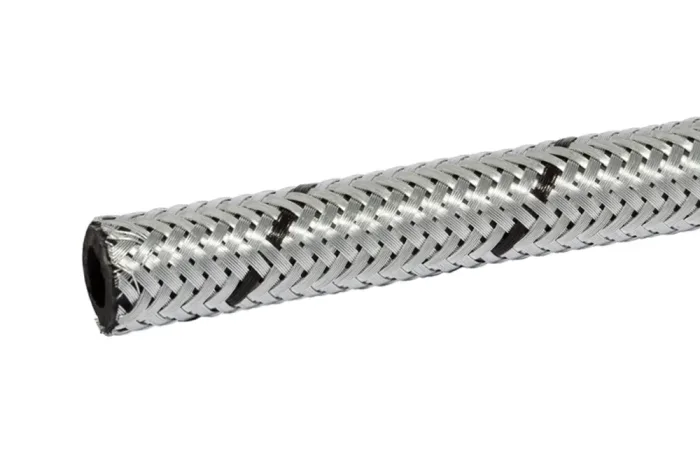

Steel braided hose PZ for fuel and oil systems

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

80

Minimum operating temperature [°C]

-35

Vacuum resistance

no

Standard length [m]

20, 50

Reinforcement

steel wire mesh

This highly durable and flexible hose is designed for versatile use in fuel and oil systems of small vehicles as well as industrial machinery, ensuring reliable performance even under demanding conditions. Manufactured from smooth black NBR rubber and reinforced with a robust galvanized steel braid, it offers excellent resistance to pressure, abrasion, and mechanical stress, while the distinctive black marking stripe ensures easy identification. Engineered in compliance with DIN 73379 standards, the hose is suitable for transporting gasoline, diesel, heating oil, lubricating oil, and can also be safely applied for water, cooling fluids, non-oxidizing detergents, and air. Its wide operating temperature range from -35°C up to +80°C, with medium-specific limits reaching +90°C for cooling liquids, guarantees dependable functionality across diverse applications. With a working pressure capacity between 10 and 20 bar depending on diameter, this hose combines flexibility with strength, making it an ideal solution for professionals seeking efficiency, safety, and long-lasting performance in both automotive and industrial environments.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]EnquiryCatalogue
EC-101005Hose PZ 4.5x9.5 mm, steel braid520
EC-101006Hose PZ 5.5x10.5 mm, steel braid620
EC-101008Hose PZ 7.5x12.5 mm, steel braid815
EC-101010Hose PZ 9.5x14 mm, steel braid815
EC-101012Hose PZ 11.5x18 mm, steel braid1215
EC-101015Hose PZ 14.5x22 mm, steel braid1415
EC-101018Hose PZ 17x25 mm, steel braid1615
EC-101019Hose PZ 20x28 mm, steel braid2010
EC-101020Hose PZ 22x30 mm, steel braid2010
EC-101025Hose PZ 25x33 mm, steel braid2510

This highly durable and flexible hose is designed for versatile use in fuel and oil systems of small vehicles as well as industrial machinery, ensuring reliable performance even under demanding conditions. Manufactured from smooth black NBR rubber and reinforced with a robust galvanized steel braid, it offers excellent resistance to pressure, abrasion, and mechanical stress, while the distinctive black marking stripe ensures easy identification. Engineered in compliance with DIN 73379 standards, the hose is suitable for transporting gasoline, diesel, heating oil, lubricating oil, and can also be safely applied for water, cooling fluids, non-oxidizing detergents, and air. Its wide operating temperature range from -35°C up to +80°C, with medium-specific limits reaching +90°C for cooling liquids, guarantees dependable functionality across diverse applications. With a working pressure capacity between 10 and 20 bar depending on diameter, this hose combines flexibility with strength, making it an ideal solution for professionals seeking efficiency, safety, and long-lasting performance in both automotive and industrial environments.

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

80

Minimum operating temperature [°C]

-35

Vacuum resistance

no

Standard length [m]

20, 50

Reinforcement

steel wire mesh
