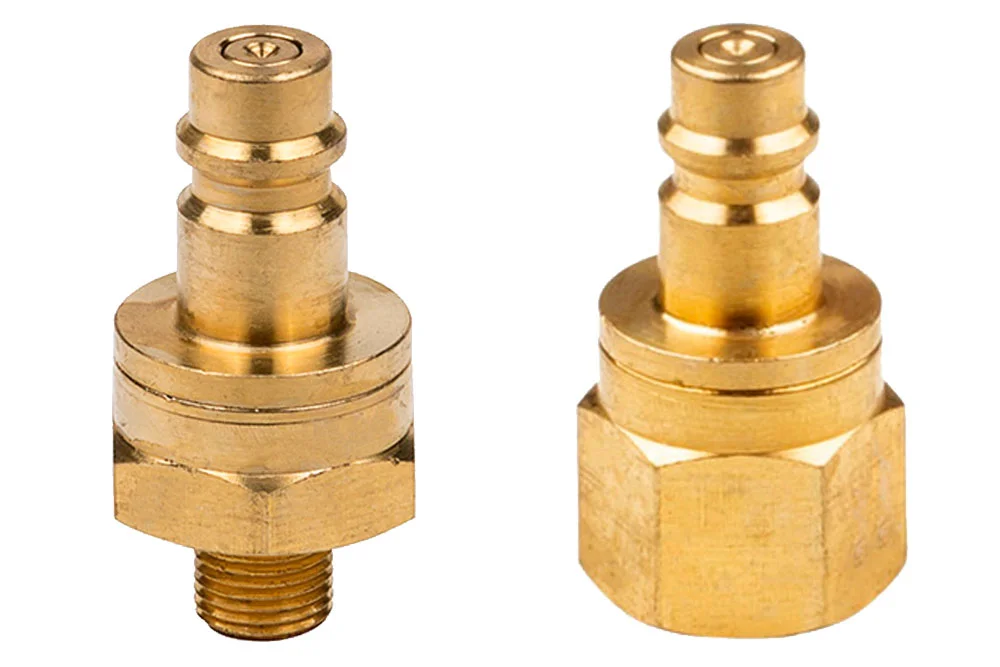

Plug quick coupling double shut-off for air DN7.2 Eurostandard, with thread, 16 bar

Additional information

Material

B – brass (bronze)

Plug quick coupling double shut-off, o popular profile Eurostandard DN7.2 with valve, with thread external or internal BSP or metric, for use in installations pneumatic (air, nitrogen, other non-flammable gases). version double shut-off, has valve in the socket and we plug and not should connect version single shut-offj with double shut-off, because not will occur opening valve. operated easily using one hand for pressure 8 bar. Working pressure: 16 bar. Material: brass (spring of steel stainless). sealing: NBR. Flow rate: 734 l/min, Pe=6 bar, Δp=1 bar (air). Operating temperature: od -20°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
TP-ES72D-WW-02XQuick coupling plug DN7.2 double shut-off, 1/8" BSP female, brass-16In stock0 €
Enquiry
TP-ES72D-WW-04XQuick coupling plug DN7.2 double shut-off, 1/4" BSP female, brass-16In stock0 €
Enquiry
TP-ES72D-WW-06XQuick coupling plug DN7.2 double shut-off, 3/8" BSP female, brass-16In stock0 €
Enquiry
TP-ES72D-WW-08XQuick coupling plug DN7.2 double shut-off, 1/2" BSP female, brass-16In stock0 €
Enquiry
TP-ES72D-WW-M14XQuick coupling plug DN7.2 double shut-off, M14x1.5 female, brass-16In stock0 €
Enquiry
TP-ES72D-WW-M16XQuick coupling plug DN7.2 double shut-off, M16x1.5 female, brass-16In stock0 €
Enquiry
TP-ES72D-WW-M18XQuick coupling plug DN7.2 double shut-off, M18x1.5 female, brass-16In stock0 €
Enquiry
TP-ES72D-WZ-02XQuick coupling plug DN7.2 double shut-off, 1/8" BSP male, brass-16In stock0 €
Enquiry
TP-ES72D-WZ-04XQuick coupling plug DN7.2 double shut-off, 1/4" BSP male, brass-16In stock0 €
Enquiry
TP-ES72D-WZ-06XQuick coupling plug DN7.2 double shut-off, 3/8" BSP male, brass-16In stock0 €
Enquiry
TP-ES72D-WZ-08XQuick coupling plug DN7.2 double shut-off, 1/2" BSP male, brass-16In stock0 €
Enquiry
TP-ES72D-WZ-M14XQuick coupling plug DN7.2 double shut-off, M14x1.5 male, brass-16In stock0 €
Enquiry
TP-ES72D-WZ-M16XQuick coupling plug DN7.2 double shut-off, M16x1.5 male, brass-16In stock0 €
Enquiry
TP-ES72D-WZ-M18XQuick coupling plug DN7.2 double shut-off, M18x1.5 male, brass-16In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Plug quick coupling double shut-off, o popular profile Eurostandard DN7.2 with valve, with thread external or internal BSP or metric, for use in installations pneumatic (air, nitrogen, other non-flammable gases). version double shut-off, has valve in the socket and we plug and not should connect version single shut-offj with double shut-off, because not will occur opening valve. operated easily using one hand for pressure 8 bar. Working pressure: 16 bar. Material: brass (spring of steel stainless). sealing: NBR. Flow rate: 734 l/min, Pe=6 bar, Δp=1 bar (air). Operating temperature: od -20°C up to +100°C.
