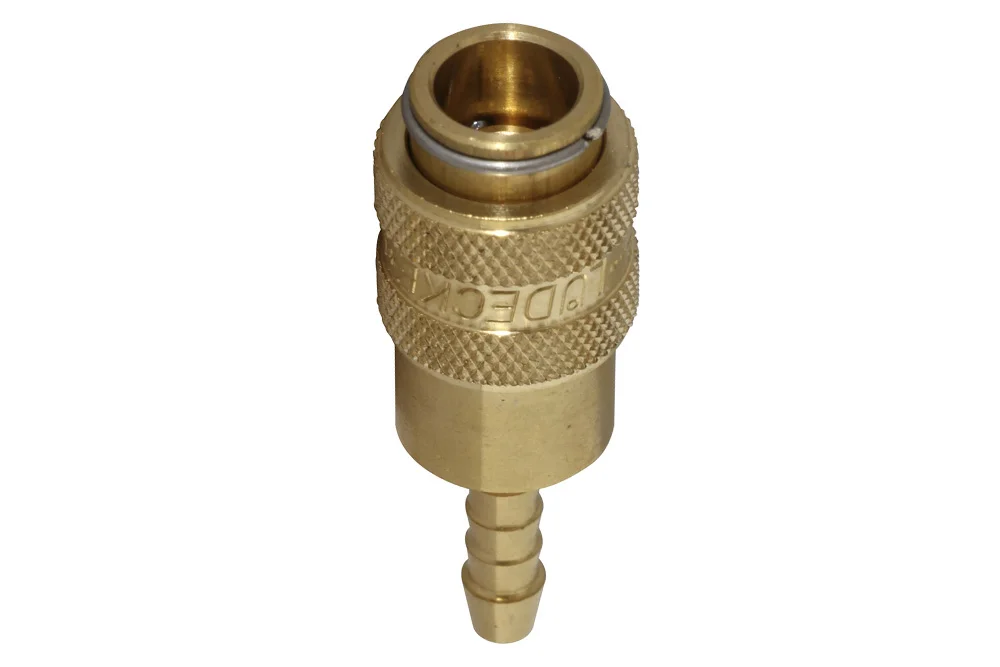

Socket quick coupling for air with valve MINI DN5, with fitting for hose, brass, 35 bar

Additional information

Material

B – brass (bronze)

Socket quick coupling with valve Eurostandard MINI DN 5, with fitting for hose, widely used in industry (for air, nitrogen and other non-flammable gases), where required are small dimensions and large flow capacity flow at small a drop pressure. interchangeable with RECTUS 21 and quick coupling o profile EURO DN 5 other manufacturers. can be operated one hand. On special order available socket quick coupling with color ferrules with anodized aluminum in order to identification lines. Working pressure: 35 bar. Flow rate: 510 l/min, Pe=6 bar, Δp=0.5 bar (air). Operating temperature: od -20°C up to +100°C. sealing: NBR. Material: brass.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
LU-ESM-4-TQuick coupling socket MINI DN5, for 4 mm hose, brass435In stock0 €
Enquiry
LU-ESM-5-TQuick coupling socket MINI DN5, for 5 mm hose, brass535In stock0 €
Enquiry
LU-ESM-6-TQuick coupling socket MINI DN5, for 6 mm hose, brass635In stock0 €
Enquiry
LU-ESM-8-TQuick coupling socket MINI DN5, for 8 mm hose, brass835In stock0 €
Enquiry
LU-ESM-9-TQuick coupling socket MINI DN5, for 9 mm hose, brass1035In stock0 €
Enquiry
MU-2768Quick coupling socket DN 5 with fitting for 9 mm hose1035In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Socket quick coupling with valve Eurostandard MINI DN 5, with fitting for hose, widely used in industry (for air, nitrogen and other non-flammable gases), where required are small dimensions and large flow capacity flow at small a drop pressure. interchangeable with RECTUS 21 and quick coupling o profile EURO DN 5 other manufacturers. can be operated one hand. On special order available socket quick coupling with color ferrules with anodized aluminum in order to identification lines. Working pressure: 35 bar. Flow rate: 510 l/min, Pe=6 bar, Δp=0.5 bar (air). Operating temperature: od -20°C up to +100°C. sealing: NBR. Material: brass.
