Is the Quick-connect air socket DN7.2 Eurostandard with valve, hose fitting, 35 bar compatible with other Eurostandard DN7.2 ÷ 7.8 couplings?

Yes. The Quick-connect air socket DN7.2 Eurostandard with valve, hose fitting, 35 bar is fully compatible and interchangeable with other Eurostandard couplings in the DN7.2 ÷ 7.8 range. Made of durable brass with NBR seals, rated to 35 bar and offering 1100 l/min flow (Pe=6 bar, Δp=0.5 bar), it fits standard Eurostandard profiles and integrates smoothly into existing pneumatic systems. Available in three hose-fitting variants (corrugated fitting; thermoplastic fitting with nut; thermoplastic fitting with nut and protective spring), it provides flexible installation options while maintaining reliable sealing and performance across −20°C to +100°C.

Can the Quick-connect air socket DN7.2 Eurostandard with valve, hose fitting, 35 bar be used safely with oxygen or other flammable gases?

No. The Quick-connect air socket DN7.2 Eurostandard with valve, hose fitting, 35 bar is specified for air, nitrogen, and other non-flammable gases. It is made of brass with NBR seals and rated for up to 35 bar, but the product description explicitly limits use to non-flammable gases. Oxygen and other flammable or oxidizing gases pose special compatibility and safety hazards (material reactions, increased fire risk, contamination of seals/lubricants). Use with oxygen or flammable gases requires components specifically certified and cleaned for oxygen service and compatible materials and seals; NBR and standard brass fittings are generally not suitable. Therefore do not use this coupling with oxygen or flammable gases unless the manufacturer provides explicit oxygen/flammable-gas certification and compatible materials.

Socket quick coupling for air DN7.2 Eurostandard with valve, with fitting for hose, 35 bar

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

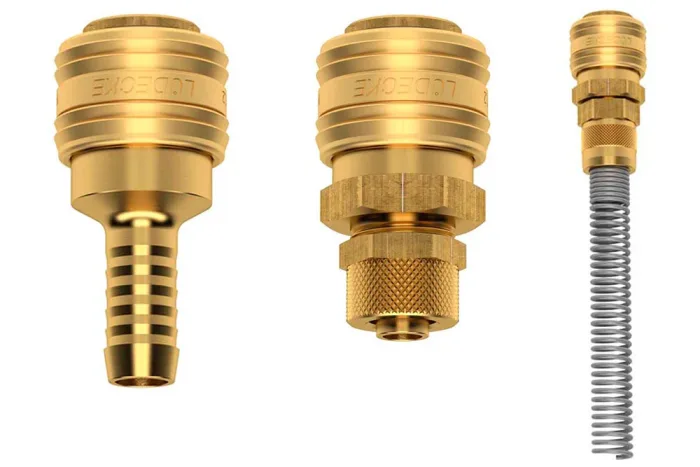

Socket quick coupling o popular profile Eurostandard DN7.2 with valve, with fitting for hose, for use in installations pneumatic (air, nitrogen, other non-flammable gases). socket occurs in three variants: with fitting serrated, with fitting for hose thermoplastic with a nut and with fitting for hose thermoplastic with a nut and spring protective, protecting hose against abrasion, kinking, czy damage mechanical. quick coupling are interchangeable of all quick coupling, other manufacturers acc. to Eurostandard DN7.2 ÷ 7.8. Working pressure: up to 35 bar. Material: brass. sealing: NBR. Flow rate: 1100 l/min, Pe=6 bar, Δp=0.5 bar (air). Operating temperature: od -20°C up to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TP-ES72-GK-04X06	Quick coupling socket DN7.2, for a plastic hose 4x6 mm, brass	4	35	In stock	Enquiry
TP-ES72-GK-06	Quick coupling socket DN7.2, for 6 mm hose, brass	6	35	In stock	Enquiry
TP-ES72-GK-06X08	Quick coupling socket DN7.2, for a plastic hose 6x8 mm, brass	6	35	In stock	Enquiry
TP-ES72-GK-08	Quick coupling socket DN7.2, for 8 mm hose, brass	8	35	In stock	Enquiry
TP-ES72-GK-08X10	Quick coupling socket DN7.2, for a plastic hose 8x10 mm, brass	8	35	In stock	Enquiry
TP-ES72-GK-09	Quick coupling socket DN7.2, for 9 mm hose, brass	8	35	In stock	Enquiry
TP-ES72-GK-09X12	Quick coupling socket DN7.2, for a plastic hose 9x12 mm, brass	8	35	In stock	Enquiry
TP-ES72-GK-10	Quick coupling socket DN7.2, for 10 mm hose, brass	10	35	In stock	Enquiry
TP-ES72-GK-13	Quick coupling socket DN7.2, for 13 mm hose, brass	12	35	In stock	Enquiry
TP-ES72-GKS-04X06	Quick coupling socket DN7.2, for a plastic hose 4x6 mm, spring, brass	4	35	In stock	Enquiry
TP-ES72-GKS-06X08	Quick coupling socket DN7.2, for a plastic hose 6x8 mm, spring, brass	6	35	In stock	Enquiry
TP-ES72-GKS-08X10	Quick coupling socket DN7.2, for a plastic hose 8x10 mm, spring, brass	8	35	In stock	Enquiry
TP-ES72-GKS-09X12	Quick coupling socket DN7.2, for a plastic hose 9x12 mm, spring, brass	8	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Socket quick coupling o popular profile Eurostandard DN7.2 with valve, with fitting for hose, for use in installations pneumatic (air, nitrogen, other non-flammable gases). socket occurs in three variants: with fitting serrated, with fitting for hose thermoplastic with a nut and with fitting for hose thermoplastic with a nut and spring protective, protecting hose against abrasion, kinking, czy damage mechanical. quick coupling are interchangeable of all quick coupling, other manufacturers acc. to Eurostandard DN7.2 ÷ 7.8. Working pressure: up to 35 bar. Material: brass. sealing: NBR. Flow rate: 1100 l/min, Pe=6 bar, Δp=0.5 bar (air). Operating temperature: od -20°C up to +100°C.
