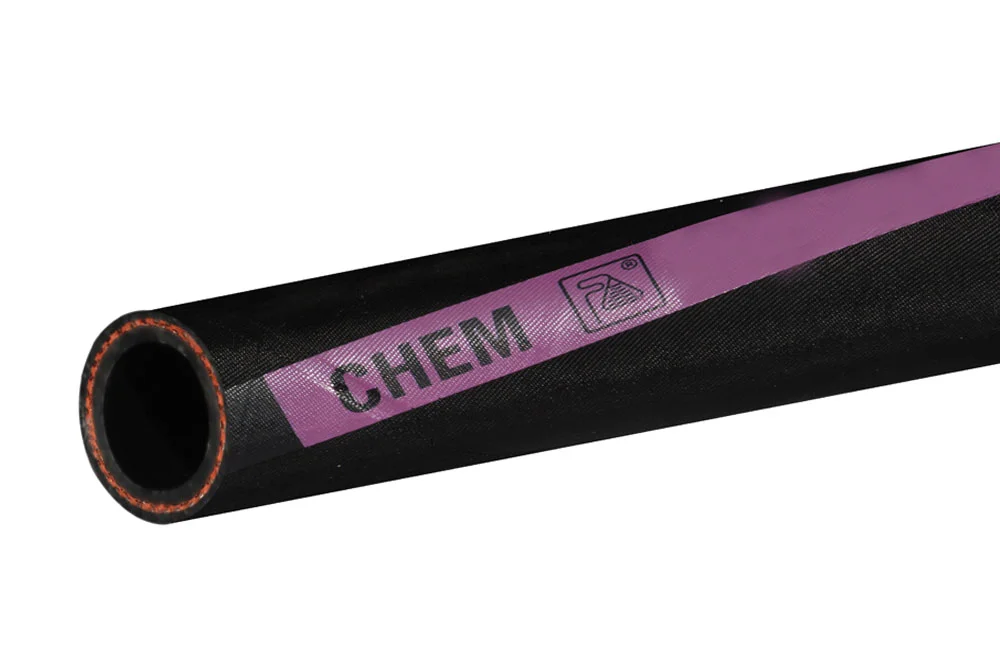

Hose delivery for very aggressive chemicals REAL®

Additional information

Material

FPM (FKM) – fluor rubber (viton)

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-25

Vacuum resistance

no

Standard length [m]

60/ 120

Reinforcement

synthetic braid

Hose delivery for conveying almost all aggressive substances chemical. designed specially for industry petrochemical for fuels o high a concentration hydrocarbons aromatic, hot oil and solvents. Due to high general resistance chemical rubber FPM It can be used for aggressive chemicals, in many cases also in elevated temperatures. Layer inner with smooth black rubber fluorine FKM. Reinforcement cord synthetic. Layer outer with rubber chloroprene CR resistant to conditions atmospheric, ozone, abrasion and oils. Confirmation of resistance and application conditions requires contact with Tubes International, in particular for temperatures above 50 º C. Inner layer: black rubber FKM (FPM, Viton). Reinforcement: cord synthetic. Outer layer: black rubber CR. Working pressure: 10 bar. Operating temperature: od -25°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IV-REAL-019Hose REAL 19x31 mm2010In stock0 €
Enquiry
IV-REAL-025Hose REAL 25x38 mm2510In stock0 €
Enquiry
IV-REAL-032Hose REAL 32x46 mm3210In stock0 €
Enquiry
IV-REAL-038Hose REAL 38x54 mm3810In stock0 €
Enquiry
IV-REAL-051Hose REAL 51x68.5 mm5010In stock0 €
Enquiry
IV-REAL-063Hose REAL 63.5x81 mm6510In stock0 €
Enquiry
IV-REAL-076Hose REAL 76x95 mm7510In stock0 €
Enquiry
IV-REAL-102Hose REAL 102x121 mm10010In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Hose delivery for conveying almost all aggressive substances chemical. designed specially for industry petrochemical for fuels o high a concentration hydrocarbons aromatic, hot oil and solvents. Due to high general resistance chemical rubber FPM It can be used for aggressive chemicals, in many cases also in elevated temperatures. Layer inner with smooth black rubber fluorine FKM. Reinforcement cord synthetic. Layer outer with rubber chloroprene CR resistant to conditions atmospheric, ozone, abrasion and oils. Confirmation of resistance and application conditions requires contact with Tubes International, in particular for temperatures above 50 º C. Inner layer: black rubber FKM (FPM, Viton). Reinforcement: cord synthetic. Outer layer: black rubber CR. Working pressure: 10 bar. Operating temperature: od -25°C up to +100°C.

Additional information

Material

FPM (FKM) – fluor rubber (viton)

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-25

Vacuum resistance

no

Standard length [m]

60/ 120

Reinforcement

synthetic braid
