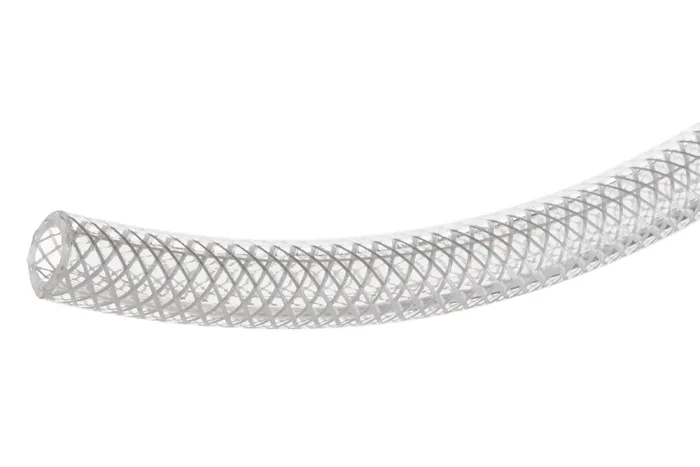

Hose reinforced polyurethane RPU

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Vacuum resistance

no

Standard length [m]

30

Reinforcement

polyester braid

A universal flexible high quality hose polyurethane with a braid manufactured in Great Britain. intended for water, air, oils, fuels, greases, chemicals, granulates. hose strong od similar hoses, PVC, retaining its shape, resistant to kinking, hydrolysis and abrasion, flexible in low temperatures. Contains no cadmium, silicone, plasticisers or halogen compounds. Inner layer: transparent polyurethane-polyether. Reinforcement: a polyester braid. Outer layer: transparent polyurethane-polyether. Working pressure at a temperature of 20°C: from 10 bar to 20 bar – depending on the diameter hose. Operating temperature: od -30°C up to +70°C (momentarily +100°C). As the working temperature rises, the hose’s working pressure value decreases.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
CX-RPU-06Polyurethane hose type RPU 6.3x11.5 mm620In stock0 €
Enquiry
CX-RPU-10Polyurethane hose type RPU 10x16 mm1016In stock0 €
Enquiry
CX-RPU-13Polyurethane hose type RPU 12.5x18.5 mm1215In stock0 €
Enquiry
CX-RPU-16Polyurethane hose type RPU 16x23 mm1613In stock0 €
Enquiry
CX-RPU-19Polyurethane hose type RPU 19x26 mm2011In stock0 €
Enquiry
CX-RPU-25Polyurethane hose type RPU 25x33 mm2510In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

A universal flexible high quality hose polyurethane with a braid manufactured in Great Britain. intended for water, air, oils, fuels, greases, chemicals, granulates. hose strong od similar hoses, PVC, retaining its shape, resistant to kinking, hydrolysis and abrasion, flexible in low temperatures. Contains no cadmium, silicone, plasticisers or halogen compounds. Inner layer: transparent polyurethane-polyether. Reinforcement: a polyester braid. Outer layer: transparent polyurethane-polyether. Working pressure at a temperature of 20°C: from 10 bar to 20 bar – depending on the diameter hose. Operating temperature: od -30°C up to +70°C (momentarily +100°C). As the working temperature rises, the hose’s working pressure value decreases.

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Vacuum resistance

no

Standard length [m]

30

Reinforcement

polyester braid

Do you need a larger quantity of products or a bespoke quote?
