Is the Twisted Fuel End with BSPT Male Thread, Type S2 suitable for LPG service at -30°C to +70°C and up to 25 bar (DN25)?

Yes. The Twisted Fuel End with BSPT Male Thread, Type S2 is suitable for LPG service at -30°C to +70°C and up to 25 bar (DN25). The product description explicitly states an operating temperature range of -30°C to +70°C for LPG applications and a working pressure up to 25 bar for DN25, and it is designed to EN 14424 for fuel and gas sector use. Available materials (brass or stainless-steel end with chrome-plated brass sleeve) provide options for corrosion and wear resistance appropriate for demanding LPG distribution environments.

Can the Twisted Fuel End with BSPT Male Thread, Type S2 be fitted with a stainless steel end and chrome-plated brass sleeve for increased corrosion resistance?

Yes. The Twisted Fuel End with BSPT Male Thread, Type S2 is available in a standard all-brass version and in an alternative construction that combines a stainless steel end fitting with a chrome-plated brass sleeve to provide increased resistance to corrosion and wear. This option preserves the fitting’s compliance with EN 14424 and its performance characteristics (working pressure up to 16 bar, up to 25 bar for DN25, and operating temperatures −20°C to +65°C, or −30°C to +70°C for LPG), making it suitable for demanding fuel and gas applications where enhanced corrosion resistance is required.

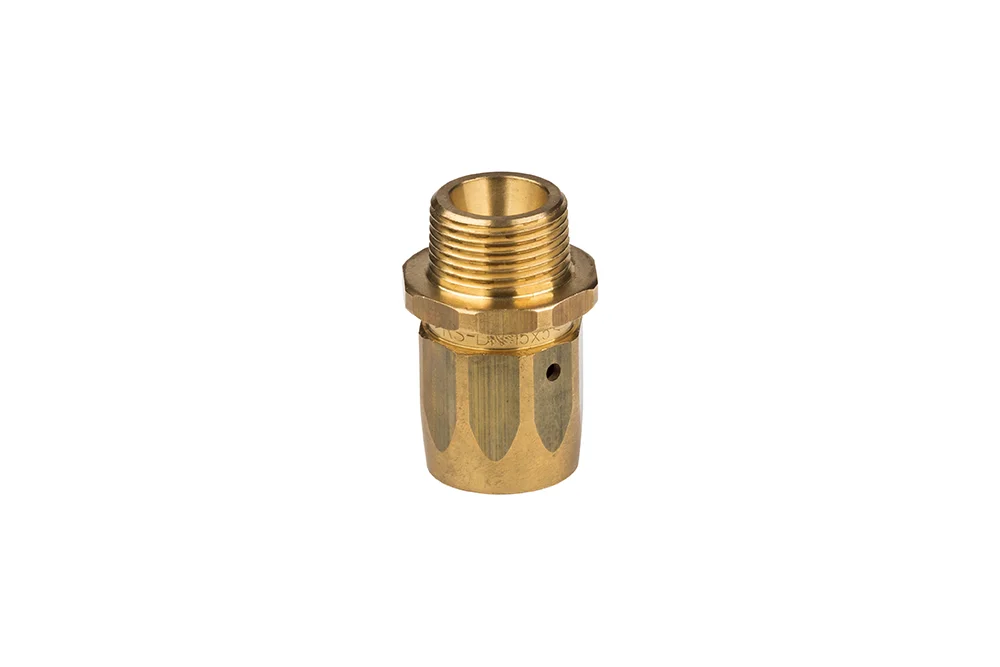

Twisted Fuel End with BSPT Male Thread, Type S2

All products, Filling fittings/

Additional information

Material	B – brass (bronze)

The screwed end fitting type S2 with external BSPT thread, designed in compliance with EN 14424, is a reliable solution for connecting rubber hoses and selected thermoplastic hoses reinforced with soft textile layers. Engineered for demanding applications in the fuel and gas sector, including LPG distribution, it ensures secure sealing directly on the thread, delivering both safety and durability in operation. The standard version is manufactured entirely from high-quality brass, while an alternative option combines a stainless steel end fitting with a chrome-plated brass sleeve for enhanced resistance to corrosion and wear. With a working pressure of 16 bar (up to 25 bar for DN25) and an operating temperature range from -20°C to +65°C, or from -30°C to +70°C specifically for LPG applications, this fitting guarantees dependable performance even under challenging conditions. Its robust construction, compliance with international standards, and versatile material options make it an excellent choice for professionals seeking long-lasting, efficient, and secure hose connections in fuel distribution systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
ZP-S2-050-1304-B	End type S GZ BSPT 1/2" hose 13x4 mm, brass	12	25	In stock	Enquiry
ZP-S2-050-1305-B	End type S GZ BSPT 1/2" hose 13x5 mm, brass	12	25	In stock	Enquiry
ZP-S2-075-1505-B	End. type S GZ BSPT 3/4" hose 15x5 mm, brass	16	25	In stock	Enquiry
ZP-S2-075-1904-B	End type S GZ BSPT 3/4" hose 19x4 mm, brass	20	25	In stock	Enquiry
ZP-S2-075-1905-B	End type S GZ BSPT 3/4" hose 19x5 mm, brass	20	25	In stock	Enquiry
ZP-S2-075-1906-B	End. type S GZ BSPT 3/4" hose 19x6 mm, brass	20	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The screwed end fitting type S2 with external BSPT thread, designed in compliance with EN 14424, is a reliable solution for connecting rubber hoses and selected thermoplastic hoses reinforced with soft textile layers. Engineered for demanding applications in the fuel and gas sector, including LPG distribution, it ensures secure sealing directly on the thread, delivering both safety and durability in operation. The standard version is manufactured entirely from high-quality brass, while an alternative option combines a stainless steel end fitting with a chrome-plated brass sleeve for enhanced resistance to corrosion and wear. With a working pressure of 16 bar (up to 25 bar for DN25) and an operating temperature range from -20°C to +65°C, or from -30°C to +70°C specifically for LPG applications, this fitting guarantees dependable performance even under challenging conditions. Its robust construction, compliance with international standards, and versatile material options make it an excellent choice for professionals seeking long-lasting, efficient, and secure hose connections in fuel distribution systems.
