Is the SAE 3000 Flange End ZSK111, Light Series, Carbon Steel, Zinc-Nickel compatible with all standard hydraulic crimping sleeves?

The SAE 3000 Flange End ZSK111, Light Series, Carbon Steel, Zinc-Nickel is not universally compatible with all standard hydraulic crimping sleeves. It is designed to be used with a matching crimping sleeve tailored to the specific hose type to ensure a precise fit and reliable, long-lasting connection. Compatibility depends on the sleeve’s dimensions, profile and the hose construction; using a non-matching sleeve can compromise crimp integrity and performance. Always verify sleeve specifications and manufacturer recommendations for the specific hose and flange end before assembly.

Does the SAE 3000 Flange End ZSK111, Light Series, Carbon Steel, Zinc‑Nickel require specific crimping dies or adapters for use with certain crimping machines?

SAE 3000 Flange End ZSK111, Light Series, Carbon Steel, Zinc-Nickel: Yes — specific crimping dies or adapters may be required. The product is designed to be used with a matching crimping sleeve tailored to the hose type, so compatibility with your crimping machine depends on the machine’s die profile and size range. To ensure a proper, secure crimp and preserve the component’s mechanical and corrosion-resistant properties, use dies/adapters that match the sleeve geometry and the hose dimensions specified by the manufacturer. If your crimper does not natively support the required profile or range, obtain the manufacturer-recommended dies or an adapter kit from the crimper supplier. Always verify die selection against the hose and sleeve specification and perform sample crimps and pull tests per the hose maker’s guidelines.

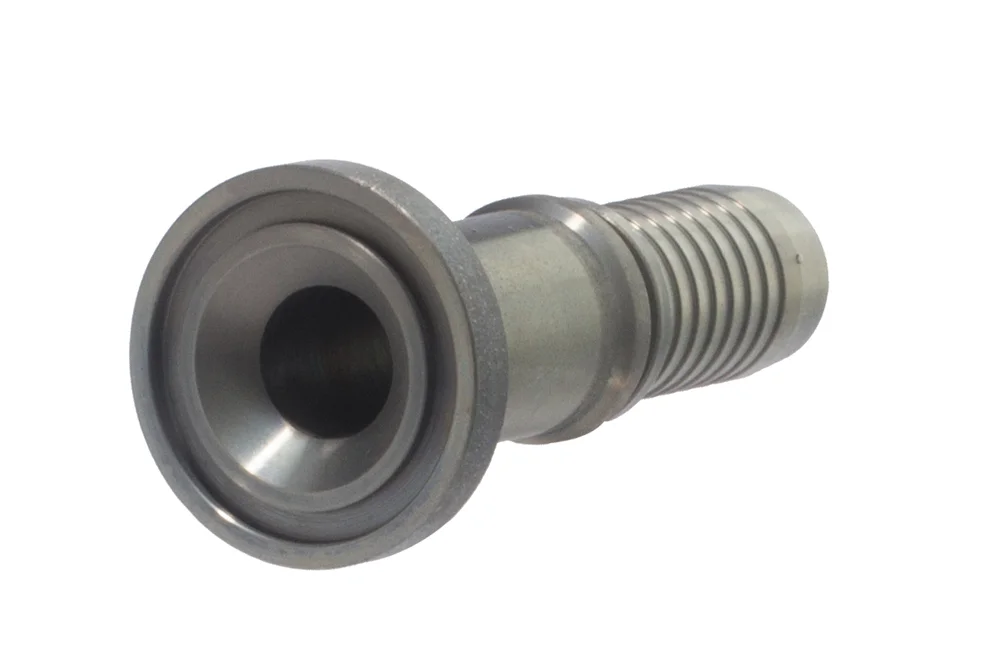

A fitting flange SAE 3000, type ZSK111, series light, steel carbon, zinc-nickel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

A fitting flange SAE 3000 (SFL), series light. Intended for crimping in hoses hydraulic and industrial using ferrule crimping, appropriate for type hose. surface coated zinc-nickel o wall thickness layer 6-10 µm, which is characterized very high resistance on corrosion (for 720 hours without corrosion in chamber salt). Material: steel carbon, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZSK111-08-08-CN	Fitting flange SAE 1/2", hose 1/2", light, Zn-Ni	12	-	In stock	Enquiry
TI-ZSK111-12-08-CN	Fitting flange SAE 3/4", hose 1/2", light, Zn-Ni	12	-	In stock	Enquiry
TI-ZSK111-12-10-CN	Fitting flange SAE 3/4", hose 5/8", light, Zn-Ni	16	-	In stock	Enquiry
TI-ZSK111-12-12-CN	Fitting flange SAE 3/4", hose 3/4", light, Zn-Ni	20	-	In stock	Enquiry
TI-ZSK111-16-12-CN	Fitting flange SAE 1", hose 3/4", light, Zn-Ni	20	-	In stock	Enquiry
TI-ZSK111-16-16-CN	Fitting flange SAE 1", hose 1", light, Zn-Ni	25	-	In stock	Enquiry
TI-ZSK111-20-16-CN	Fitting flange SAE 1.1/4", hose 1", light, Zn-Ni	25	-	In stock	Enquiry
TI-ZSK111-20-20-CN	Fitting flange SAE 1.1/4", hose 1.1/4", light, Zn-Ni	32	-	In stock	Enquiry
TI-ZSK111-24-20-CN	Fitting flange SAE 1.1/2", hose 1.1/4", light, Zn-Ni	32	-	In stock	Enquiry
TI-ZSK111-24-24-CN	Fitting flange SAE 1.1/2", hose 1.1/2", light, Zn-Ni	38	-	In stock	Enquiry
TI-ZSK111-32-24-CN	Fitting flange SAE 2", hose 1.1/2", light, Zn-Ni	38	-	In stock	Enquiry
TI-ZSK111-32-32-CN	Fitting flange SAE 2", hose 2", light, Zn-Ni	50	-	In stock	Enquiry
TI-ZSK111-40-32-CN	Fitting flange SAE 2.1/2", hose 2", light, Zn-Ni	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A fitting flange SAE 3000 (SFL), series light. Intended for crimping in hoses hydraulic and industrial using ferrule crimping, appropriate for type hose. surface coated zinc-nickel o wall thickness layer 6-10 µm, which is characterized very high resistance on corrosion (for 720 hours without corrosion in chamber salt). Material: steel carbon, zinc-nickel.
