Does the BURGACLIP Service Case include fittings for both straight and angled connections across DN 8, 10, 12, and 16 hoses?

Yes. The BURGACLIP Service Case includes fittings for both straight and angled connections across the DN 8, 10, 12, and 16 sizes. The kit contains 39 versatile fittings in straight and angled versions (including UNF-threaded, compressor, SAE, and ORFS types), plus 80 clamp bands, 40 stabilizing clips, and 80 HNBR O-rings for reliable sealing and installation.

Can the BURGACLIP Service Case components be used with other hose brands and materials besides BU-3090?

BURGACLIP Service Case components are designed specifically for BU-3090 hoses in sizes DN 8, 10, 12, and 16, and the set’s fittings, clamp bands, stabilizing clips and HNBR O-rings are optimized for those hoses and typical hydraulic connections (UNF, compressor, SAE, ORFS). While some components—such as the clamp bands, generic straight/angled fittings and O-rings—may physically fit or function with other hose brands or materials, compatibility is not guaranteed. Differences in hose wall thickness, outer diameter, reinforcement type and material, or manufacturer tolerances can affect sealing integrity, clamp performance and safe working pressure. For reliable, certified connections and to maintain warranty and safety standards, use BURGACLIP fittings and seals with BU-3090 hoses as intended or consult BURGACLIP technical support for approved cross-compatibility and installation guidance before using the Service Case parts on other hose types.

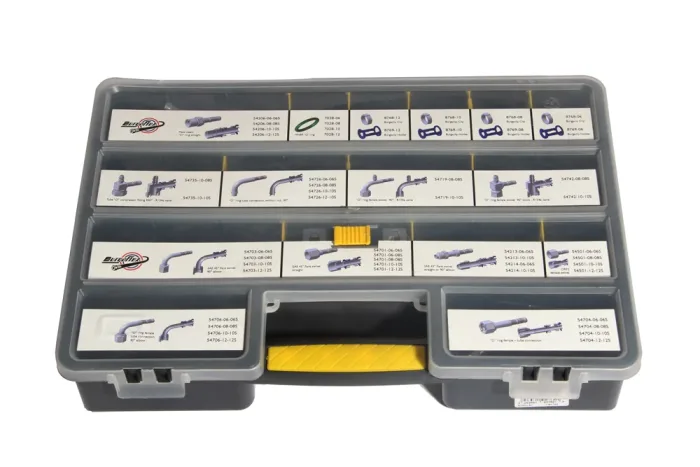

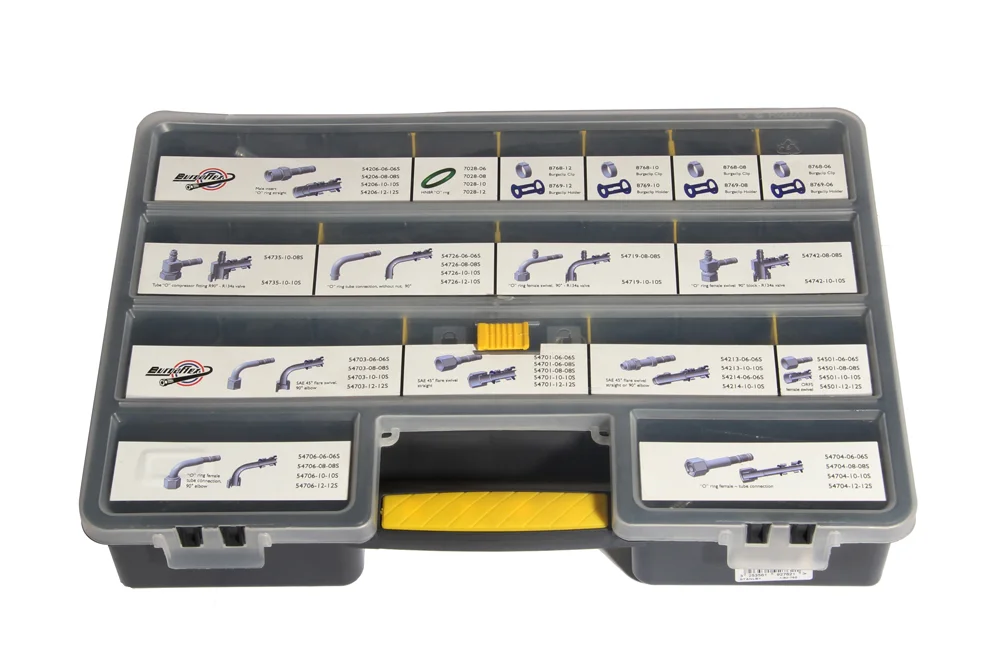

Case service BURGACLIP

Additional information

Case contains set various fittings BURGACLIP for hoses type BU-3090 in sizes DN 8, 10, 12, 16, comprising most often occurring cases service. consists with: 80 straps clamping type BURGACLIP, 40 clips stabilising type BURGACLIP, 39 ends type BURGACLIP (straight, angled, with threads UNF, for compressors, type SAE, ORFS) and 80 O-rings HNBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
BU-CASE-2	Case serwisowa BURGACLIP	-	-	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Case contains set various fittings BURGACLIP for hoses type BU-3090 in sizes DN 8, 10, 12, 16, comprising most often occurring cases service. consists with: 80 straps clamping type BURGACLIP, 40 clips stabilising type BURGACLIP, 39 ends type BURGACLIP (straight, angled, with threads UNF, for compressors, type SAE, ORFS) and 80 O-rings HNBR.
