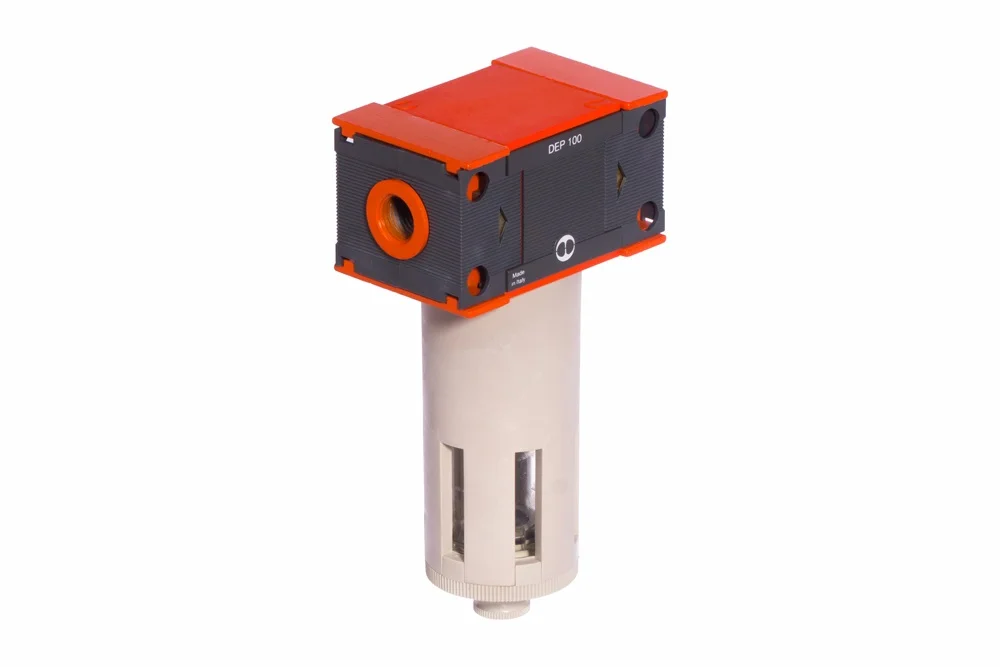

Compressed Air Fine Filter D100–200–300 with End Plates, SKILLAIR® Series
The SKILLAIR® D series filter with end plates ensures highly efficient purification of compressed air by removing both liquid and solid impurities with an exceptional filtration efficiency of 99.97% at 0.01 µm. Available in three sizes—100, 200, and 300—it offers flexibility to match diverse system requirements, delivering flow rates of 230 l/min, 360 l/min, and 500 l/min respectively at 6 bar inlet pressure (Δp = 1 bar). Designed to operate under supply pressures up to 15 bar and temperatures up to +50°C, the filter guarantees reliable performance even in demanding industrial environments. With BSP connections ranging from 1/4″ to 1″ and multiple condensate discharge options—manual, semi-automatic (RMSA), or fully automatic (SAC, RA)—it provides maximum adaptability and ease of integration. Engineered for precision and durability, the SKILLAIR® D series is the ideal solution for ensuring clean, safe, and efficient compressed air in applications where quality and reliability are critical.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
The SKILLAIR® D series filter with end plates ensures highly efficient purification of compressed air by removing both liquid and solid impurities with an exceptional filtration efficiency of 99.97% at 0.01 µm. Available in three sizes—100, 200, and 300—it offers flexibility to match diverse system requirements, delivering flow rates of 230 l/min, 360 l/min, and 500 l/min respectively at 6 bar inlet pressure (Δp = 1 bar). Designed to operate under supply pressures up to 15 bar and temperatures up to +50°C, the filter guarantees reliable performance even in demanding industrial environments. With BSP connections ranging from 1/4″ to 1″ and multiple condensate discharge options—manual, semi-automatic (RMSA), or fully automatic (SAC, RA)—it provides maximum adaptability and ease of integration. Engineered for precision and durability, the SKILLAIR® D series is the ideal solution for ensuring clean, safe, and efficient compressed air in applications where quality and reliability are critical.
Additional information
| Maximum operating temperature [°C] | 50 |
|---|
