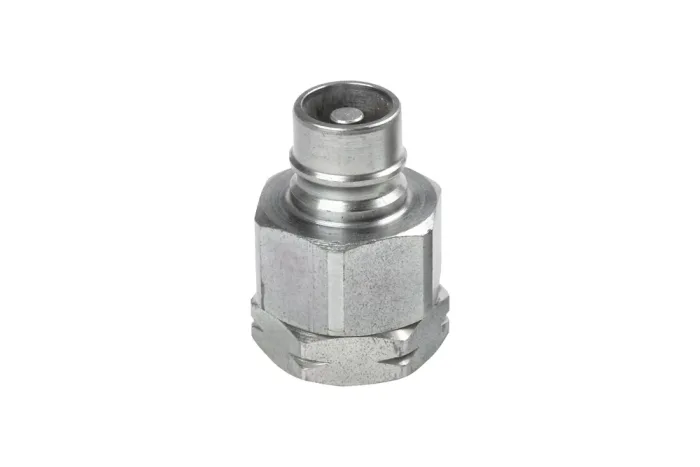

Plug quick coupling SNAP-TITE with a female BSP thread and NPTF with valve, steel carbon, series H
Plug quick coupling SNAP-TITE with thread internal BSP and NPTF production American is characterized unique design valve, co allows on achieving laminar flows. depending on use should select appropriate Material coupling and seal. standard: MIL-C-51234. Application: hydraulics power (oil hydraulic), industrial (water, steam, fuels and oils, gases chemicals). Working pressure: up to 448 bar (depending on size quick coupling), Safety factor 2:1. Material: steel carbon, galvanized. sealing: NBR (Operating temperature: od -35°C up to +120°C), Viton (Operating temperature: od -26°C up to +204°C). Flow rate has been stated for a drop pressure 3 bar.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Plug quick coupling SNAP-TITE with thread internal BSP and NPTF production American is characterized unique design valve, co allows on achieving laminar flows. depending on use should select appropriate Material coupling and seal. standard: MIL-C-51234. Application: hydraulics power (oil hydraulic), industrial (water, steam, fuels and oils, gases chemicals). Working pressure: up to 448 bar (depending on size quick coupling), Safety factor 2:1. Material: steel carbon, galvanized. sealing: NBR (Operating temperature: od -35°C up to +120°C), Viton (Operating temperature: od -26°C up to +204°C). Flow rate has been stated for a drop pressure 3 bar.
Additional information
| Material | CS – steel (cast iron) |
|---|
