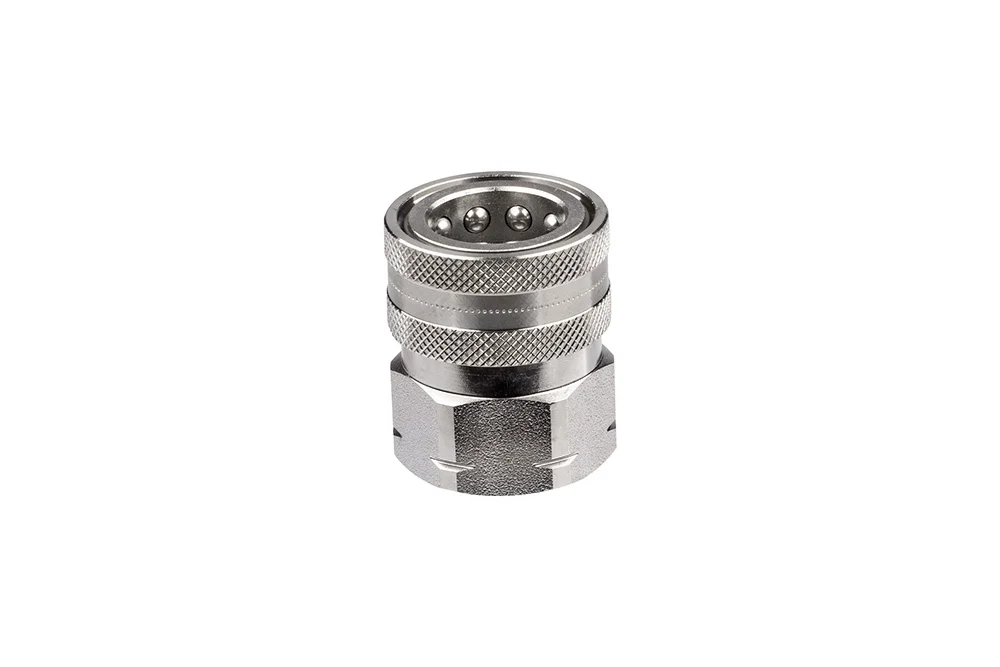

Socket quick coupling SNAP-TITE with a female BSP thread and NPSF without valve, steel AISI 316, series H

Additional information

Material

SS – stainless steel

Socket quick coupling SNAP-TITE with thread internal BSP and NPSF production American, without valve. Application: hydraulics power (oil hydraulic), industrial (water, steam, fuels and oils, gases chemicals). depending on use should select appropriate Material coupling and seal. standard: MIL-C-51234. Working pressure: up to 690 bar (depending on size quick coupling), Safety factor 2:1. Material: steel AISI 316. sealing: NBR (Operating temperature: od -35°C up to +120°C), Viton (Operating temperature: od -26°C up to +204°C). Flow rate has been stated for a drop pressure 3 bar.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
SN-SPHC12-12RPSocket H 3/4", 3/4" BSP female, AISI 316, without valve-138In stock0 €
Enquiry
SN-SPHC12-12RPVSocket H 3/4", 3/4" BSP female, AISI 316, without valve, Viton-138In stock0 €
Enquiry
SN-SPHC16-16RPSocket H 1", 1" BSP female, AISI 316, without valve-138In stock0 €
Enquiry
SN-SPHC24-24RPSocket H 1.1/2", 1.1/2" BSP female, AISI 316, without valve-103In stock0 €
Enquiry
SN-SPHC32-32RPSocket H 2", 2" BSP female, AISI 316, without valve-34In stock0 €
Enquiry
SN-SPHC4-4FSocket H 1/4", 1/4" female NPSF, AISI 316, without valve-345In stock0 €
Enquiry
SN-SPHC4-4RPSocket H 1/4", 1/4" BSP female, AISI 316, without valve-345In stock0 €
Enquiry
SN-SPHC4-4RPSLSocket H 1/4", 1/4" BSP female, AISI 316, without valve, pin-345In stock0 €
Enquiry
SN-SPHC4-4RPVSocket H 1/4", 1/4" BSP female, AISI 316, without valve, Viton-345In stock0 €
Enquiry
SN-SPHC4-4RPVSLSocket H 1/4", 1/4" BSP female, AISI 316, without a valve, Viton, pin-345In stock0 €
Enquiry
SN-SPHC6-6RPSocket H 3/8", 3/8" BSP female, AISI 316, without valve-276In stock0 €
Enquiry
SN-SPHC6-6RPVSocket H 3/8", 3/8" BSP female, AISI 316, without valve, Viton-276In stock0 €
Enquiry
SN-SPHC8-8RPSocket H 1/2", 1/2" BSP female, AISI 316, without valve-259In stock0 €
Enquiry
SN-SPHC8-8RPSLSocket H 1/2", 1/2" BSP female, AISI 316, without valve, pin-259In stock0 €
Enquiry
SN-SPHC8-8RPVSocket H 1/2", 1/2" BSP female, AISI 316, without valve, Viton-259In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Socket quick coupling SNAP-TITE with thread internal BSP and NPSF production American, without valve. Application: hydraulics power (oil hydraulic), industrial (water, steam, fuels and oils, gases chemicals). depending on use should select appropriate Material coupling and seal. standard: MIL-C-51234. Working pressure: up to 690 bar (depending on size quick coupling), Safety factor 2:1. Material: steel AISI 316. sealing: NBR (Operating temperature: od -35°C up to +120°C), Viton (Operating temperature: od -26°C up to +204°C). Flow rate has been stated for a drop pressure 3 bar.

Additional information

Material

SS – stainless steel
