Can the 90° Quick-Connect Gauge Socket with GW, No Valve, CEJN 358 SNAP-CHECK be connected under pressure up to 300 bar without leakage or damage?

Yes. The 90° Quick-Connect Gauge Socket with GW, No Valve, CEJN 358 SNAP-CHECK can be connected under pressure up to 300 bar without leakage or damage. It is engineered with galvanized steel bodies and durable NBR seals for leak-free operation, supports connection under pressure to 300 bar, and has a working pressure rating of 600 bar. When connected, the assembly maintains a burst pressure of 1300 bar, providing ample safety margin and reliable performance under load.

Does the 90° Quick-Connect Gauge Socket with GW, No Valve, CEJN 358 SNAP-CHECK maintain leak-free performance and safety when used continuously at its 600 bar working pressure?

Yes. The 90° Quick-Connect Gauge Socket with GW, No Valve, CEJN 358 SNAP-CHECK is engineered for continuous use at its 600 bar working pressure while maintaining leak-free performance and safety. Key points from the product description: - Materials and seals: Galvanized steel construction with durable NBR seals provides long-term resistance in demanding conditions and a temperature range of -30°C to +100°C, supporting seal integrity under continuous load. - Pressure ratings: Working pressure is specified at 600 bar. Minimum burst pressure for the unplugged socket is 2400 bar and 1300 bar when connected, giving large safety margins above the working pressure. - Design and function: Hardened steel plugs are permanently integrated; sockets connect to gauges via hose for secure measurement. The precise coupling design is stated to ensure leak-free operation and dependable measurement points. - Operational limits: Connection under pressure is permitted up to 300 bar (not for hot-plugging above that), but once connected the assembly is rated for continuous 600 bar operation. Taken together, the specified materials, seals, precise coupling design and conservative burst-pressure margins indicate the product is suitable for continuous, leak-free, and safe operation at 600 bar when used within its stated temperature and connection limits.

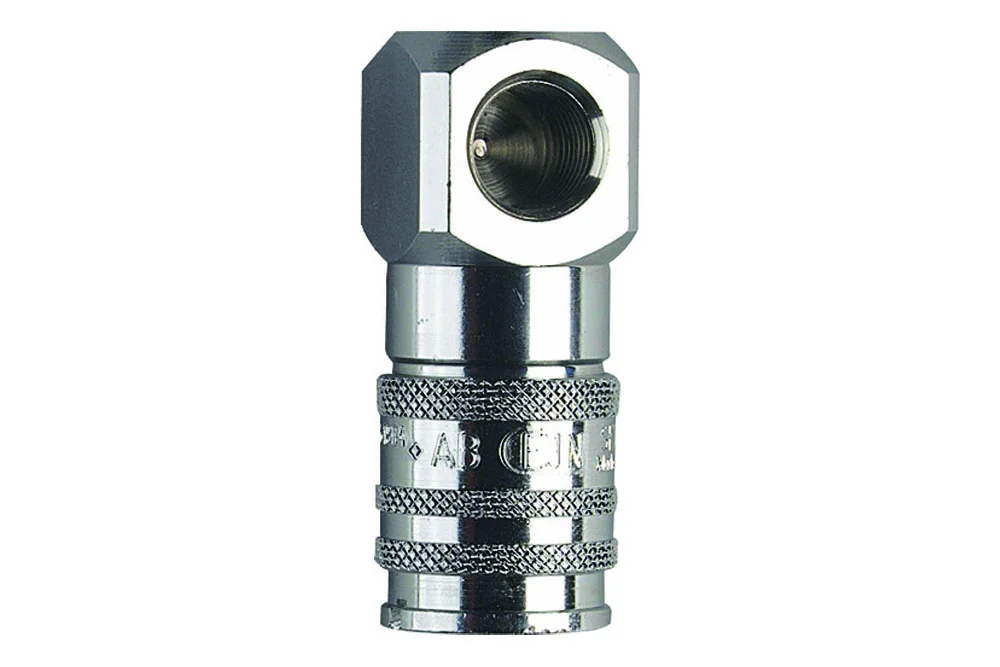

90° Quick-Connect Gauge Socket with GW, No Valve, CEJN 358 SNAP-CHECK

All products, Quick-connect measurement fittings/

Additional information

Material	CS – steel (cast iron)

The 90° socket for SNAP-CHECK measurement quick couplings, manufactured in Sweden, is a high-performance solution designed for precise pressure monitoring in hydraulic systems. Engineered from galvanized steel and equipped with durable NBR seals, it guarantees long-lasting resistance to demanding operating conditions, with a temperature range from -30°C to +100°C. The hardened steel plugs are permanently integrated into the hydraulic system, while the sockets connect via hose to the pressure gauge, enabling quick and secure measurements. Connection under pressure is possible up to 300 bar, with a working pressure of 600 bar and a minimum burst pressure of 2400 bar for the unplugged socket, ensuring maximum safety and reliability. When connected, the system maintains a working pressure of 600 bar and a burst pressure of 1300 bar, offering consistent performance even under heavy loads. The precise design of the couplings ensures leak-free operation and dependable measurement points, while the wide connection range of the plugs allows flexible system configuration. Delivered with protective red plastic caps as standard, these sockets combine durability, safety, and ease of use, making them an essential component for efficient hydraulic pressure monitoring.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
CJ-H-103580232	90° socket without Snap-Check measurement quick coupling valve, GW 1/4" BSP	-	600	In stock	0 €		Enquiry
CJ-H-103580432	90° socket without Snap-Check measurement quick coupling valve, GW 1/4" NPT	-	600	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 90° socket for SNAP-CHECK measurement quick couplings, manufactured in Sweden, is a high-performance solution designed for precise pressure monitoring in hydraulic systems. Engineered from galvanized steel and equipped with durable NBR seals, it guarantees long-lasting resistance to demanding operating conditions, with a temperature range from -30°C to +100°C. The hardened steel plugs are permanently integrated into the hydraulic system, while the sockets connect via hose to the pressure gauge, enabling quick and secure measurements. Connection under pressure is possible up to 300 bar, with a working pressure of 600 bar and a minimum burst pressure of 2400 bar for the unplugged socket, ensuring maximum safety and reliability. When connected, the system maintains a working pressure of 600 bar and a burst pressure of 1300 bar, offering consistent performance even under heavy loads. The precise design of the couplings ensures leak-free operation and dependable measurement points, while the wide connection range of the plugs allows flexible system configuration. Delivered with protective red plastic caps as standard, these sockets combine durability, safety, and ease of use, making them an essential component for efficient hydraulic pressure monitoring.
