Is the Ball Valve 2-Piece, Stainless Steel, BSP Female Thread, H-710 suitable for both liquid and gas services up to 137 bar and -42°C to +204°C?

Yes. Ball Valve 2-Piece, Stainless Steel, BSP Female Thread, H-710 is suitable for both liquid and gas services. It is engineered for precise, reliable control in demanding industrial environments (chemical, petrochemical, pharmaceutical, energy, process engineering), provides exceptionally tight shut-off with minimal internal leakage, and is manufactured from AISI 316 stainless steel with PTFE-based seals for dependable performance. The specified operating temperature range is -42°C to +204°C and the working pressure rating is up to 137 bar. BSP female thread connections and compliance with ISO 15848-1:2006 (E) after nitrogen pressure testing further confirm its suitability for critical liquid and gas applications.

Can the Ball Valve 2-Piece, Stainless Steel, BSP Female Thread, H-710 maintain leak-tight performance and low operating torque after extended cycles in harsh chemical environments?

Yes. Ball Valve 2-Piece, Stainless Steel, BSP Female Thread, H-710 is designed to maintain leak-tight performance and low operating torque after extended cycles in harsh chemical environments. Key reasons: - Materials: AISI 316 stainless steel body and internal components provide strong corrosion resistance in aggressive chemical media; AISI 304/PVC lever adds corrosion-resistant operation. - Sealing: Modified PTFE ball seals and PTFE stem seals offer excellent chemical compatibility, low wear, and sustained sealing performance under repeated cycling. - Performance range: Rated for -42°C to +204°C and up to 137 bar, suitable for a wide range of aggressive process conditions. - Durability and torque: Two-piece construction and optimized sealing yield long-lasting durability with low operating torque throughout service life. - Certification and testing: Nitrogen pressure testing and ISO 15848-1:2006 (E) certification confirm low fugitive emissions and reliable sealing under cyclic and harsh conditions. Combined, these features make the H-710 well suited to retain leak-tightness and low operating torque in demanding chemical service, provided selection matches the specific chemical compatibility and operating conditions of the application.

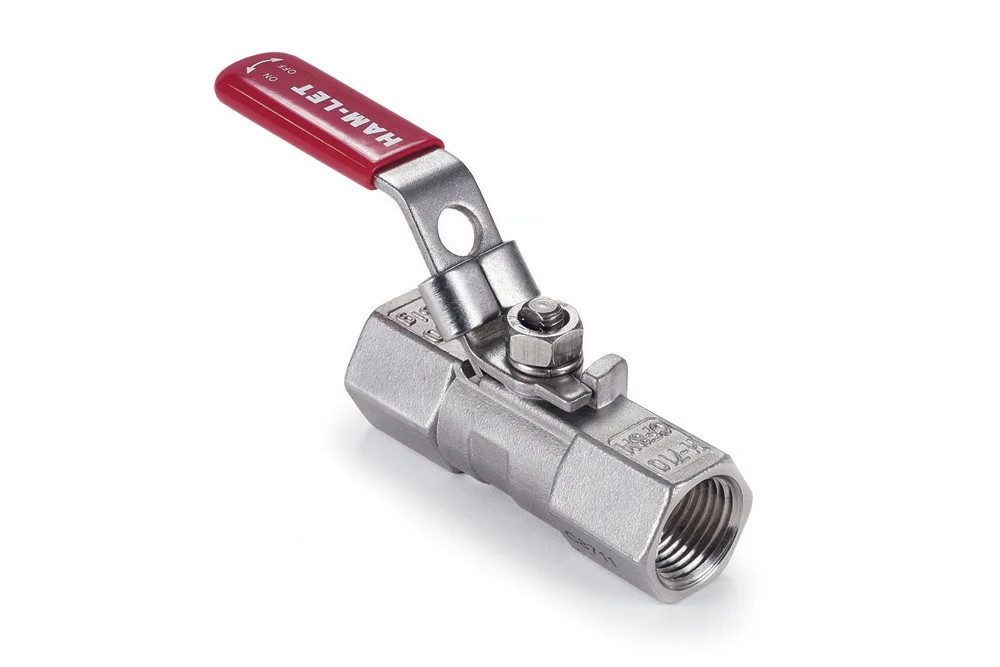

Ball Valve 2-Piece, Stainless Steel, BSP Female Thread, H-710

All products, Straight screw connection/

Additional information

Material	SS – stainless steel

The compact two-piece medium-pressure ball valve is engineered for precise and reliable performance in demanding industrial environments, ensuring safe and efficient control of liquids and gases across chemical, petrochemical, pharmaceutical, energy, and process engineering applications. Designed for direct pipeline installation, it offers a wide size range to guarantee optimal flow capacity, exceptionally tight shut-off with minimal internal leakage, and long-lasting durability with low operating torque. Manufactured from robust AISI 316 stainless steel for both body and internal components, complemented by a corrosion-resistant AISI 304/PVC lever, the valve combines strength with ease of operation. Advanced sealing technology with modified PTFE ball seals and PTFE stem seals ensures dependable performance even under extreme conditions. With an operating temperature range from -42°C to +204°C and working pressure up to 137 bar, it delivers versatility and reliability in critical processes. Each unit undergoes rigorous nitrogen pressure testing and is certified to ISO 15848-1:2006 (E), guaranteeing compliance with the highest international standards. Featuring BSP female thread connections, this valve is the ideal solution for industries seeking maximum safety, efficiency, and long-term operational reliability.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HM-H710-SS-G-04-TLD	2-piece ball valve, 2 x G 1/4" BSP, PTFE sealing, SS	5	135	In stock	Enquiry
HM-H710-SS-G-06-TLD	2-piece ball valve, 2 x G 3/8" BSP, PTFE sealing, SS	6	135	In stock	Enquiry
HM-H710-SS-G-08-TLD	2-piece ball valve, 2 x G 1/2" BSP, PTFE sealing, SS	8	135	In stock	Enquiry
HM-H710-SS-G-12-TLD	2-piece ball valve, 2 x G 3/4" BSP, PTFE sealing, SS	12	135	In stock	Enquiry
HM-H710-SS-G-16-TLD	2-piece ball valve, 2 x 1" BSP female thread, PTFE sealing, stainless steel	16	135	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The compact two-piece medium-pressure ball valve is engineered for precise and reliable performance in demanding industrial environments, ensuring safe and efficient control of liquids and gases across chemical, petrochemical, pharmaceutical, energy, and process engineering applications. Designed for direct pipeline installation, it offers a wide size range to guarantee optimal flow capacity, exceptionally tight shut-off with minimal internal leakage, and long-lasting durability with low operating torque. Manufactured from robust AISI 316 stainless steel for both body and internal components, complemented by a corrosion-resistant AISI 304/PVC lever, the valve combines strength with ease of operation. Advanced sealing technology with modified PTFE ball seals and PTFE stem seals ensures dependable performance even under extreme conditions. With an operating temperature range from -42°C to +204°C and working pressure up to 137 bar, it delivers versatility and reliability in critical processes. Each unit undergoes rigorous nitrogen pressure testing and is certified to ISO 15848-1:2006 (E), guaranteeing compliance with the highest international standards. Featuring BSP female thread connections, this valve is the ideal solution for industries seeking maximum safety, efficiency, and long-term operational reliability.
