Is the Stainless Steel Angle Fitting W (DIN 2353, 24°) compatible with standard DIN 2353 nuts and ferrules for leak-free assembly?

Yes. The Stainless Steel Angle Fitting W (DIN 2353, 24°) is designed to work with standard DIN 2353 nuts and ferrules for a leak-free assembly. Its standardized 24° socket geometry and external metric threads on both sides conform to DIN 2353 specifications, ensuring proper sealing when used with matching DIN 2353 nuts and ferrules. Manufactured from high-grade AISI 316 stainless steel and offered in LL, L, and S series for different pressure classes, the fitting provides reliable mechanical compatibility, corrosion resistance, and long-term sealing performance when assembled correctly with the appropriate nut/ferrule and tightened to the specified torque.

Can the Stainless Steel Angle Fitting W (DIN 2353, 24°) withstand continuous exposure to seawater and corrosive chemicals in marine environments?

Yes. The Stainless Steel Angle Fitting W (DIN 2353, 24°) is manufactured from AISI 316 stainless steel, which provides outstanding corrosion resistance and is specifically noted as suitable for aggressive environments, including marine and chemical applications. This makes it well suited for continuous exposure to seawater and many corrosive chemicals encountered in marine environments. Considerations: - AISI 316 resists pitting and crevice corrosion better than 304 in chloride-rich (seawater) conditions, but its performance can vary with temperature, oxygenation, flow, and pollutant concentrations. - For highly aggressive or long-term immersion (e.g., static, warm seawater, polluted harbors, or exposure to strong acids/alkalis), more corrosion-resistant alloys (e.g., duplex stainless steels, 6Mo alloys) or additional protective measures may be advisable. - Correct series selection (LL, L, S) should match pressure and mechanical demands; robust installation and good maintenance (regular inspection, cleaning, and avoiding galvanic coupling with dissimilar metals) will maximize service life. Bottom line: For most marine and chemical applications, the Stainless Steel Angle Fitting W will perform well under continuous seawater and corrosive exposure, but assess specific chemical concentrations, temperatures, and service conditions to confirm suitability or consider higher-alloy options if conditions are extreme.

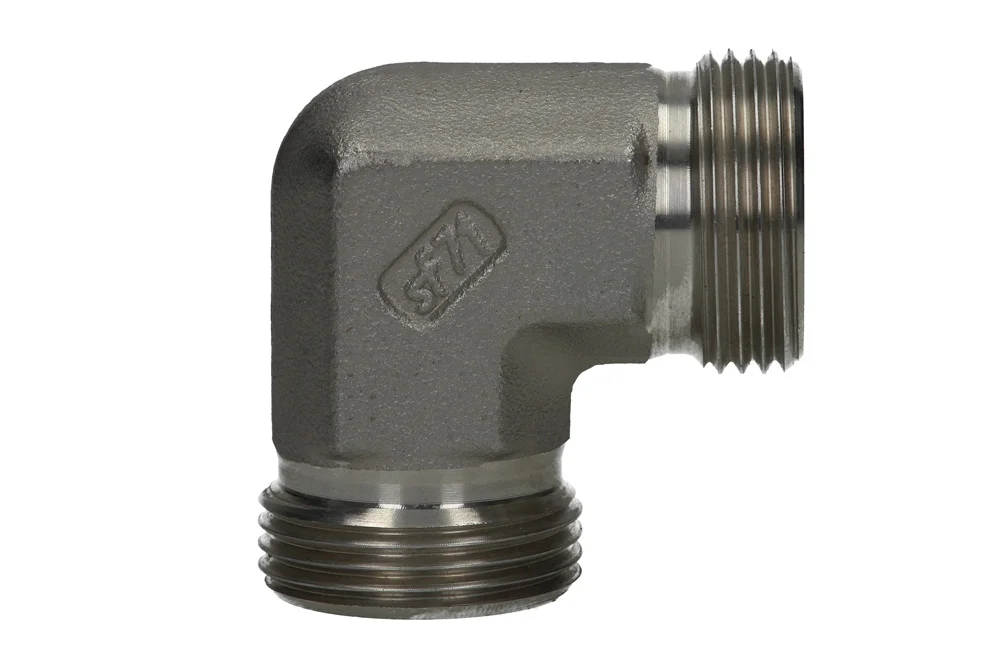

Stainless Steel Angle Fitting W

Additional information

Material	SS – stainless steel

The DIN 2353 angled fitting, type W, is a precision-engineered 24° socket designed with external metric threads on both sides, ensuring secure and reliable connections in demanding hydraulic and pneumatic systems. Manufactured from high-grade AISI 316 stainless steel, it offers outstanding resistance to corrosion, making it ideal for use in aggressive environments, including marine, chemical, and industrial applications. Available in three robust series—LL (very light), L (light), and S (heavy)—this fitting provides versatile solutions tailored to different pressure ranges and installation requirements. Its durable construction guarantees long-lasting performance, while the standardized DIN 2353 design ensures compatibility with a wide range of systems and components. Engineered for efficiency and safety, this angled fitting not only simplifies assembly but also enhances system reliability, making it a trusted choice for professionals seeking superior quality and durability in fluid transfer technology.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-W-06L-SS	DIN 2353 fitting W 6L, AISI 316	-	500	In stock	Enquiry
HD-W-06LL-SS	DIN 2353 fitting W 6LL, AISI 316	-	100	In stock	Enquiry
HD-W-06S-SS	DIN 2353 fitting W 6S, AISI 316	-	800	In stock	Enquiry
HD-W-08L-SS	DIN 2353 fitting W 8L, AISI 316	-	500	In stock	Enquiry
HD-W-08S-SS	DIN 2353 fitting W 8S, AISI 316	-	800	In stock	Enquiry
HD-W-10L-SS	DIN 2353 fitting W 10L, AISI 316	-	500	In stock	Enquiry
HD-W-10S-SS	DIN 2353 fitting W 10S, AISI 316	-	800	In stock	Enquiry
HD-W-12L-SS	DIN 2353 fitting W 12L, AISI 316	-	400	In stock	Enquiry
HD-W-12S-SS	DIN 2353 fitting W 12S, AISI 316	-	630	In stock	Enquiry
HD-W-14S-SS	DIN 2353 fitting W 14S, AISI 316	-	630	In stock	Enquiry
HD-W-15L-SS	DIN 2353 fitting W 15L, AISI 316	-	400	In stock	Enquiry
HD-W-16S-SS	DIN 2353 fitting W 16S, AISI 316	-	630	In stock	Enquiry
HD-W-18L-SS	DIN 2353 fitting W 18L, AISI 316	-	400	In stock	Enquiry
HD-W-20S-SS	DIN 2353 fitting W 20S, AISI 316	-	420	In stock	Enquiry
HD-W-22L-SS	DIN 2353 fitting W 22L, AISI 316	-	250	In stock	Enquiry
HD-W-25S-SS	DIN 2353 fitting W 25S, AISI 316	-	420	In stock	Enquiry
HD-W-28L-SS	DIN 2353 fitting W 28L, AISI 316	-	250	In stock	Enquiry
HD-W-30S-SS	DIN 2353 fitting W 30S, AISI 316	-	420	In stock	Enquiry
HD-W-35L-SS	DIN 2353 fitting W 35L, AISI 316	-	250	In stock	Enquiry
HD-W-38S-SS	DIN 2353 fitting W 38S, AISI 316	-	420	In stock	Enquiry
HD-W-42L-SS	DIN 2353 fitting W 42L, AISI 316	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The DIN 2353 angled fitting, type W, is a precision-engineered 24° socket designed with external metric threads on both sides, ensuring secure and reliable connections in demanding hydraulic and pneumatic systems. Manufactured from high-grade AISI 316 stainless steel, it offers outstanding resistance to corrosion, making it ideal for use in aggressive environments, including marine, chemical, and industrial applications. Available in three robust series—LL (very light), L (light), and S (heavy)—this fitting provides versatile solutions tailored to different pressure ranges and installation requirements. Its durable construction guarantees long-lasting performance, while the standardized DIN 2353 design ensures compatibility with a wide range of systems and components. Engineered for efficiency and safety, this angled fitting not only simplifies assembly but also enhances system reliability, making it a trusted choice for professionals seeking superior quality and durability in fluid transfer technology.
