Is AISI 304 Stainless Steel Braided Mesh suitable for food-processing hoses and resistant to corrosion from common food acids?

Yes — AISI 304 Stainless Steel Braided Mesh is generally suitable for food‑processing hoses and offers good resistance to corrosion from many common food acids. AISI 304 is an austenitic stainless steel with good corrosion resistance, strength and flexibility; when formed into a braided mesh it protects hoses from mechanical damage, abrasion, elevated temperatures and pressure, and is easy to secure with clamps or sleeves. These properties make AISI 304 Stainless Steel Braided Mesh appropriate for a wide range of food‑industry applications. Caveats: 304 resists weak organic acids (acetic, lactic), mild acidic environments and frequent cleaning, but it is less resistant than higher‑alloy grades (e.g., 316) to strong chlorides, concentrated acids or prolonged exposure to salty/process brine. If the process involves high chloride levels, aggressive sanitizers, steam at very high temperatures, or pH extremes, consider AISI 316 or consult a materials specialist. Ensure correct braid construction, surface finish and proper cleaning procedures to maintain hygiene and corrosion resistance.

Can AISI 304 Stainless Steel Braided Mesh withstand repeated steam sterilization and high-temperature cleaning processes in food-processing environments?

Yes. AISI 304 Stainless Steel Braided Mesh Format is well suited to repeated steam sterilization and high‑temperature cleaning in food‑processing environments. AISI 304 stainless steel offers good heat resistance and corrosion resistance; the braid’s durable woven structure protects the underlying hose from mechanical damage and elevated temperatures, supporting long‑term performance under intensive use. Its construction also tolerates frequent exposure to steam and common cleaning agents used in food processing, and it can be easily secured with clamps or sleeves for hygienic installations. For maximum longevity in aggressive CIP/SIP regimes or extremely acidic/haline environments, consider verifying specific cycle temperatures and chemicals against AISI 304 limits or evaluating higher‑grade alloys (e.g., 316) if chloride exposure or frequent extreme conditions are expected.

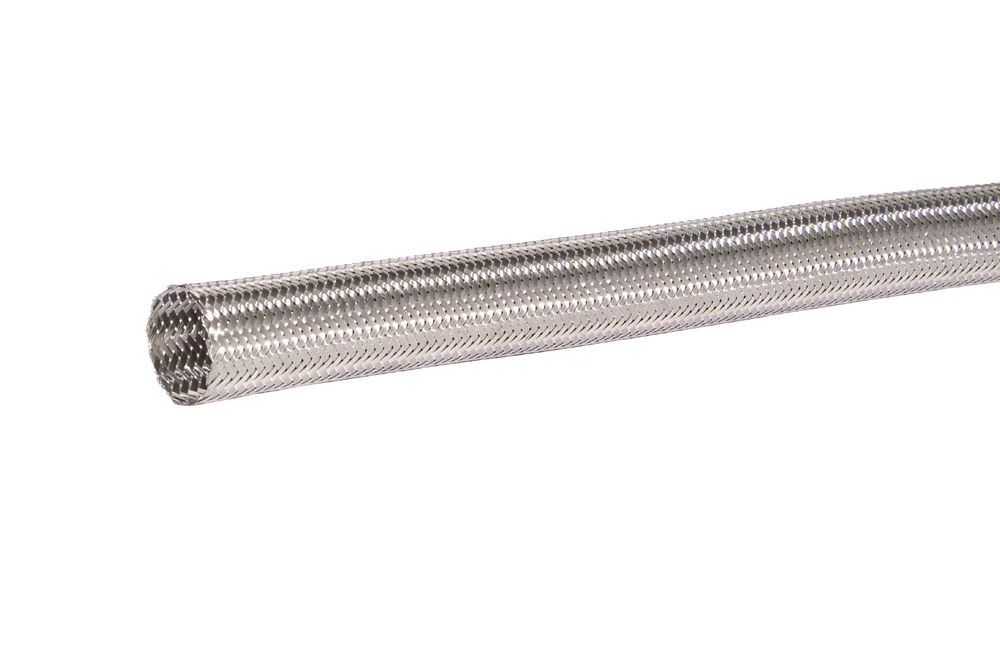

Braid of steel stainless AISI 304

All products, Covers/

Additional information

Standard length [m]	25, 50

Flexible a steel braid, used for securing hoses against damage mechanical, abrasion and temperature. ensures also increase ich strength at elevated pressure. can be clamped a clamp crimp or ferrules. Material: steel AISI 304.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AT-304B-006	A steel braid 304 for a hose 1/4" (ID 13 mm)	-	-	In stock	Enquiry
AT-304B-006X	A steel braid 304 for a hose 1/4" (ID 10.5 mm)	-	-	In stock	Enquiry
AT-304B-010	A steel braid 304 for a hose 3/8" (ID 16.5 mm)	-	-	In stock	Enquiry
AT-304B-010X	A steel braid 304 for a hose 3/8" (ID 15.5 mm)	-	-	In stock	Enquiry
AT-304B-012	A steel braid 304 for a hose 1/2" (ID 21.5 mm)	-	-	In stock	Enquiry
AT-304B-012X	A steel braid 304 for a hose 1/2" (ID 18.5 mm)	-	-	In stock	Enquiry
AT-304B-020	A steel braid 304 for a hose 3/4" (ID 28.5 mm)	-	-	In stock	Enquiry
AT-304B-020X	A steel braid 304 for a hose 3/4" (ID 28.5 mm)	-	-	In stock	Enquiry
AT-304B-025	A steel braid 304 for a hose 1" (ID 36 mm)	-	-	In stock	Enquiry
AT-304B-025X	A steel braid 304 for a hose 1" (ID 34 mm)	-	-	In stock	Enquiry
AT-304B-032	A steel braid 304 for a hose 1.1/4" (ID 43.5 mm)	-	-	In stock	Enquiry
AT-304B-032X	A steel braid 304 for a hose 1.1/4" (ID 44.5 mm)	-	-	In stock	Enquiry
AT-304B-040	A steel braid 304 for a hose 1.1/2" (ID 53 mm)	-	-	In stock	Enquiry
AT-304B-040X	A steel braid 304 for a hose 1.1/2" (ID 53.5 mm)	-	-	In stock	Enquiry
AT-304B-050	A steel braid 304 for a hose 2" (ID 67.5 mm)	-	-	In stock	Enquiry
AT-304B-050X	A steel braid 304 for a hose 2" (ID 64 mm)	-	-	In stock	Enquiry
AT-304B-065	A steel braid 304 for a hose 2.1/2" (ID 81.5 mm)	-	-	In stock	Enquiry
AT-304B-080	A steel braid 304 for a hose 3" (ID 96 mm)	-	-	In stock	Enquiry
AT-304B-100	A steel braid 304 for a hose 4"	-	-	In stock	Enquiry
AT-304B-125	A steel braid 304 for a hose 5"	-	-	In stock	Enquiry
AT-304B-150	A steel braid 304 for a hose 6"	-	-	In stock	Enquiry
AT-304B-200	A steel braid 304 for a hose 8"	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Flexible a steel braid, used for securing hoses against damage mechanical, abrasion and temperature. ensures also increase ich strength at elevated pressure. can be clamped a clamp crimp or ferrules. Material: steel AISI 304.
