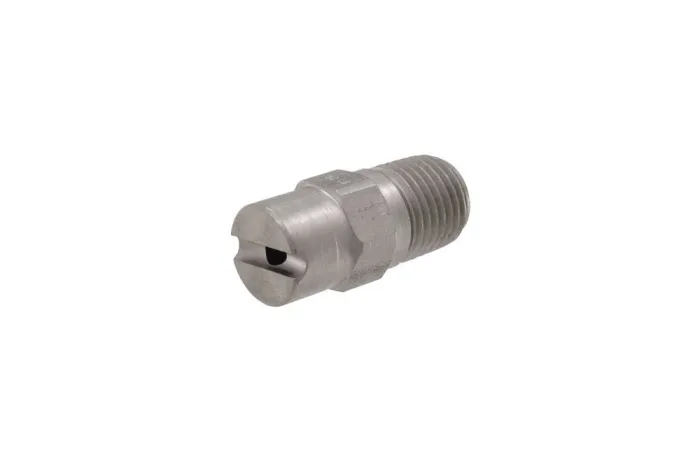

1/4″ Flat Spray Nozzle, BSPT Female, Stainless Steel
The 1/4″ flat angle spray nozzle with external BSPT thread is a durable and efficient solution designed for precise liquid distribution in demanding applications. Crafted from high‑quality stainless steel, it ensures excellent resistance to corrosion, high temperatures, and mechanical wear, making it ideal for long‑term use in industrial environments. Its flat spray pattern provides uniform coverage, optimizing cleaning, cooling, or coating processes while minimizing liquid consumption. The external BSPT thread allows quick and secure mounting, for example with a lance via coupling, ensuring easy integration into existing systems. Thanks to its robust construction and reliable performance, this nozzle is a versatile choice for industries seeking consistent results, reduced downtime, and cost‑effective operation.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| AK-NOZ0515 | Spray nozzle, spray angle 5° (15.3 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ0520 | Spray nozzle, spray angle 5° (20 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ0525 | Spray nozzle, spray angle 5° (26 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ0530 | Spray nozzle, spray angle 5° (31 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ0540 | Spray nozzle, spray angle 5° (41 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ1513 | Spray nozzle, spray angle 15° (13.3 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ1514 | Spray nozzle, spray angle 15° (14.3 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ1515 | Spray nozzle, spray angle 15° (15.3 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ1520 | Spray nozzle, spray angle 15° (20 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ1525 | Spray nozzle, spray angle 15° (26 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ1530 | Spray nozzle, spray angle 15° (31 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ1535 | Spray nozzle, spray angle 15° (36 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ1540 | Spray nozzle, spray angle 15° (41 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ1550 | Spray nozzle, spray angle 15° (51 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ1560 | Spray nozzle, spray angle 15° (62 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ2513 | Spray nozzle, spray angle 25° (13.3 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ2514 | Spray nozzle, spray angle 25° (14.3 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ2515 | Spray nozzle, spray angle 25° (15.3 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ2520 | Spray nozzle, spray angle 25° (20 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ2525 | Spray nozzle, spray angle 25° (26 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ2530 | Spray nozzle, spray angle 25° (31 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ2535 | Spray nozzle, spray angle 25° (36 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ2540 | Spray nozzle, spray angle 25° (41 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ2550 | Spray nozzle, spray angle 25° (51 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ2560 | Spray nozzle, spray angle 25° (62 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ4013 | Spray nozzle, spray angle 40° (13.3 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ4015 | Spray nozzle, spray angle 40° (15.3 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ4020 | Spray nozzle, spray angle 40° (20 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ4025 | Spray nozzle, spray angle 40° (26 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ4030 | Spray nozzle, spray angle 40° (31 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ4035 | Spray nozzle, spray angle 40° (36 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ4040 | Spray nozzle, spray angle 40° (41 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ4050 | Spray nozzle, spray angle 40° (51 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ4060 | Spray nozzle, spray angle 40° (62 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ5015 | Spray nozzle, spray angle 50° (15.3 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ5020 | Spray nozzle, spray angle 50° (20 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - | |
| AK-NOZ6515 | Spray nozzle, spray angle 65° (15.3 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ6520 | Spray nozzle, spray angle 65° (20 l/min - 20 bar), G 1/4" BSPT, SS | - | - | |
| AK-NOZ6530 | Spray nozzle, spray angle 65° (31 l/min - 20 bar), GZ 1/4" BSPT, SS | - | - |
The 1/4″ flat angle spray nozzle with external BSPT thread is a durable and efficient solution designed for precise liquid distribution in demanding applications. Crafted from high‑quality stainless steel, it ensures excellent resistance to corrosion, high temperatures, and mechanical wear, making it ideal for long‑term use in industrial environments. Its flat spray pattern provides uniform coverage, optimizing cleaning, cooling, or coating processes while minimizing liquid consumption. The external BSPT thread allows quick and secure mounting, for example with a lance via coupling, ensuring easy integration into existing systems. Thanks to its robust construction and reliable performance, this nozzle is a versatile choice for industries seeking consistent results, reduced downtime, and cost‑effective operation.
Additional information
| Standard length [m] | 10 |
|---|
