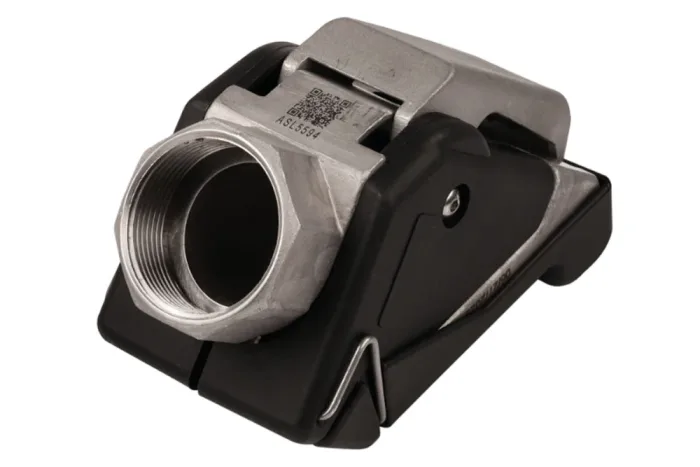

Plug coupling dry-break DRY-LINK with female thread, steel stainless
Plug (part tank) coupling dry-break DRY-LINK. coupling have unique construction ensuring safe and completely Leak-free connection installation (amount medium remaining on surface valve po disconnection is immeasurable). coupling DRY LINK is characterized: small weight, small dimensions and compact design – co allows easy operating in tight spaces; ease operation through trained the operator, difficulty disconnection through accidental persons; large, unobstructed Flow rate through coupling at small a drop pressure – thanks to thin disks valves set parallel for flow; ease cleaning, smooth bore internal, small amount parts internal, no dead space – coupling DRY LINK are ideal for liquids o high viscosity and applications demanding high level purity (substances food, pharmaceutical, cosmetic, paints, adhesives); coupling DRY LINK can be also used for powders and in industry petrochemical. Material: steel AISI 316. sealing: PTFE, Viton, EPDM or chemraz®. Connections: BSP female or NPT. Working pressure: 14.3 bar for couplings DN25 and DN40, 10.3 bar for couplings DN50, 8.3 bar for couplings DN80. Vacuum: for 0.94 bar. Operating temperature: od -29°C up to +110°C (Viton, EPDM, chemraz®); od -7°C up to +110°C (PTFE).
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Plug (part tank) coupling dry-break DRY-LINK. coupling have unique construction ensuring safe and completely Leak-free connection installation (amount medium remaining on surface valve po disconnection is immeasurable). coupling DRY LINK is characterized: small weight, small dimensions and compact design – co allows easy operating in tight spaces; ease operation through trained the operator, difficulty disconnection through accidental persons; large, unobstructed Flow rate through coupling at small a drop pressure – thanks to thin disks valves set parallel for flow; ease cleaning, smooth bore internal, small amount parts internal, no dead space – coupling DRY LINK are ideal for liquids o high viscosity and applications demanding high level purity (substances food, pharmaceutical, cosmetic, paints, adhesives); coupling DRY LINK can be also used for powders and in industry petrochemical. Material: steel AISI 316. sealing: PTFE, Viton, EPDM or chemraz®. Connections: BSP female or NPT. Working pressure: 14.3 bar for couplings DN25 and DN40, 10.3 bar for couplings DN50, 8.3 bar for couplings DN80. Vacuum: for 0.94 bar. Operating temperature: od -29°C up to +110°C (Viton, EPDM, chemraz®); od -7°C up to +110°C (PTFE).
Additional information
| Material | SS – stainless steel |
|---|
