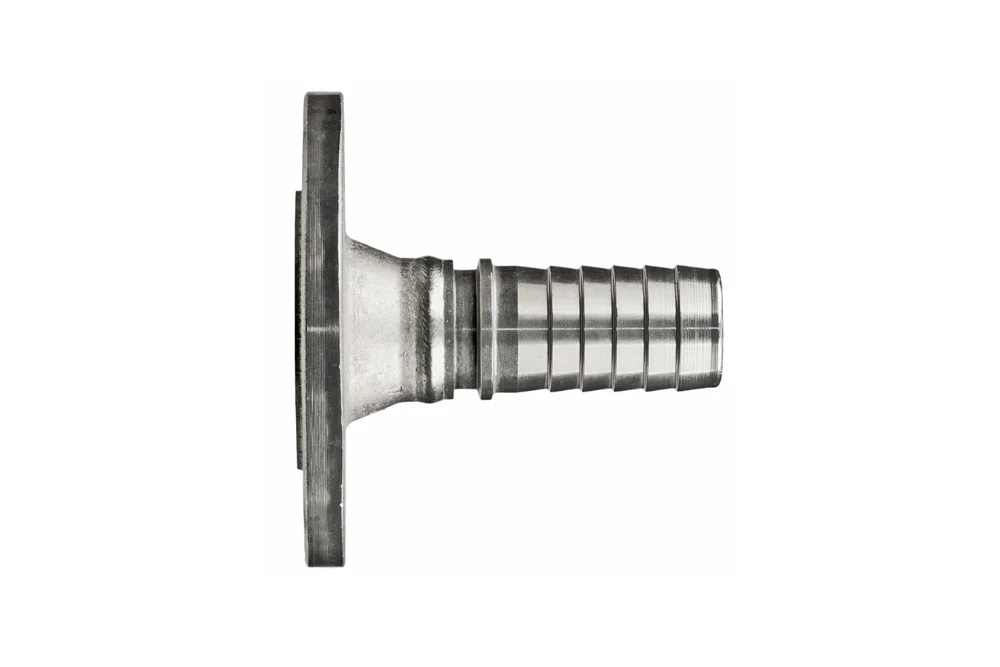

A fitting with a flange fixed FSS for hose for steam water acc. to EN 14473, steel stainless
A fitting FSS with a flange fixed, for hoses rubber for steam water, with serrated tail for hose, with a lock – for mounting in hose at means clamps shell for steam (EN 14423, DIN 2826, sizes 1/2” for 2”). Flange according to European standards (EN 10092-1) PN40 and PN16 and according to American ASA (ASME) standards 150 PSI and 300 PSI. Material: steel stainless AISI 316. Working pressure: 18 bar (+210°C) for steam saturated and in accordance with pressure working given class flange in tej temperature; for other applications in accordance with pressure working for given class flange (e.g. PN40) – selection in contact with Tubes International.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
A fitting FSS with a flange fixed, for hoses rubber for steam water, with serrated tail for hose, with a lock – for mounting in hose at means clamps shell for steam (EN 14423, DIN 2826, sizes 1/2” for 2”). Flange according to European standards (EN 10092-1) PN40 and PN16 and according to American ASA (ASME) standards 150 PSI and 300 PSI. Material: steel stainless AISI 316. Working pressure: 18 bar (+210°C) for steam saturated and in accordance with pressure working given class flange in tej temperature; for other applications in accordance with pressure working for given class flange (e.g. PN40) – selection in contact with Tubes International.
Additional information
| Material | SS – stainless steel |
|---|
