Is the DN10 Quick-Connect Socket with Hose Tail, Stainless Steel, Series 27KA compatible with hydraulic oils and high-temperature media up to 200°C?

The DN10 Quick-Connect Socket with Hose Tail, Stainless Steel, Series 27KA is compatible with hydraulic oils and high-temperature media up to 200°C, subject to the medium’s compatibility with the FKM (Viton) sealing. The coupling is rated for continuous operation from -15°C to +200°C depending on the medium, offers working pressures up to 35 bar, and is built from AISI 316/316Ti stainless steel for excellent corrosion and wear resistance. For specific hydraulic fluids or additives, verify chemical compatibility with FKM and confirm operating conditions to ensure seal and material suitability.

Can the DN10 Quick-Connect Socket with Hose Tail, Stainless Steel, Series 27KA be used safely in seawater or other highly corrosive marine environments?

The DN10 Quick-Connect Socket with Hose Tail, Stainless Steel, Series 27KA offers excellent corrosion resistance thanks to its AISI 316Ti and AISI 316 stainless steel construction (end, body, sleeve, valve, spring, ring and locking balls) and high-performance FKM seals. AISI 316/316Ti is commonly used in marine environments because of its improved resistance to pitting and crevice corrosion compared with 304 stainless steel. However, “safe use” in seawater or highly corrosive marine environments depends on several factors: - Exposure type: continuous immersion in seawater, splash/atmospheric exposure, or intermittent wetting will affect longevity. 316/316Ti performs well for splash and intermittent exposure; continuous immersion, especially in warm or stagnant water, increases corrosion risk. - Chloride concentration, temperature and flow: higher chloride levels, higher temperatures and low-oxygen stagnant conditions accelerate corrosion and crevice/pitting. - Mechanical wear and galvanic coupling: abrasive wear, fouling, or contact with dissimilar metals can promote localized corrosion. - Maintenance: regular rinsing with fresh water, inspection, and replacement of seals prolong service life. FKM seals resist many fluids but may degrade with certain aggressive chemicals. Recommendation: For occasional splash or general marine use the DN10 Quick-Connect Socket with Hose Tail, Stainless Steel, Series 27KA is suitable. For continuous seawater immersion, highly aggressive or warm/stagnant conditions, or critical applications, consult the manufacturer for specific marine qualification, consider higher-grade materials or protective measures (e.g., alloys with greater chloride resistance, sacrificial anodes, coatings), and implement a strict inspection and maintenance program.

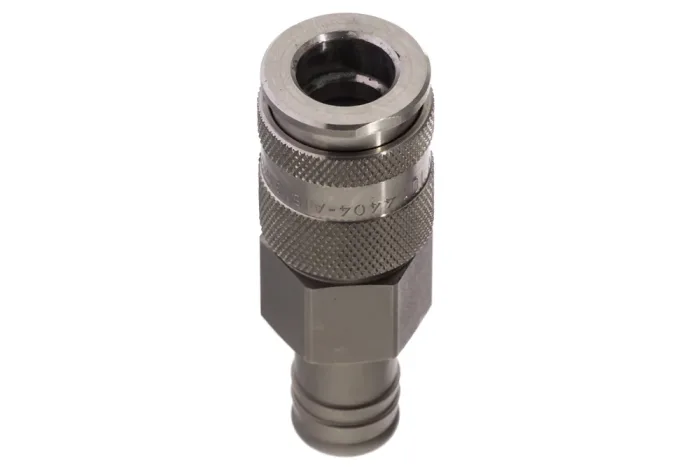

Socket quick coupling DN10, with fitting for hose, steel stainless, series 27KA

All products, General-purpose low-pressure quick couplings/

Additional information

Material	SS – stainless steel

Socket quick coupling single shut-off series 27 DN 10 with fitting for hose, equipped in valve ULTRA-FLO, allows optimal bore in ratio for rate body. guaranteed action in low and high temperatures. thanks to durable and exceptionally strong construction found use in industry heavy. Working pressure: 35 bar. flow capacity: 2400 l/min, Pe=6 bar, Δp=0.5 bar, air. Material: steel AISI 316Ti (A fitting, body socket, sleeve, valve, spring and ring), steel AISI 316 (balls locking). sealing: FKM. Operating temperature: od -15°C up to +200°C, depending on medium.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
RE-27KATF16EVX	Quick coupling socket type 27 DN 10 with fitting for 16 mm hose, AISI 316Ti, Viton	16	35	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Socket quick coupling single shut-off series 27 DN 10 with fitting for hose, equipped in valve ULTRA-FLO, allows optimal bore in ratio for rate body. guaranteed action in low and high temperatures. thanks to durable and exceptionally strong construction found use in industry heavy. Working pressure: 35 bar. flow capacity: 2400 l/min, Pe=6 bar, Δp=0.5 bar, air. Material: steel AISI 316Ti (A fitting, body socket, sleeve, valve, spring and ring), steel AISI 316 (balls locking). sealing: FKM. Operating temperature: od -15°C up to +200°C, depending on medium.
